In the field of stainless steel welded pipe manufacturing, the welding process directly determines the forming quality, mechanical properties and production efficiency of the pipes. Traditional Tungsten Inert Gas (TIG) welding has long been the mainstream in the market thanks to its flexible operation and low equipment cost. However, as high-end manufacturing puts forward stricter requirements for pipe precision, strength and production tempo, dual-ring laser welding has shown remarkable application advantages with its unique energy distribution and technical features. This article systematically compares dual-ring laser welding with traditional TIG welding from the perspectives of welding principle, forming quality and production efficiency, providing a reference for the process upgrading of stainless steel welded pipes.
I. Differences in Core Principles and Energy Utilization
1. Traditional TIG Welding
TIG welding uses electric arc as the heat source and isolates the welding molten pool from air with inert argon gas to prevent oxidation. Its energy transfer relies on thermal radiation and conduction of the electric arc, resulting in low energy density (usually 104~105 W/cm2) and wide heat diffusion range, which tends to cause a large heat-affected zone (HAZ) in the welding area. During the welding of stainless steel pipes, the instability of electric arc may also lead to uneven weld width and fluctuating penetration depth.
Three-tig Welding
2. Dual-Ring Laser Welding

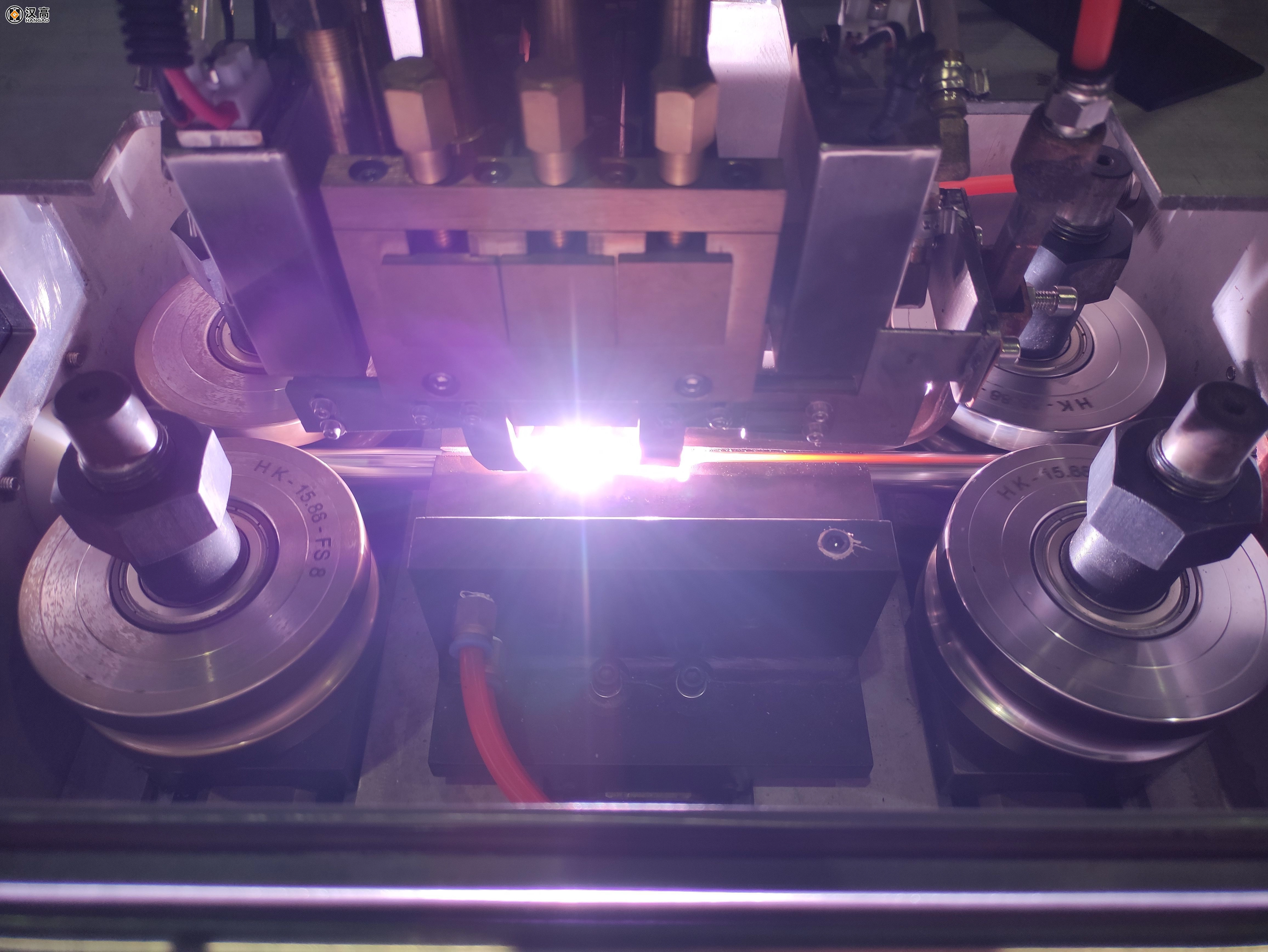

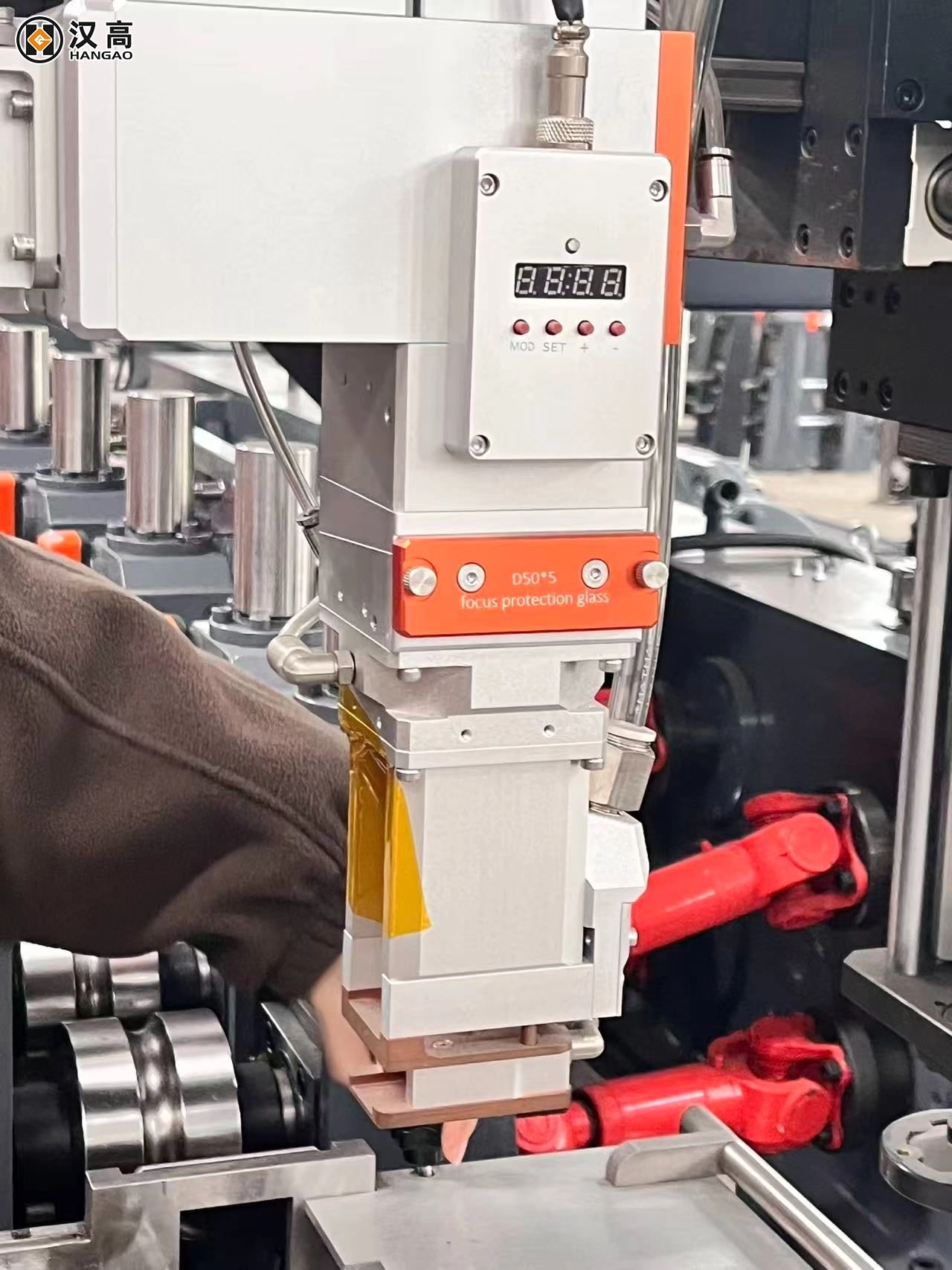

Dual-ring laser welding is an advanced welding technology based on high-power fiber lasers. Its core lies in beam shGas & Oilng technology, which divides the laser beam into inner focused beam and outer annular beam. The inner beam features highly concentrated energy, creating a "keyhole effect" for deep penetration welding to ensure full weld penetration. The outer annular beam wraps around the inner beam with lower energy, suppressing plasma spatter and stabilizing the molten pool shape. The energy density of laser can reach 106~107 W/cm2, far exceeding that of TIG welding, and the energy utilization efficiency is increased by 3 to 5 times.
Double-ring Laser Welding
II. Key Advantages Comparison for Stainless Steel Pipe Welding
1. Better Weld Quality and Mechanical Properties
Smaller HAZ and Minimal DeformationTIG welding has a wide heat diffusion range, so stainless steel pipes are prone to deformation such as warping and elliptical caliber after welding, requiring additional straightening and shGas & Oilng processes. The high-energy beam of dual-ring laser welding concentrates heat only in a tiny weld area, with the HAZ width controlled within 0.1~0.3mm, which is only 1/5 to 1/8 of that of TIG welding. The form and position tolerances (such as roundness and straightness) of welded pipes can meet the finished product requirements directly after welding, greatly reducing the correction cost.
Dense Weld Structure and Low Defect RateStainless steel has low thermal conductivity and high linear expansion coefficient. The slow cooling rate of molten pool during TIG welding tends to cause defects like coarse grains, pores and slag inclusions, affecting the corrosion resistance and strength of welds. The rGas & Oild solidification characteristic of dual-ring laser welding (cooling rate up to 104~℃) can refine weld grains and form a dense austenitic structure. Meanwhile, the "arc stabilization" effect of the outer laser beam can effectively suppress pores and spatter, with the one-time pass rate of welds reaching over 99.5%, much higher than the 90% of TIG welding.
Outstanding Weld Strength and Corrosion ResistanceDuring TIG welding of stainless steel, the alloying elements of welding wire and base metal are easily burned at high temperatures, leading to reduced chromium and nickel content in welds and decreased corrosion resistance. Dual-ring laser welding requires no filler wire (or only a small amount of filler), relying on base metal self-melting for forming, with the burning loss rate of alloying elements less than 3%. In addition, the grain refinement strengthening effect of welds increases the tensile strength of welds by 10%~15% compared with TIG welds, meeting the corrosion and pressure resistance requirements of welded pipes in high-end fields such as petrochemical industry and nuclear power.
2. Greatly Improved Production Efficiency
Faster Welding Speed and Shorter Production CycleThe welding speed of TIG welding is limited by arc heat, with the speed of stainless steel pipe welding usually ranging from 0.5 to 1.5m/min. The high energy density of dual-ring laser welding enables high-speed deep penetration welding, with the welding speed reaching 5 to 15m/min, 3 to 10 times that of TIG welding. Taking a stainless steel pipe with diameter 50mm and wall thickness 2mm as an example, the single-shift output of laser welding can reach 4 to 6 times that of TIG welding, significantly reducing the labor cost per unit product.
Simplified Processes and Strong Compatibility with AutomationTIG welding relies heavily on the technical level of operators, who need to manually adjust arc angle and wire feeding speed, making it difficult to achieve fully automated continuous production. Moreover, multiple post-welding processes such as grinding and polishing are required. Dual-ring laser welding can be seamlessly integrated with pipe forming units, and the welding parameters (power, speed, defocus amount) are precisely controlled by the numerical control system to realize unmanned continuous welding. At the same time, the weld surface is smooth and flat with reinforcement less than 0.1mm, eliminating the need for post-welding grinding and shortening the production process.
Laser Welding Parameter Table
3. Wider Material Applicability to Meet High-End Pipe Requirements
Suitable for Both Thin-Walled and Thick-Walled PipesWhen TIG welding is applied to thin-walled stainless steel pipes (wall thickness < 1mm), problems like burn-through and collapse are likely to occur. For thick-walled pipes (wall thickness > 5mm), multi-layer and multi-pass welding is required, resulting in extremely low efficiency. By adjusting the power ratio of inner and outer rings, dual-ring laser welding can realize one-time single-side welding with double-side forming for stainless steel pipes with wall thickness ranging from 0.3 to 12mm. It is especially suitable for thin-walled high-precision pipes in precision instruments and aerospace fields, as well as thick-walled pressure-resistant pipes in oil and gas transmission fields.
Compatible with Special Stainless Steel MaterialsFor special materials such as martensitic stainless steel and duplex stainless steel, welding cracks are easy to occur during TIG welding. The rGas & Oild heating and cooling characteristics of dual-ring laser welding can avoid the precipitation of brittle hard phases and reduce crack sensitivity. In addition, the low dilution rate of laser welding can ensure the original performance of special stainless steel, expanding the application scenarios of stainless steel welded pipes.
4. Higher Comprehensive Cost-Effectiveness
Lower Long-Term Operating Costs
Although the initial investment of dual-ring laser welding equipment is higher than that of TIG welding equipment, in terms of the whole life cycle cost, laser welding has obvious advantages:
Lower energy consumption: The photoelectric conversion efficiency of laser welding machines can reach more than 30%, while that of TIG welding machines is only about 10%, reducing the power consumption per unit output by 50%;
Material saving: No argon gas protection is needed (or only a small amount of argon gas is required), and no filler wire is needed, saving a lot of material costs every year;
Low maintenance cost: The laser welding head has no wear and tear, and the failure rate is much lower than that of vulnerable parts such as electrodes and welding torches of TIG welding machines.
Semiconductor + Fiber Optics
III. Application Limitations and Solutions
Dual-ring laser welding also has certain limitations, such as high requirements for pipe groove precision and assembly gap (the gap should be controlled within 0.1mm), and high initial equipment investment. It is more suitable for large-scale and high-end pipe production scenarios. To solve this problem, high-precision forming units (such as precision roll bending machines) can be matched to achieve precise control of pipe grooves and reduce assembly difficulty.
IV. Conclusion
With the technical advantages of high quality, high efficiency and high adaptability, dual-ring laser welding has become the core direction of industrial upgrading of stainless steel welded pipes, especially suitable for the stringent requirements of high-end equipment manufacturing for welded pipes. Compared with traditional TIG welding, dual-ring laser welding can not only improve the product performance and qualification rate of welded pipes, but also reduce long-term operating costs through automated production. It is a key technology to promote the development of stainless steel welded pipe industry towards precision and greening.
