Manufacturers of flexible metal components for HVAC, automotive, and petrochemical sectors often ask why their stainless steel corrugated pipe production line underperforms. The answer usually lies in fragmented equipment, inconsistent heat treatment, and process gaps that erode quality and margin.
The Pain Points You Cannot Ignore
After corrugation forming, residual stress remains in the tube wall. Without proper relief, the material turns brittle and bending produces micro-cracks. Traditional bright solution treatment machine setups rely on bulky electric furnaces that consume excessive shielding gas and yield dull, oxidized surfaces demanding extra pickling. Without real-time data per pipe, quality control becomes guesswork, while a slow pipe forming production line cannot match rising demand.
Hangao Tech's Integrated Solution

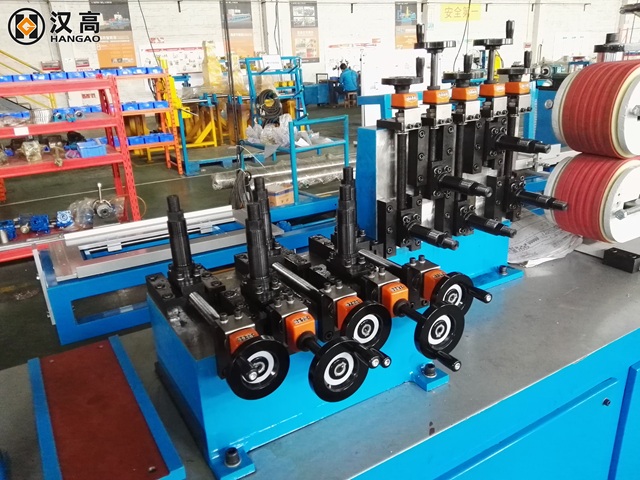

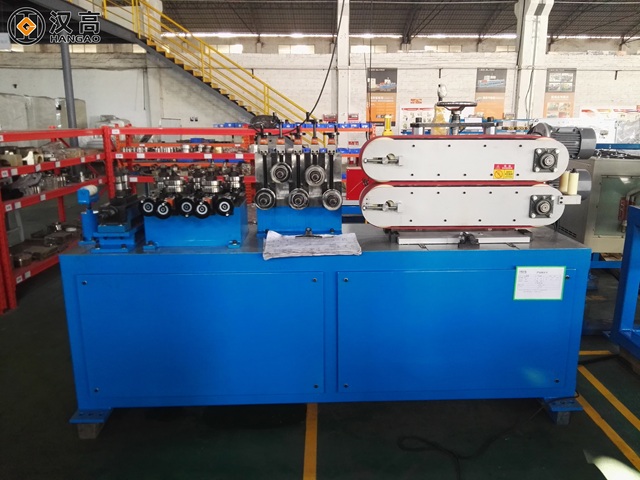

Guangdong Hangao Technology Co., Ltd. solves these challenges with a fully integrated stainless steel corrugated pipe production line spanning uncoiling, conveying, forming, welding, bright annealing, and unloading. This one-stop design removes compatibility risks of mixing machines from different vendors.

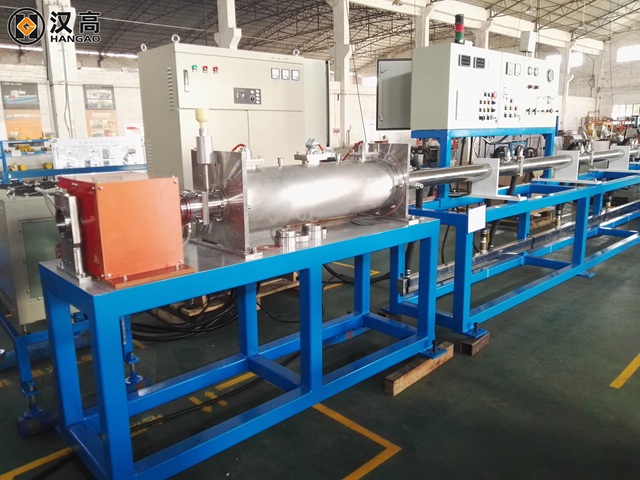

The core is DSP-controlled IGBT induction heating. It raises pipe temperature from ambient to 1050 °C in seconds, then cools below 100 °C inside a closed cooling tunnel. A protective hydrogen atmosphere prevents oxidation, yielding a mirror-bright BA surface without additional pickling. Temperature accuracy stays within ±2 °C, ensuring every meter of corrugated stainless steel tubing receives identical metallurgical treatment. Residual stress disappears, ductility returns, and the material meets ASME, ASTM, DIN, ISO, GB, and JIS standards.
The HMI touchscreen logs temperature, solution power, and current frequency for each pipe. If any parameter drifts outside tolerance, the system alarms instantly. This traceability is essential for markets where material certificates are mandatory. For buyers of Flexible metal hose production machinery, throughput is decisive. Hangao Tech achieves welding speeds of 1–8 meters per minute with full ASME weld-quality compliance. A high-traction rubber-chain drive advances ultra-long seamless coils steadily, and inline cleaning and polishing modules deliver high cleanliness straight off the line.
Technical Specifications
| Parameter | Specification |
| Welding speed | 1 – 15m/min |
| Heating method | DSP + IGBT induction heating |
| Max annealing temperature | 1050 °C |
| Temperature control accuracy | ±2 °C |
| Cooling method | Water cooling |
| Atmosphere | Hydrogen / inert gas protection |
| Power range | 60 – 160 kW |
| Control system | PLC with HMI touchscreen |
| Data recording | Real-time per pipe |
| Surface finish | Bright annealed (BA), no oxidation scale |
| Applicable materials | 304, 304L, 316, 316L, 321 stainless steel |
| Compliance | ASME, ASTM, DIN, ISO, GB, JIS |
| Operation mode | Online or offline |
A Complete stainless steel corrugated pipe production line with welding and forming from Hangao Tech outperforms fragmented setups. The compact footprint saves factory space, and the energy-efficient induction design cuts electricity use by 15–20 % compared with traditional furnace equipment.
Customer Success Story
A Southeast Asian HVAC manufacturer replaced its aging pipe forming production line with Hangao Tech's system in 2023. Previously, weld-seam cracks plagued flaring tests and surface discoloration demanded manual buffing. After commissioning, flaring pass rates exceeded 99 %, BA-grade brightness became consistent, and energy costs fell roughly 18 %. The plant now ships compliant products to European distributors without extra surface treatment.
In the Middle East, a petrochemical hose producer annealed 316L corrugated tubes up to 18 meters long. Offline furnace processing distorted profiles and created color variation. Switching to Hangao Tech's continuous online bright annealing line delivered uniform properties across the full coil, reduced gas consumption over 30 %, and doubled daily output. Automated data logging streamlined ISO audits because every record is stored by batch number.
Frequently Asked Questions
Q1: What separates a corrugated pipe line from a standard tube mill?
A standard mill produces straight welded pipe. A corrugated line adds forming rolls, corrugation dies, and integrated heat treatment to create the flexible wavy profile used in expansion joints and hoses.
Q2: Can the line process both welded and seamless materials?
Yes. The uncoiler handles coiled strip for welded tubes and pre-made seamless coils. PLC recipe management adjusts bright annealing parameters to match each material type.
Q3: How does the bright solution treatment machine prevent oxidation without vacuum?
A controlled hydrogen atmosphere inside the induction coil and cooling tunnel acts as a reducing agent, blocking oxide formation. Surface brightness rivals vacuum annealing with higher throughput and lower capital cost.
Q4: Is a Complete stainless steel corrugated pipe production line with welding and forming suitable for small batches?
Yes. Forming stands enable quick changeover. The PLC stores multiple product recipes, so switching diameters takes under 30 minutes—ideal for job shops and high-volume plants alike.
Conclusion
Selecting the right corrugated pipe production line shapes product quality and operating margin. An integrated system that unites precision pipe forming production line capability with intelligent bright annealing and real-time traceability eliminates hidden costs of rework and energy waste. Hangao Tech's stainless steel corrugated pipe production line delivers that integration, backed by proven export experience across Asia, Europe, and the Middle East. Ready to upgrade your corrugated stainless steel tubing output? Contact our team for a quotation and factory-layout proposal tailored to your targets.
