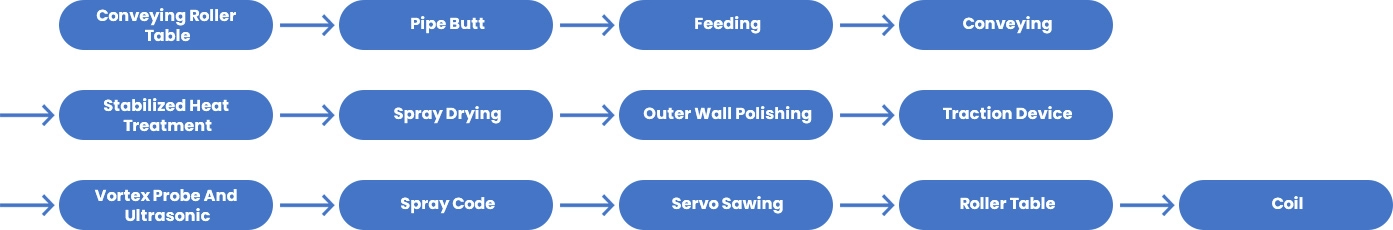

Conveying Roller Table

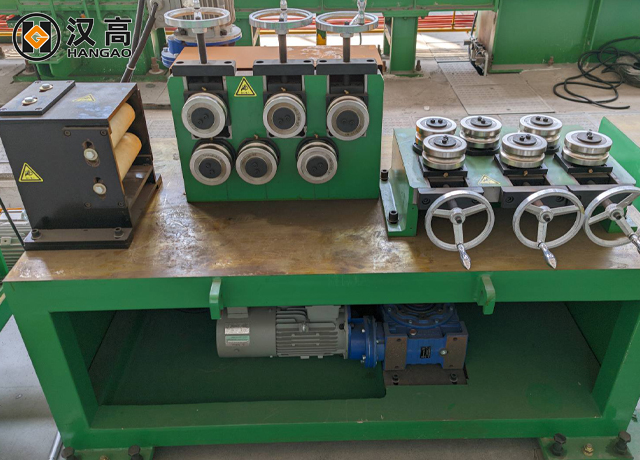

Feeding Section

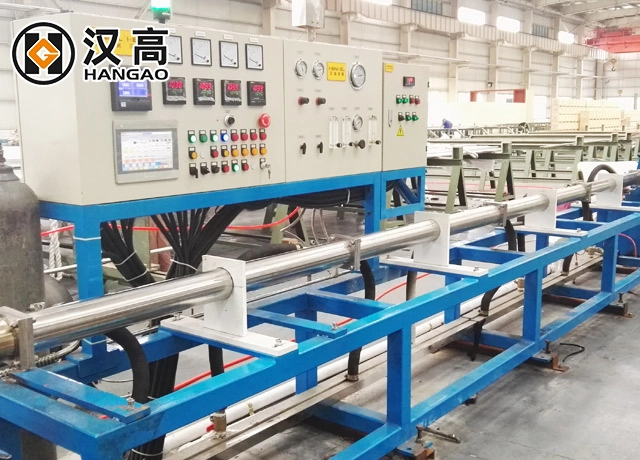

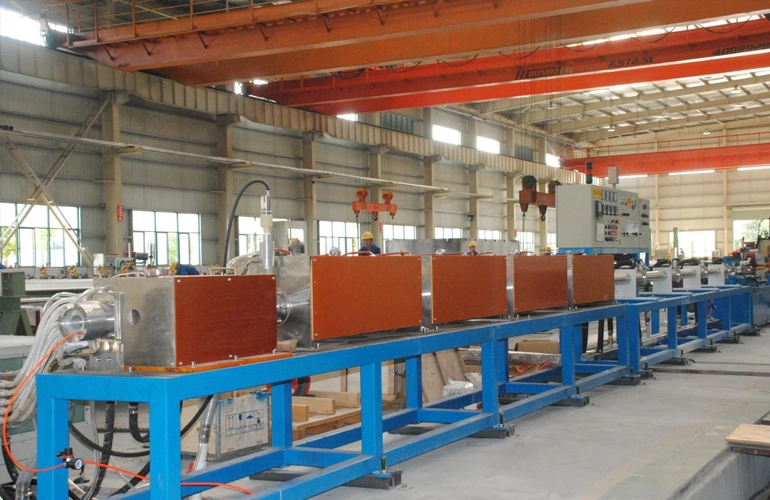

Annealing Section
Every time the finishing tube is rolled, it must go through the process of solution treatment. Ta ensure that
the performance of the steel pipe meets the technical requirements. and to provide guarantee for
the post-process processing or use. Bright solution treatment process of ultra-long seamless steel pipe has
always been a difficulty in the industry.
Traditional electric furnace equipment is large,covers a large area, has high energy consumption and
large gas consumption, so it is difficult for realize bright solution process. After years of hard work and
innovative development, the use of current advanced induction heating technology and DSP power supply.
Precision control of heating temperature to ensure that the temperature is controlled within t2C,to solve
the technical problem of inaccurate induction heating temperature control. The heated rolled steel pipe is
cooled by "heat conduction"in a special closed cooling tunnel, which greatly reduces the gas consumption
and is more environmentally friendly.
Main application areas:
1. High-precision instrument tubes/capillary tubes:
Used in pressure sensors, medical devices, chromatographs, etc. Requires extremely
high dimensional stability, inner wall smoothness, and corrosion resistance.
Materials are mostly 304 and 316L stainless steel.
2. Food/pharmaceutical grade sanitary tubes:
Used in fluid transport systems in the dairy, beer, and biopharmaceutical industries. Must ensure
absolute cleanliness, no scale formation, and easy cleaning and passivation. The main material is 316L.
3. Semiconductor and high-purity gas delivery tubes:
Used for transporting special gases in integrated circuit manufacturing. Requires ultra-high inner surface
finish (EP grade, BA grade), no particle precipitation, and non-magnetic properties.
The material is 316L VAR (vacuum remelted) or higher-grade stainless steel.
4. Precision tubes for aerospace applications:
Used in aircraft hydraulic systems, engine pipelines, etc. Materials include stainless steel, titanium alloys
(such as TC4), and high-temperature alloys. Requires high strength, lightweight design, and high reliability.
5. Tubes for nuclear power applications:
Used in nuclear power plant instrument tubes, heat exchanger tubes, etc. Requires extremely
high corrosion resistance, stress corrosion cracking resistance, and purity.
6. High-grade decorative and architectural structural tubes:
Used in high-end building curtain walls, luxury goods display racks, etc. Requires perfect surface gloss and
consistency.
High Cleanliness
With bright annealing, pipe cleaning, and pipe polishing.

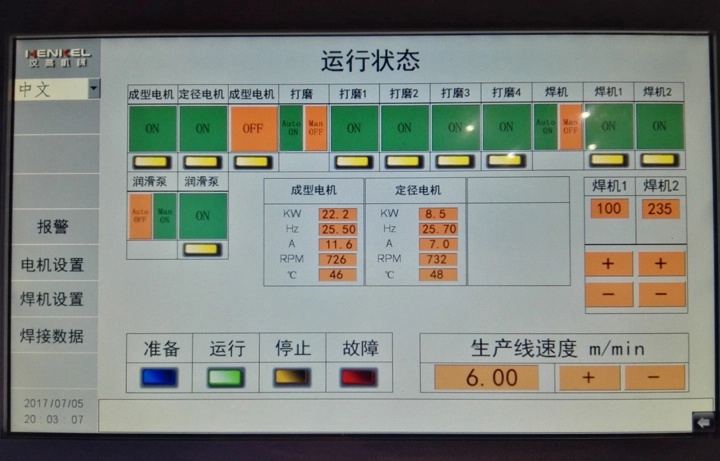

Real Time Recording
Traceable temperature, solution power, and current frequency of each steel pipe.
High Speed
Ensure that the quality of the welded pipe meets ASME standards, with a speed of up to 1~8m/min.
High Yield
The yield can reach over 98%.
Upper Computer Communication
Connecting the upstream rolling mill to achieve ultra long pipes.
The World'S First

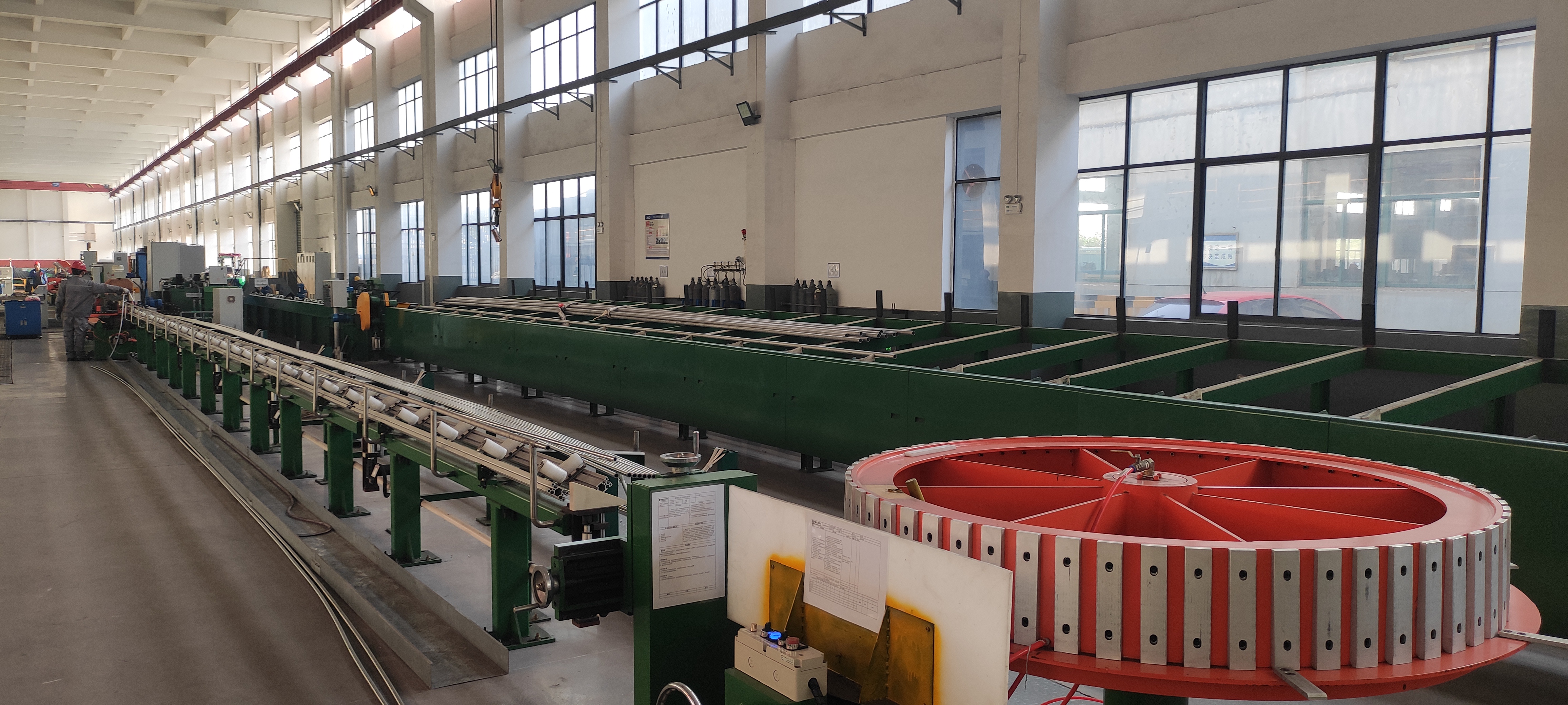

The bright solution production line of finishing rolled pipe has the remarkable characteristics of small area, low energy consumption, no need for preheating and stop with start.At the same time, it can also work on line with rolling mill to meet the requirements of bright heat treatment process of ultra-long pipe.
| Material | 304L/N/LN, 316L, 317L, and other 300 series stainless steel, 2205 dual phase steel, and nickel based alloys. |
| Outer diameter | Φ6~25mm |
| Wall thickness | 0.5~2.0mm |
| Heat-treatment temperature | 1050~1150℃ |
| Speed | 1~5m/min |
| Temperature Accuracy | ±2℃ |
| Pipe length | 30~101m |
About us
Established: 2020
Core Expertise: Over 20 years of experience in welded pipe equipment.
Factory Size: Over 20,000 square meters of modern production base and warehouse.
Technical Team: Equipped with over 20 professional technicians dedicated to R&D and innovation.
Core Products: Precision welded pipe production lines, welding leveling equipment, bright solution equipment,
weld seam tracking systems, intelligent control systems, finishing rolling pipe bright solution equipment,
rotary annealing equipment, etc.
R&D Strength: Holds over 30 national patents and continuously obtains new patent authorizations.
Certifications: National high-tech enterprise, certified with ISO9001 quality management system, ensuring quality
throughout the entire process from design to service.
Partners: Our relentless pursuit of excellence has earned the trust of numerous industry-leading companies, including Juli, Wujin, Sanhua, Plymouth (USA), and Binner (India).
Market Coverage: Our products are sold globally, exported to numerous countries and regions in addition to China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.
