Stainless Steel Coil Pipe Making Machine

  • Hangao
  • Yunfu, Guangdong
  • 60-90 work days
  • 20 sets per year
Discover​‍​‌‍​‍‌​‍​‌‍​‍‌ the various uses of the Hangao Stainless Steel Coil Tube Production Line. Whether for general industrial applications or for the production of very specialized products, our production line assures the smooth manufacturing of top-notch stainless steel coil tubes. Being accurate is our promise. Hangao can be relied on as a partner in achieving different industry requirements with great ​‍​‌‍​‍‌​‍​‌‍​‍‌results.


coiled line pipe

Work Production Line

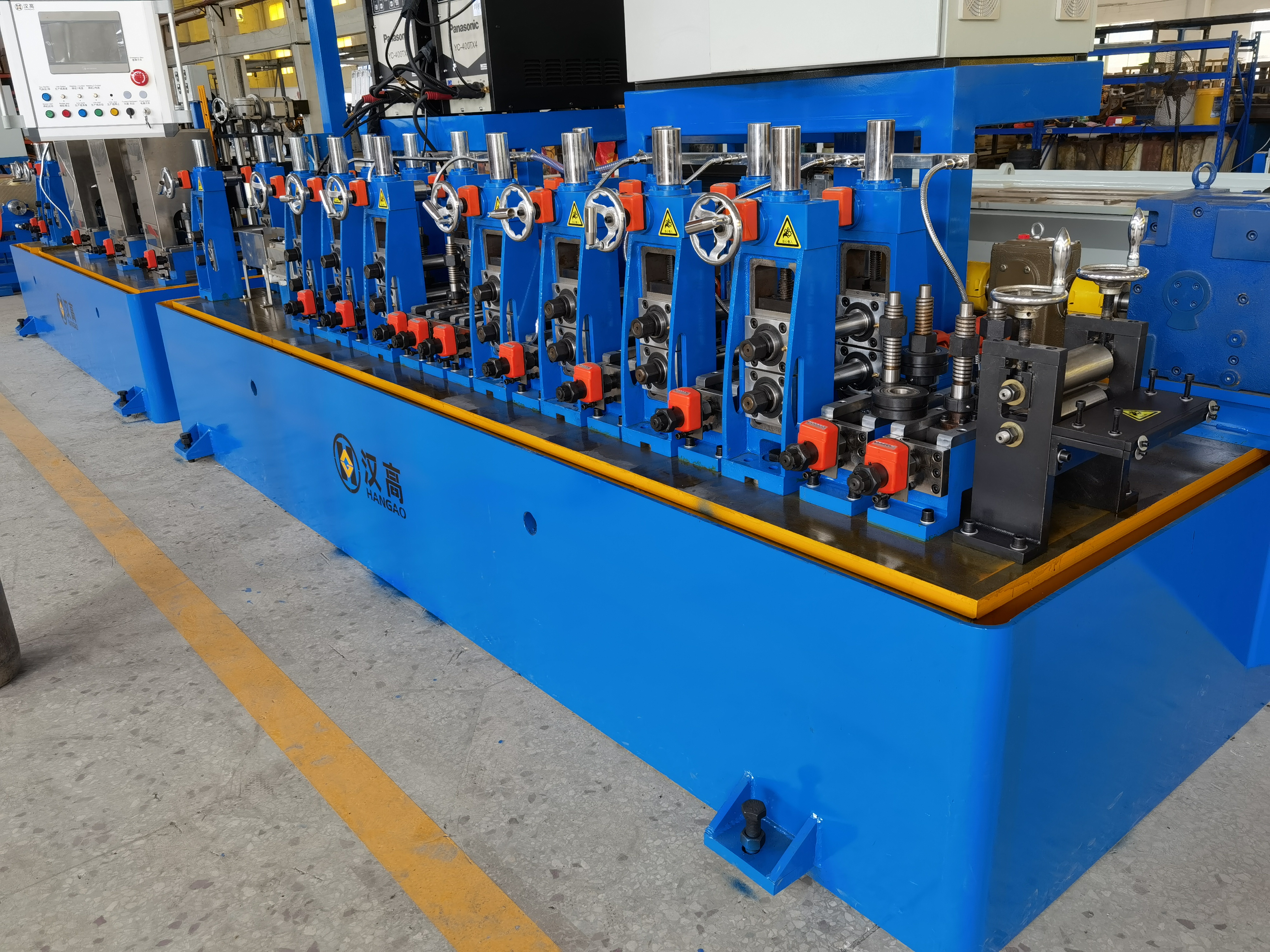

Stainless steel pipe making machine

Work Production Line

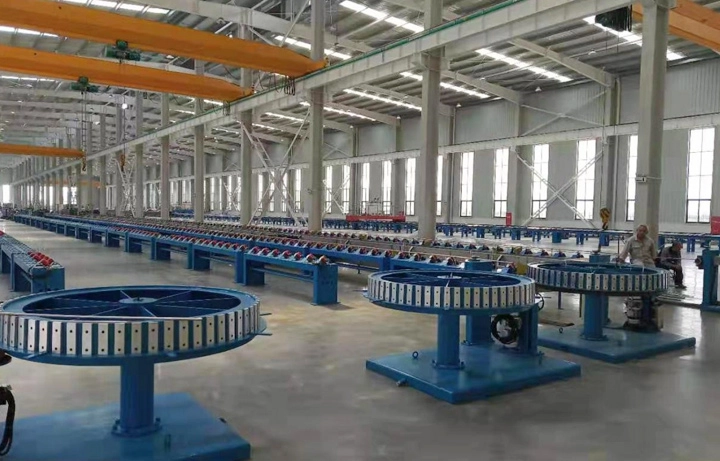

stainless coil tubing

Work Production Line

The stainless‍‌‍‍‌‍‌‍‍‌ steel coil production line is a high-performance and high-output production line for high-quality long stainless steel welded tubes. It is widely used ‍‌‍‍‌‍‌‍‍‌for:


1. Architectural Decoration and Structural Industry:


Decorative‍‌‍‍‌‍‌‍‍‌ tubes:Apart from polishing, stainless steel round and rectangular tubes for stair railings, guardrails, and door

and window frames, furniture, etc., are made of finishing the surface (such as brushing or mirror finishing).


Structural tubes:These are the tubes used for light building structures, display racks, shelves, ‍‌‍‍‌‍‌‍‍‌etc.


2. Fluid Transportation Systems:


General‍‌‍‍‌‍‌‍‍‌ fluid pipes: these are low-pressure pipelines that carry water, gas, and other media.


Sanitary pipes: mainly utilized in sectors that require a very high level of cleanliness, like food, drinks, pharmaceuticals,

and bioengineering. The production line generally is required to have certain standards of inner surface ‍‌‍‍‌‍‌‍‍‌treatment.


3. Machinery Manufacturing and Automotive Industry:


Hydraulic/pneumatic‍‌‍‍‌‍‌‍‍‌ cylinders, transmission shaft sleeves, exhaust pipe components, and frames and support tubes for various mechanical equipment are some of the products where these materials have been ‍‌‍‍‌‍‌‍‍‌used.


4. Home Appliances and Daily Products:


Manufacturing‍‌‍‍‌‍‌‍‍‌ inlet and outlet pipes along with structural frames for home appliances like washing machines, refrigerators, and water heaters, additionally, making pipes for sanitary ware and ‍‌‍‍‌‍‌‍‍‌kitchenware.


5. Special Purpose Tubes:


Adjusting‍‌‍‍‌‍‌‍‍‌ the molds and the processes will allow it to make irregularly shaped tubes, embossed tubes,

threaded tubes, and so ‍‌‍‍‌‍‌‍‍‌on.


TypeMaterialWelding typeO.D.
(mm)
Thickness (mm)Motor Power (KW)Size(L*W*H)(m)
HZG-PG-30SSTTIG6-160.4-1.55.5Customized
HZG-PG-40SSTTIG16-50.80.5-2.57.5Customized
HZG-PG-50SSTTIG25.4-760.5-3.011Customized
HZG-PG-60SSTTIG/Plasma50.8-1141.0-4.015Customized
HZG-PG-80SSTTIG/Plasma89-1681.0-5.018.5Customized
HZG-PG-100SSTTIG/Plasma114-2192.0-8.030Customized
HZG-PG-120SSTTIG/Plasma168-3253.0-10.037Customized


The‍‌‍‍‌‍‌‍‍‌ unique features of the stainless steel coil tubing production line include:


High-speed production, up to 15m/min:

Advanced high-speed production capability is a key feature of this production line, ensuring large-scale, efficient production to meet the market's demand for high-quality, high-speed stainless steel tubing.




Clean production environment, certified for safe production:

Employing energy-saving and environmentally friendly production methods, the line continuously maintains a clean production environment, ensuring the production of high-quality stainless steel coils.

coiled line pipe




Reliable roll design, segmented deformation forming:

The robust roll structure design ensures the stability and continuity of the forming section, enhancing rigidity and minimizing cumulative errors, thereby ensuring precision and producing stainless steel tubing products in specifications such as 40/60/80/100mm.

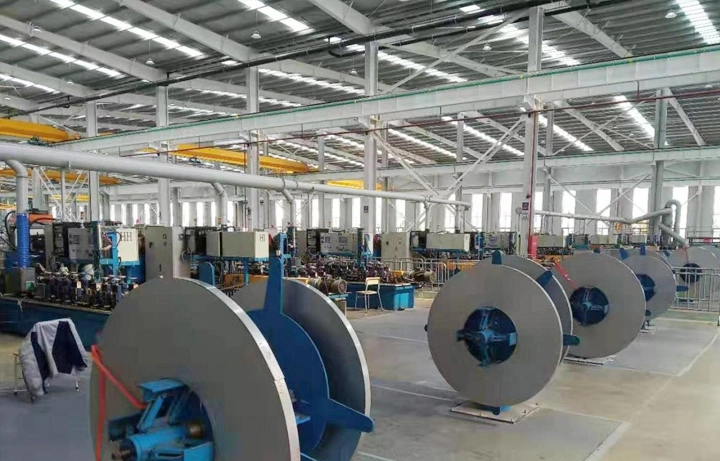

Stainless steel pipe making machine



Advanced tubing manufacturing technology, yield exceeding 97%:

Utilizing a unique W-forming tubing manufacturing technology, the line guarantees high precision and superior quality of stainless steel coil products.




Flexible structure and gas/oil volume adjustment, real-time production status monitoring:

The flexible structural design allows for rapid adjustment to accommodate the production of coils ranging from 40-120mm and various coil types, including round, square, and U-shaped coils, thus adapting to market changes in round, square, and U-shaped coils.

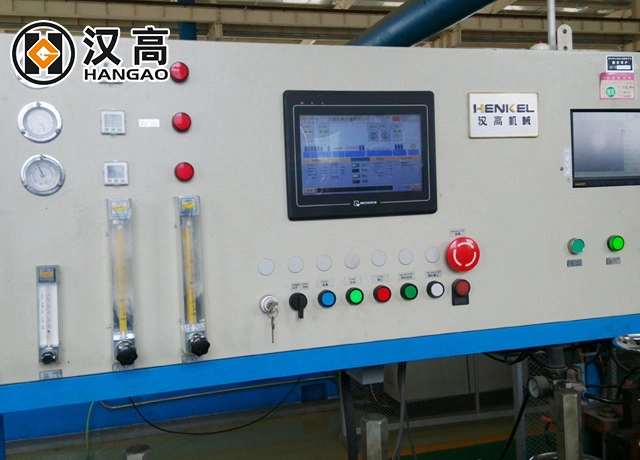

Intelligent production line control system for digital production:

The factory's production lines are equipped with intelligent automated control systems that enable highly automated monitoring and adjustment of the production process, tracing parameters such as welding current, power, and frequency for each steel pipe.



Precise and reliable quality, conforming to ISO quality standards:

The coils produced by Hangao's coil production lines meet extremely stringent ASTM and ISO quality standards, ensuring product reliability and stable performance.

stainless coil tubing

ConditionNew
TheoryInverter
ApplicationIndustry
TypeStainless steel coil pipe production line
Scope of ApplicationStainless steel coil pipe
O.D. Range6-325 mm
Thickness0.38-10.0 mm
Control TypePLC
CertificationISO9001
Power(W)0
Voltage380V 50Hz
Power Supply415V/3pH
Dimension(L*W*H)Customized
Weight5-15t
Lead Time60-90 Days
Transport PackageWaterproof Film and Pallets
Production Capacity20 Sets Per Year, 1-15 M/Min
Package SizeCustomized
Package Gross Weight25000.000kg


Company Advantages

Established:‍‌‍‍‌‍‌‍‍‌ 2020

Core Expertise: More than 20 years of experience in the welded pipe equipment industry.

Factory Size: Over 20,000 square meters of modern production base and warehouse.

Technical Team: More than 20 professional technicians are focusing on R&D and innovation.

Core Products: Precision-welded pipe manufacturing lines, welding leveling machines, bright solution equipment, weld seam tracking systems, intelligent control systems, finishing rolling pipe bright solution equipment, rotary annealing equipment, etc.

R&D Strength: Has more than 30 national patents and is constantly receiving new patent authorizations.

Certifications:

National high-tech enterprise has been certified with the ISO9001 quality management system, which guarantees the quality of the whole process from design to service.

Partners: Our unwavering pursuit of excellence has earned the trust of numerous industry leaders, including Juli, Wujin, Sanhua, Plymouth (USA), and Penna (India).

Market Coverage: Our products are sold globally, exported to numerous countries and regions besides China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.


FAQ

Q1: What equipment is typically included in a stainless steel tube mill production line?

A1:A complete precision tube mill line usually includes: uncoiler → forming & welding section → weld bead rolling → weld grinding → initial sizing → bright annealing → final sizing & straightening → cutting machine → discharge table. As a one-stop industrial tube equipment service provider, Hangao Tech offers turnkey solutions from single machines to complete plants, featuring intelligent high-precision PLC control with user-friendly HMI.


Q2: Can tube mills produce special-shaped tubes?

A2:Yes. Besides round tubes, square, rectangular, and various special-shaped tubes can be produced by changing molds. Hangao Tech's production lines feature modular design with easy specification switching, ideal for flexible multi-variety, small-batch production. Our molds are renowned for long service life.


Q3:What is the function of bright annealing (solution treatment) equipment?

A3:Bright annealing eliminates welding stress, restores corrosion resistance, and improves mechanical properties. Hangao Tech's intelligent insulated bright annealing equipment maintains temperature accuracy within ±2℃ in the soaking zone for superior heat treatment. We offer online/offline, rotary, and induction-type bright annealing solutions.


Q4:Is secondary straightening needed after bright annealing?

A4:Hangao Tech's industry-leading rotary annealing lines require no secondary straightening after annealing, directly ensuring tube straightness and significantly improving efficiency. Conventional annealing often requires additional straightening, increasing equipment and labor costs.


Q5:  How is intelligent control implemented in the production line?

A5: Hangao Tech is an industry pioneer in IoT system applications. Our lines use intelligent high-precision PLC control with HMI interfaces for easy operation. We also offer smart digital factory upgrades through data collection and remote monitoring to improve efficiency, quality, and technical support responsiveness.
