Argon arc welding and laser welding pipe production lines, and seamless pipe fabrication lines using piercing hot rolling, represent two completely different technological routes in metal pipe forming. Many newcomers to the industry are often confused: the former doesn't involve the complex process of drilling solid steel billets into hollow tubes, so why is the overall investment often higher?
Let's think of these two production lines as two different restaurants. A seamless pipe fabrication line is like a small workshop that starts by growing wheat and making bread; although the process is long, the equipment is relatively simple. A piercing pipe production line, on the other hand, is like a boutique bakery that requires precise control of oven temperature, humidity, and time; each step demands near-obsessive precision. Next, we'll break down the cost logic from six dimensions.
1、Fundamental Differences in Manufacturing Logic

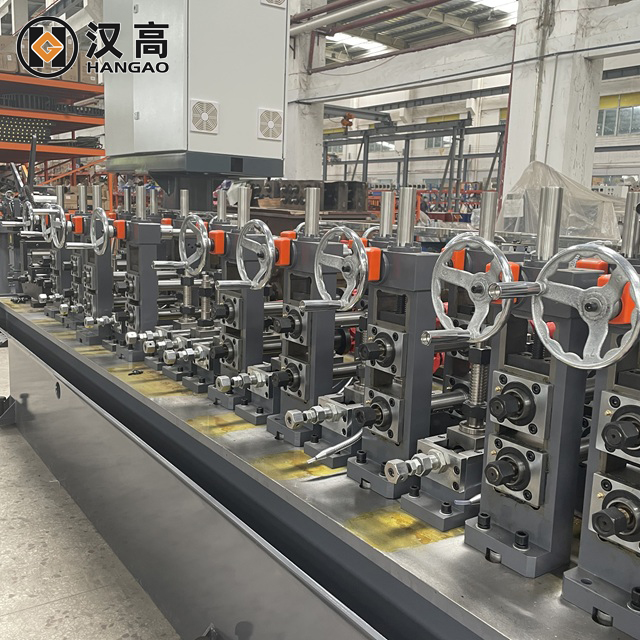

Traditional seamless pipe production is more like a "rough" heat treatment process, typically using a piercing machine to forcibly "poke" open solid round steel. While this process solves the "seamless" problem, it has weaker control over the uniformity of pipe wall thickness, and the initial equipment has a relatively primitive and cumbersome mechanical structure.
In contrast, TIG welding or laser welding lines begin with the processing of precision cold-rolled steel strips. This means the production line must possess extremely high coiling and forming capabilities to ensure that the steel strip edges achieve perfect physical alignment and tight fit before welding.
This physical deformation process from "strip" to "pipe" requires the collaborative work of multiple sets of high-precision forming dies. The rigidity requirements of the entire machine frame and the stability of power transmission are far beyond what ordinary piercing equipment can match.
【Triple cathode welding + electromagnetic control system】
2、 The Technological Premium of the Core Welding System

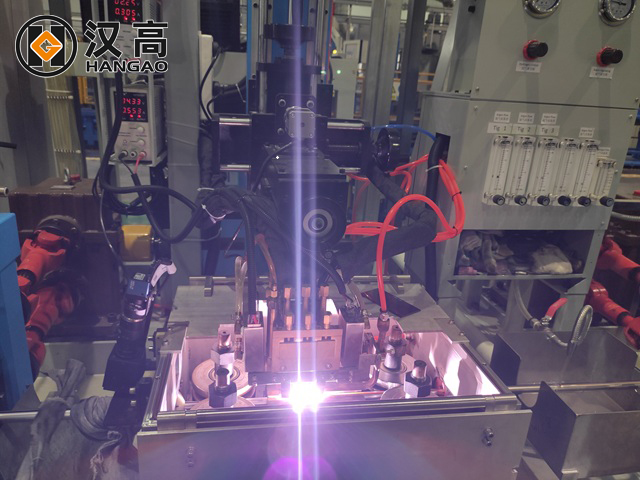

The core of a TIG welding line lies in its extremely stable welding power supply and control system. To ensure that the weld microstructure closely resembles the base material, the welding torch's movement trajectory and current stability must be accurate to the millisecond level.
Laser welding pipe production lines are even more expensive because they incorporate high-power fiber laser generators. The purchase price of a single industrial-grade laser is often enough to buy a mid-to-low-end seamless pipe production line.
These high-end welding technologies not only require the equipment to "weld" effectively, but also demand that the weld bead be free of porosity, cracks, or oxidation at the microscopic level. This stringent control over extreme welding environments is the core reason for the equipment's high price.
3、A Game-changer in Precision and Consistency
Seamless pipe production suffers from wall thickness deviation (eccentricity) due to uneven heating during the manufacturing process, a persistent problem in the industry. Welded pipe production lines, however, use cold-rolled steel strips of uniform thickness as raw material, resulting in wall thickness precision almost equivalent to the tolerance of the steel strip itself.
To maintain this inherent precision advantage, welded pipe production lines require expensive online monitoring systems. These sensors scan the roundness, straightness, and welding quality of the pipe in real time, triggering automatic compensation mechanisms for even the slightest deviation.
This "automated closed-loop control" requires numerous servo motors and PLC programming support. The equipment is no longer just a mechanical stack, but a highly integrated intelligent terminal with hardware and software; the R&D investment is naturally reflected in the price.

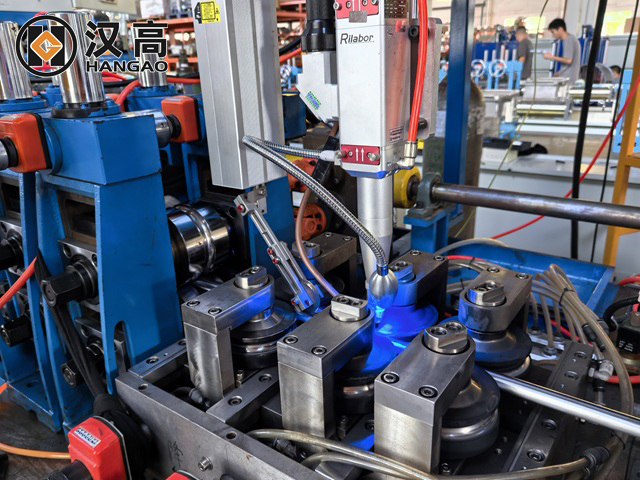

【Laser welding】
4、 Complex Surface and Post-treatment Processes
Seamless pipes typically have rough surfaces after welding, sometimes even with oxide scale, requiring extensive pickling and polishing. High-end argon arc welding/laser welding lines, however, aim for "finished products upon delivery," and their integrated online weld seam smoothing technology is extremely complex.
To eliminate weld excess, the equipment uses precise internal mandrels or rolling techniques to fuse the weld seam with the base material. This micron-level extrusion process, achieved at high speed, poses significant challenges to the equipment's wear resistance and mechanical structure.
Furthermore, high-end production lines are equipped with bright online annealing equipment. This equipment can instantly heat the pipe to over 1000 degrees Celsius under inert gas protection and then rapidly cool it, restoring the pipe to good processing properties.
5、 Trade-off Between Material Utilization and Production Efficiency
Although the production line itself is expensive, it achieves near-maximum utilization of raw materials. The welded pipe process generates very little waste, and the continuous operation capability of the production line allows its output per unit time to far exceed that of seamless pipe processing equipment that processes only one piece.
Thanks to highly automated feeding and cutting systems, an entire production line, often tens of meters long, typically requires only one worker. This extremely low reliance on manual labor and exceptionally high yield rate are key to the success of precision welded pipe lines in the high-end market.
For manufacturers, purchasing expensive equipment is about achieving lower operating costs and better product consistency. This financial logic of "high investment, low variable costs" is a common choice for established manufacturing companies.
6、Meeting the Needs of Extreme Applications
Why do the aerospace, semiconductor, and precision medical industries prefer high-end welded pipes? Because these industries have extremely high requirements for the cleanliness and smoothness of the pipe's internal surface. Laser-welded pipes can provide near-perfect internal surface smoothness, a physical limit that seamless pipe piercing processes can never achieve.
To meet the entry barriers of these industries, production lines must incorporate vacuum protection systems or high-purity inert gas circulation systems. These auxiliary systems, added to cope with extreme operating conditions, further increase the overall cost of the line.
This also explains why, for the same pipe diameter, the complexity of welded pipe equipment is an order of magnitude higher. It uses an extremely complex mechanical process to achieve an extremely simple finished product quality assurance.
Summary: Why are argon arc welding and laser welding pipe production lines still the better choice?
Although the initial investment and operating costs of this type of fusion-welded pipe production route are higher, the value it brings far outweighs the investment from the perspective of product competitiveness and market returns. First, this process can produce pipes with extremely high dimensional accuracy, excellent internal and external surface finish, and outstanding wall thickness uniformity, with an appearance quality directly comparable to cold-drawn seamless pipes, giving it a natural advantage in high-end fields such as food, pharmaceuticals, precision instruments, and building decoration. Second, the production line uses steel strip as raw material, resulting in a much higher material utilization rate than piercing and rolling, and flexible specification switching, enabling rapid response to small-batch, multi-variety customized orders and significantly shortening delivery cycles. Furthermore, the weld seam has high purity after inert gas protection, and combined with online heat treatment, its mechanical properties and corrosion resistance fully meet the requirements of demanding conditions such as medium and low-pressure fluid transportation and heat exchanger tube bundles.
Finally, with the continuous iteration of laser welding technology, welding speed is constantly improving, energy consumption is gradually being optimized, and the economics throughout the entire life cycle are rapidly improving. For customers who pursue high quality, fast delivery, and flexible manufacturing, argon arc welding and laser welding pipe production lines are undoubtedly a more forward-looking strategic investment.
