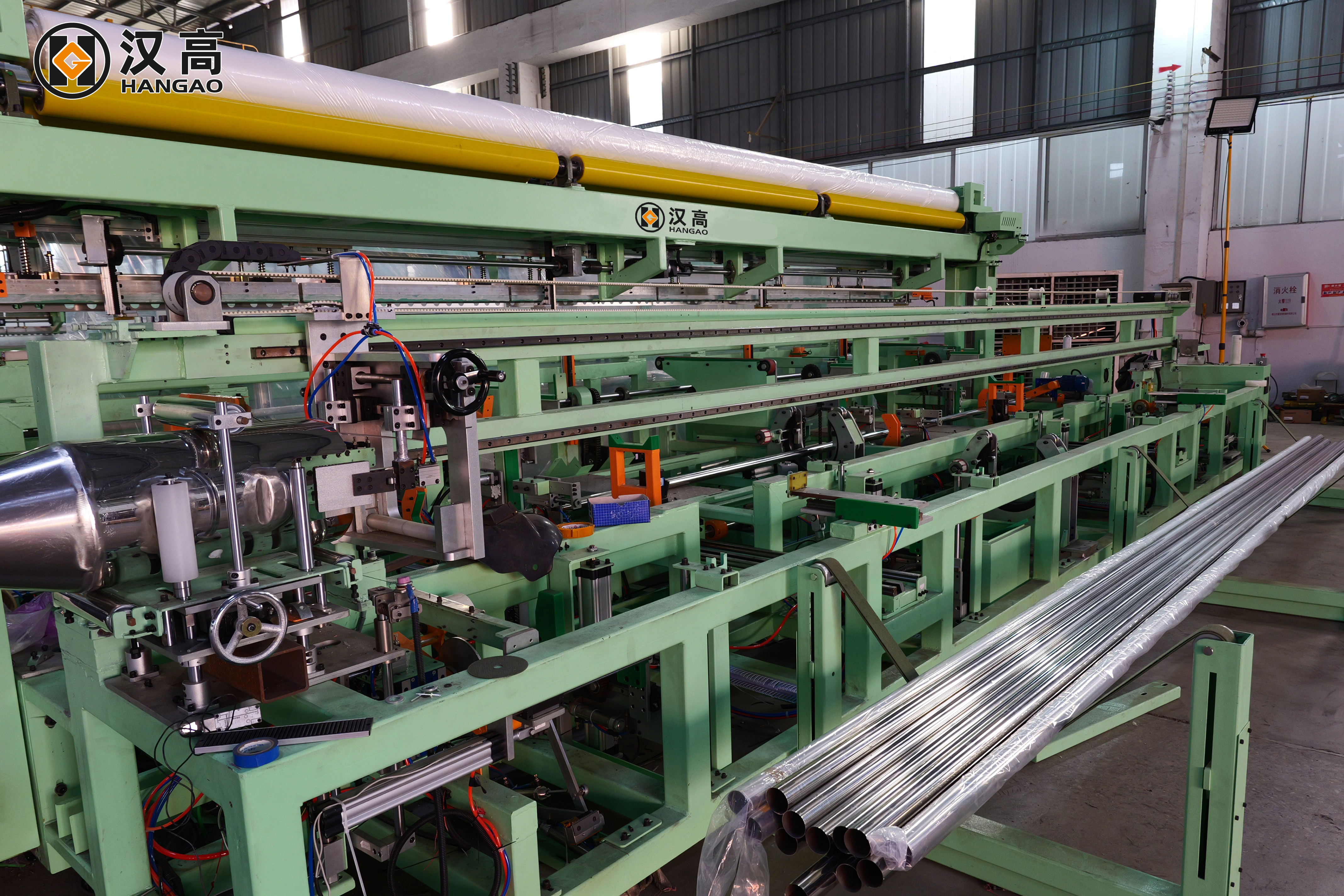

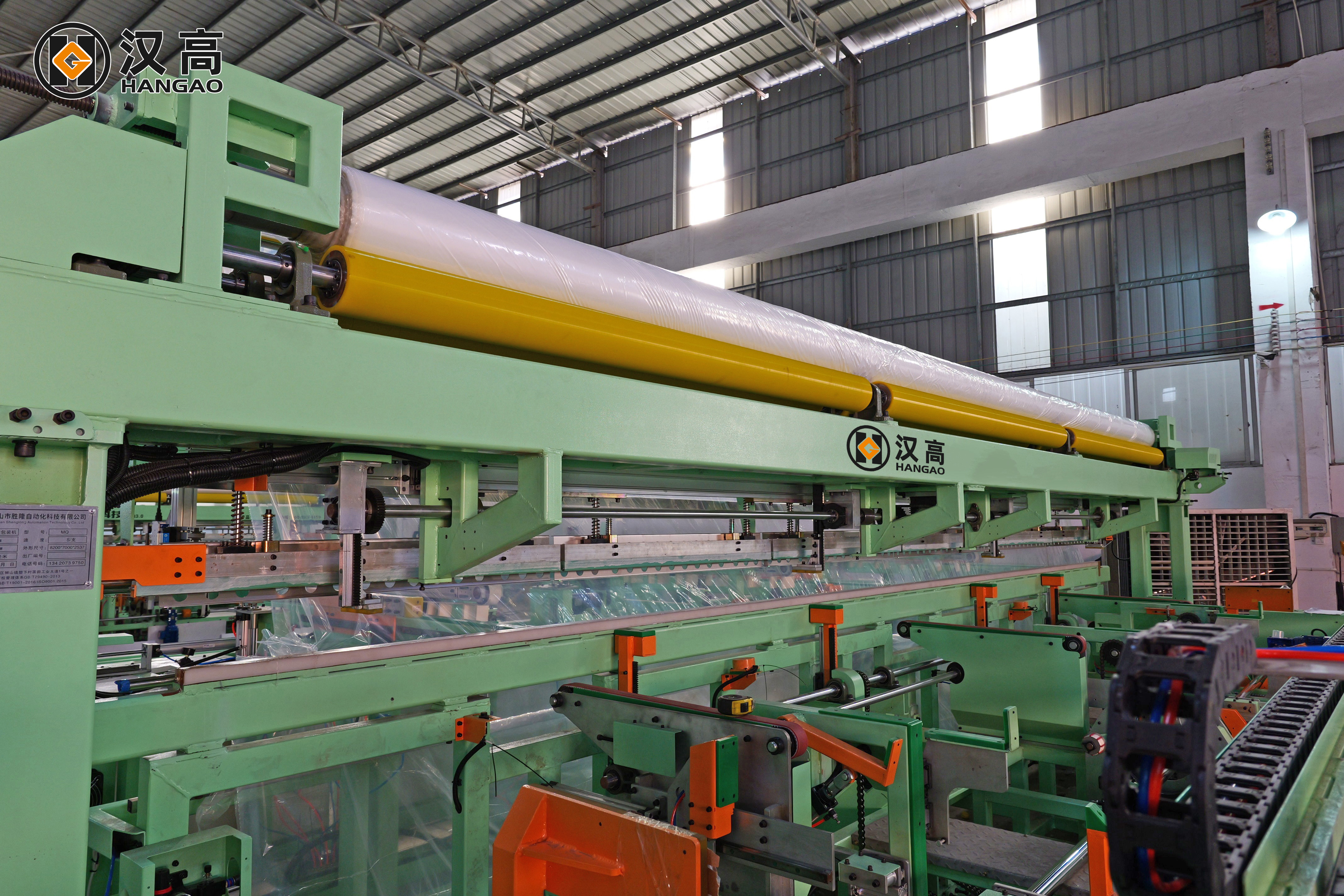

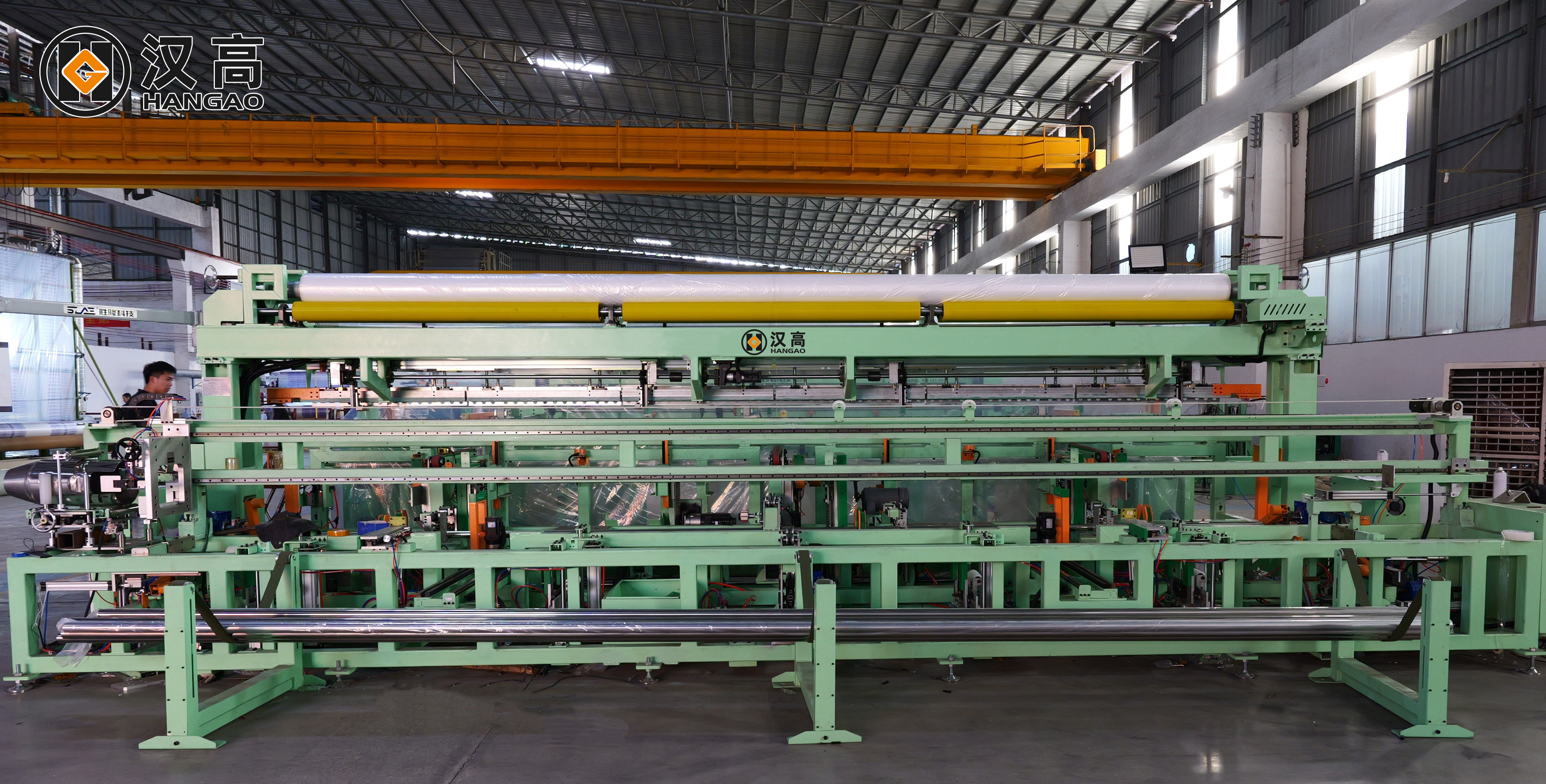

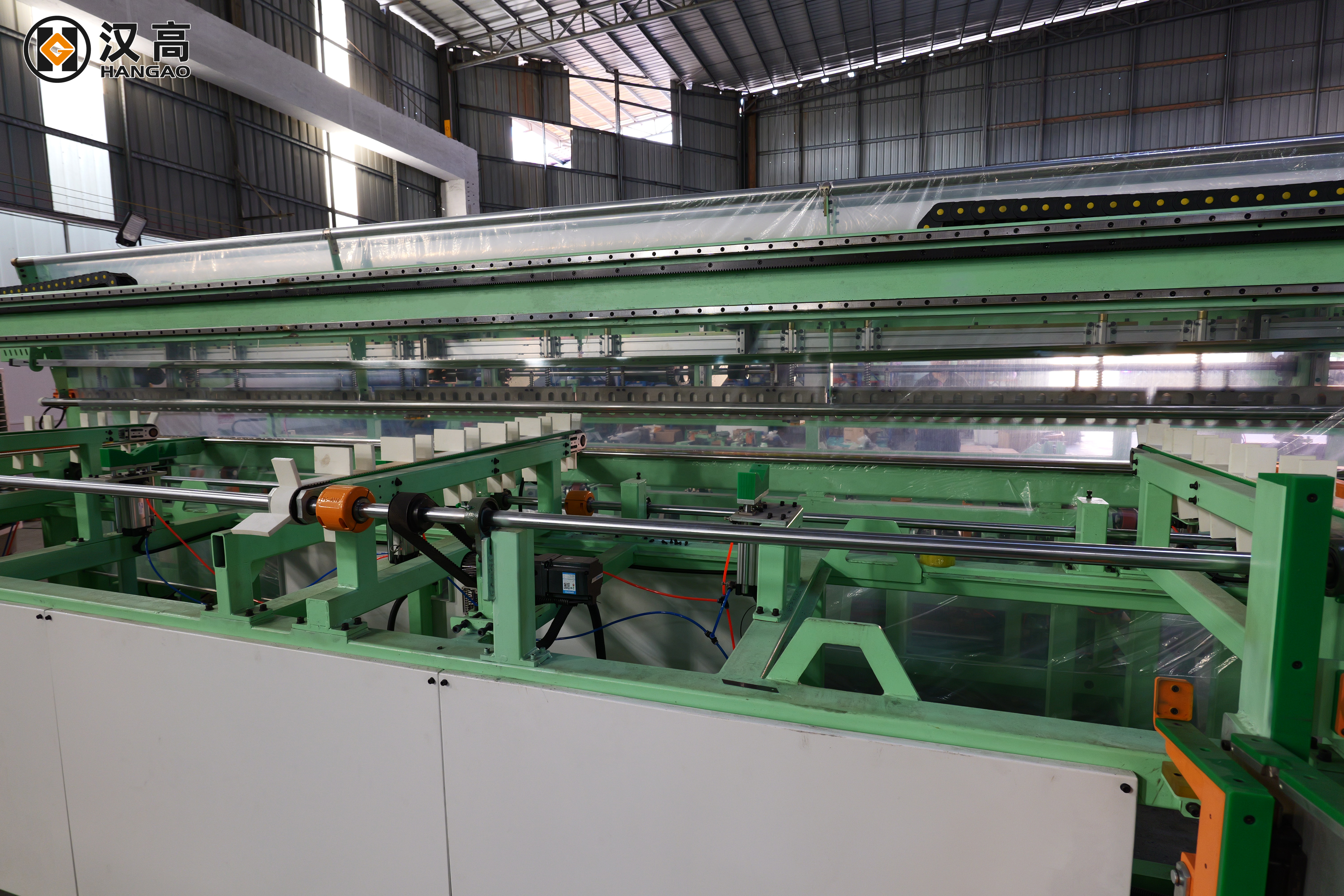

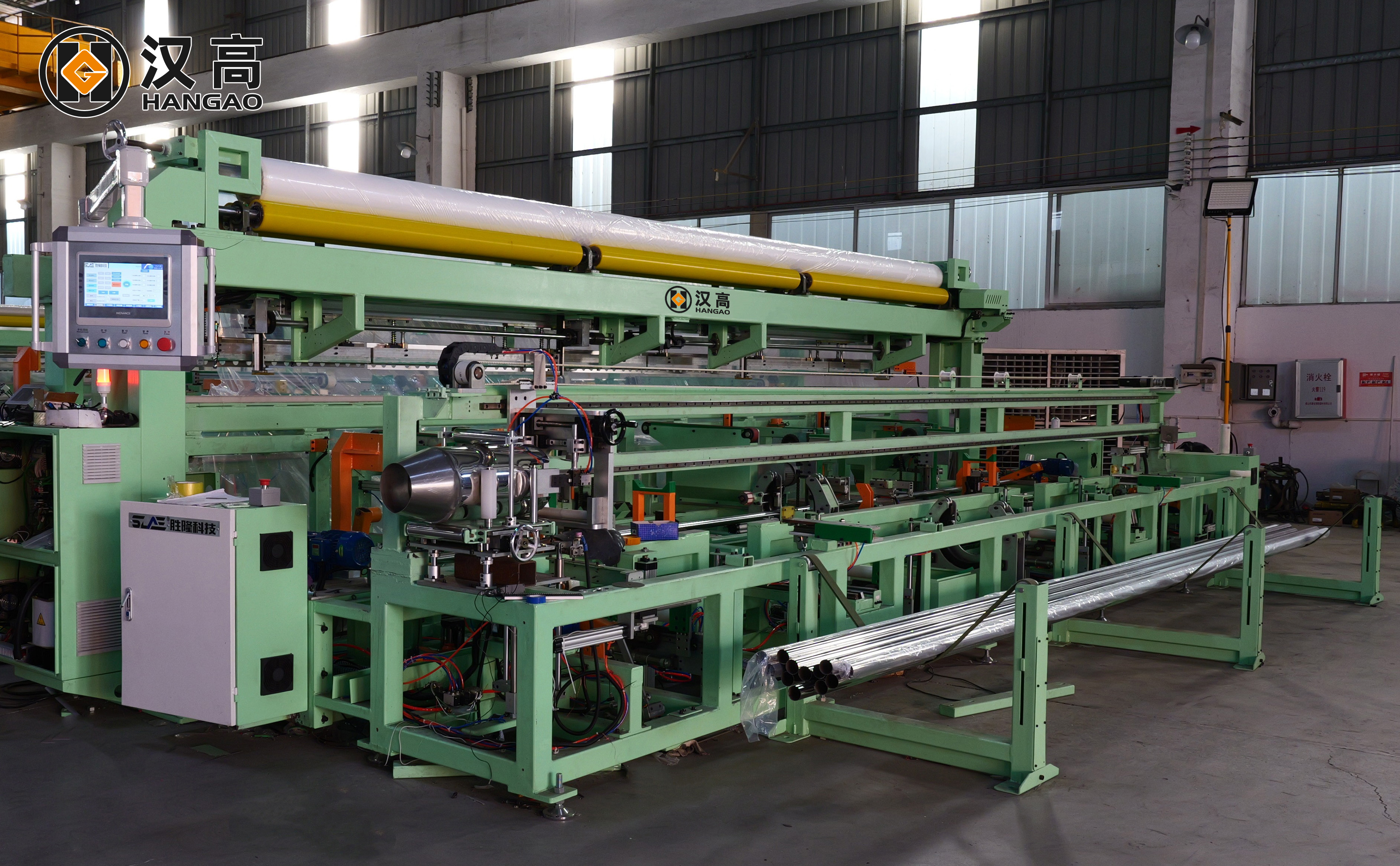

Fully Automatic Tube Bagging Machine

Fully Automatic Tube Bagging Machine

Automatic packaging equipment is the core equipment at the end of a modern pipe production line, designed to achieve fast, neat, and safe automated packaging of pipes of different materials (such as stainless steel pipes, aluminum pipes, and carbon steel pipes) and specifications (such as round, square, and rectangular).

Main applications include:

Steel Industry:

Welded steel pipes: water and gas transmission pipes, structural pipes, oil casing, line pipes, etc.

Seamless steel pipes: boiler tubes, hydraulic support pipes, machining pipes, etc.

Building Materials and Plastics Industry:

PVC-U/PVC-C pipes: building water supply and drainage pipes, electrical conduits.

PE/PPR/PERT pipes: municipal water supply pipes, underfloor heating pipes, gas pipes.

Composite pipes: aluminum-plastic composite pipes, steel-plastic composite pipes, etc.

Non-ferrous Metals Industry:

Copper pipes, aluminum pipes, etc.

Product Components:

A）The whole machine consists of three parts

(1) feeding unit*1pc

(2) stacking and shaping unit*1pc

(3) the manual pipe loading unit*1pc

B）The workflow is as follows:

(1) divides the material and pushes it into the shaping unit;

(2) stacks it neatly layer by layer. After the manual installs the PE tape inside, the machine automatically moves it out, and finally the manual lifts away the finished product

Product Features:

① One membrane for all applications, no need for matching tubing, convenient and easy to manage；

② Fast specification conversion, simply select and input the tubing specifications to be packaged, and the process is fully automated within 60 seconds;

③ High production efficiency, average speed 5-10 seconds per piece (may vary depending on size);

④ Fast sealing and cutting speed, membrane sealing and cutting completed in 0.8-1.5 seconds (due to temperature differences in different regions); The touchscreen uses the Huichuan brand, with a simple, convenient, and easy-to-understand interface;

⑤ The touchscreen uses the Huichuan brand and features a simple, convenient, and easy-to-understand user interface.

⑥ Any malfunction will trigger a corresponding automatic alarm and reset prompt;

⑦ All moving parts of the equipment use high-quality linear guides, ensuring precision and durability;

Product Details:

Fully automatic tube packing machines are a key component for modern pipe manufacturing enterprises to achieve "intelligent manufacturing" and "cost reduction and efficiency improvement." They are not merely simple end-of-line packaging equipment, but a systematic solution that enhances production line continuity, ensures the final appearance quality of products, optimizes logistics efficiency, and significantly reduces overall operating costs.
