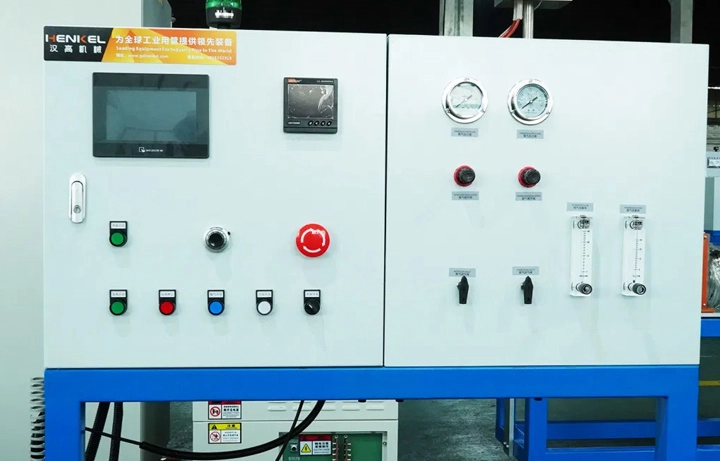

Water Pressure /Atmosphere pressure monitoring

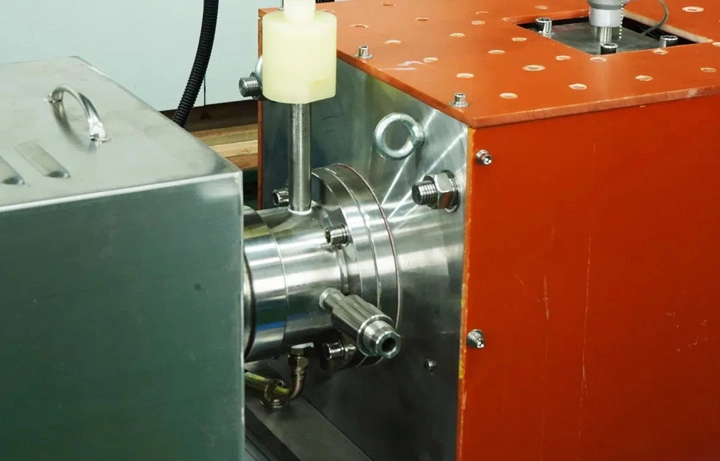

Excellent Designed Air sealing spare parts

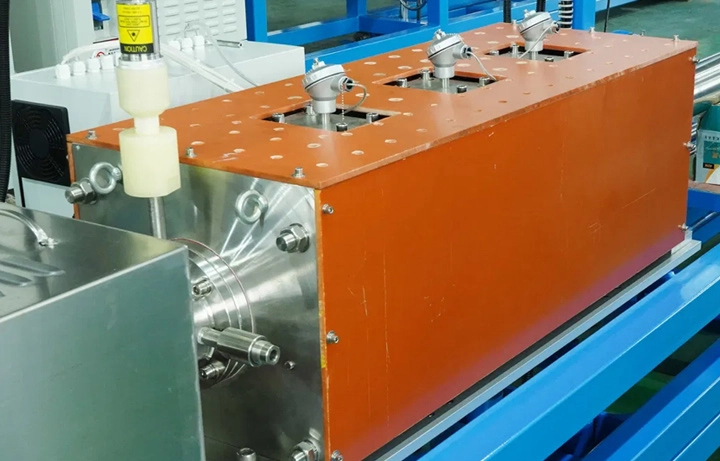

Thermocouple temperature measurement

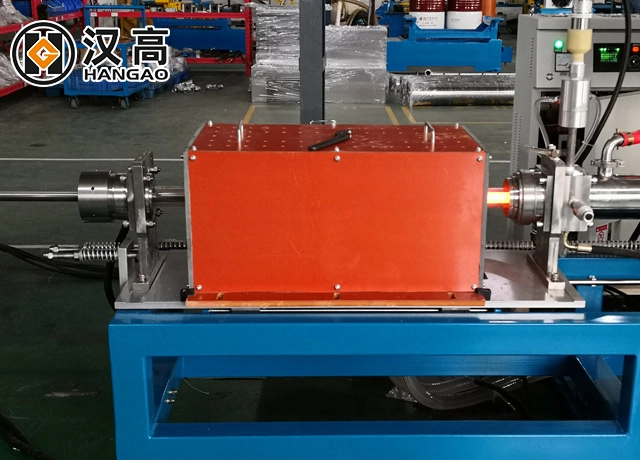

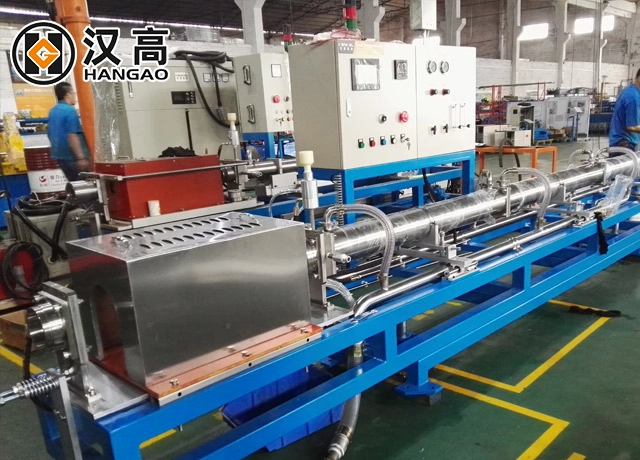

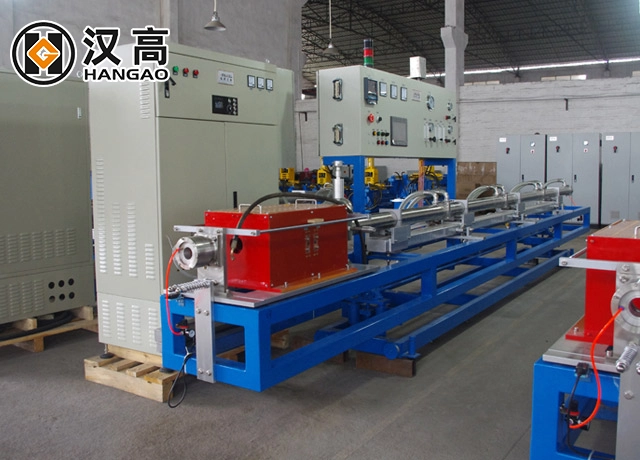

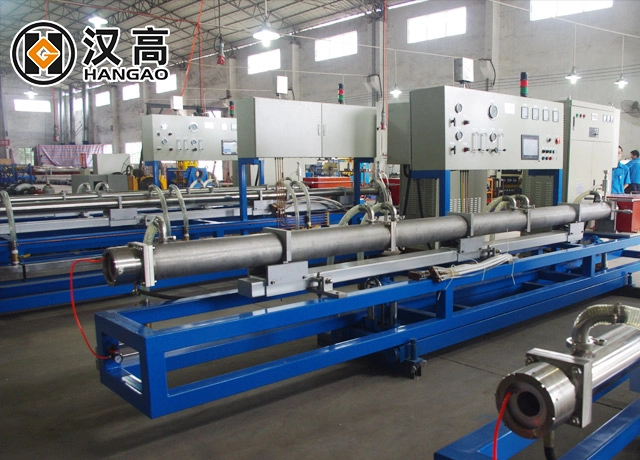

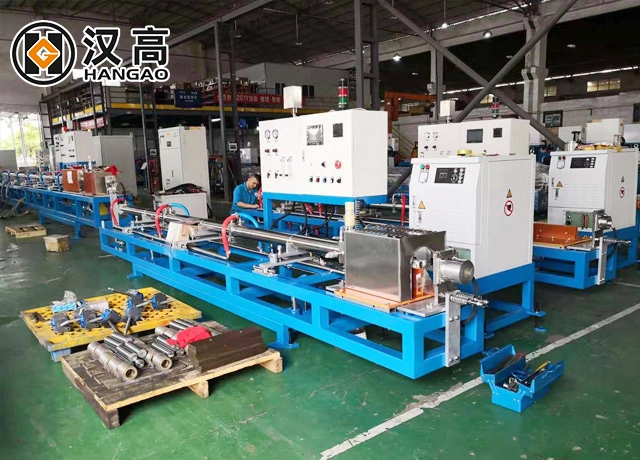

Our intelligent bright annealing furnace is a newly developed product. Building upon energy-saving bright annealing machine, this equipment enhances product functionality in terms of safety and intelligent control: the heating power supply features a new DSP+IGBT structure and adopts a fully digital DSP control system with comprehensive self-protection and self-diagnostic functions. The sensor, specially developed based on the characteristics of stainless steel, saves 15% more energy than similar products.
1. Industry innovation: Insulation resistance monitoring and protection function: If the human body touches the output copper bar, connecting cable bare copper, or inductor conductor, it can protect the shutdown.
2. The remote start function allows the production line to remotely start the power supply online.
3. Water pump circuit breaker trip protection: When the water pump is overloaded, the circuit breaker trips and the equipment protection stops.
4. Low pressure protection for cooling water circulation. When the cooling water circulation pressure is too low, the protection shuts down.
5. Over temperature and low temperature alarm: When we set the high and low temperatures. In the normal production process, there is an alarm output when the temperature is too high or too low.
6. Data collection function: It can generate records of production process parameters and production data, save them in the HMI disk, and trace the data.
7. It can provide an address for the upper computer and read the working status and data of the power supply through the modbus protocol.
8. Temperature curve generation: Temperature curve data can be saved in the HMI interface USB flash drive. As long as the USB flash drive has sufficient storage space, it can be protected for a year.
9. Tunnel movement function: When the device encounters abnormal resistance during operation, the device automatically moves and triggers the protection system.
| Specifications and Models | Tubulation Scope | Thickness Scope | ||
| Min. | Max. | Min. | Max. | |
| HGL-J-40 | 5 | 16 | 0.3 | 1.5 |
| HGL-J-60 | 6 | 28 | 0.4 | 1.5 |
| HGL-J-80 | 15 | 50.8 | 0.5 | 2.5 |
| HGL-J-100 | 25.4 | 76.2 | 0.5 | 3 |
| HGL-J-120 | 42 | 89 | 1 | 3 |
| HGL-J-160 | 60.3 | 114 | 1 | 4 |
| Fuel | Electricity |
| Scope of Application | Industrial Tube/ Sanitary Pipe Annealing |
| Material Applied | 300 Series Austentite,Dual Phase Steel and Ect |
| O.D. Range | 6-114 mm |
| Thickness | 0.38-12.0 |
| Temperature | 1050-1200 |
| Production Speed | 1-7 M/Min |
| Power(W) | 60-300 Kw |
| Dimension(L*W*H) | Customized |
| Control Type | PLC |
| Heating Type | Induction Heating |
| Warranty | 1 Year |
| After-Sales Service | Engineers Service Machinery Overseas Available |
| Lead Time | 45-90 Days |
| Standard | ASTM, DIN, ISO, GB and etc |
| Transport Package | Waterproof Film and Pallets |
| Specification | Customized |
| Production Capacity | 20 Sets Per Year, 1-7 M/Min |
| Package Size | 700.00cm * 120.00cm * 180.00cm |
| Package Gross Weight | 1500.000kg |
