In the global stainless steel tube market, the efficiency of your tube mill line dictates your market share. As a seasoned operator, you know the frustration: single-cathode TIG welding is synonymous with high quality but notoriously low speed. If you've been forced to choose between a beautiful weld bead and meeting high-volume orders, the Hangao tech Three-Cathode TIG welding pipe making machine offers the technological breakthrough you need.
By integrating advanced thermal distribution and German-standard mechanical precision, this system transforms the traditional bottleneck into a high-speed production advantage.
The Pain Point: The "Speed Wall" of Single-Arc Welding
Traditional TIG welding on a standard stainless steel pipe production line hits a "speed wall" at around 3-4 meters per minute for medium-walled tubes. Attempting to accelerate beyond this limit causes the arc to become unstable, leading to "humping" beads, undercut edges, and poor penetration.
For high-end applications—such as food-grade tubing or heat exchangers—these defects are unacceptable. Consequently, many factories operate their high-speed TIG welding tube mill at 40% of its mechanical capacity just to maintain weld integrity. This wasted potential increases the overhead cost of every ton produced.
The Hangao Tech Solution: Triple-Arc Synergy

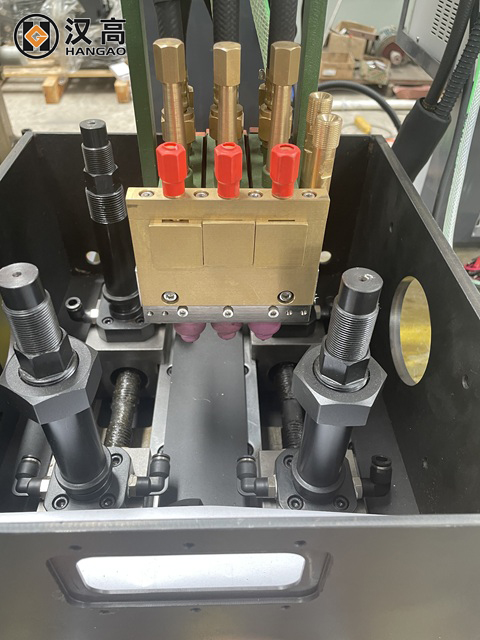

The three-cathode welding pipe machine from Hangao tech re-engineers the welding process by utilizing three independent electrodes working in perfect synchronization. This isn't just "more power"—it's a sophisticated thermal management strategy:
First Cathode: The first torch, equipped with electromagnetic control, cleans away oil and burrs from the plate edges, ensuring a stable environment for the main arc.
Second Cathode: The second torch preheats, concentrating high energy density to achieve 100% penetration even at high linear velocities.
Third Cathode: The third torch, equipped with electromagnetic control, concentrates the arc to penetrate the weld with a small current, optimizing the molten pool, eliminating turbulence, and ensuring a smooth, silvery-white weld requiring minimal polishing.

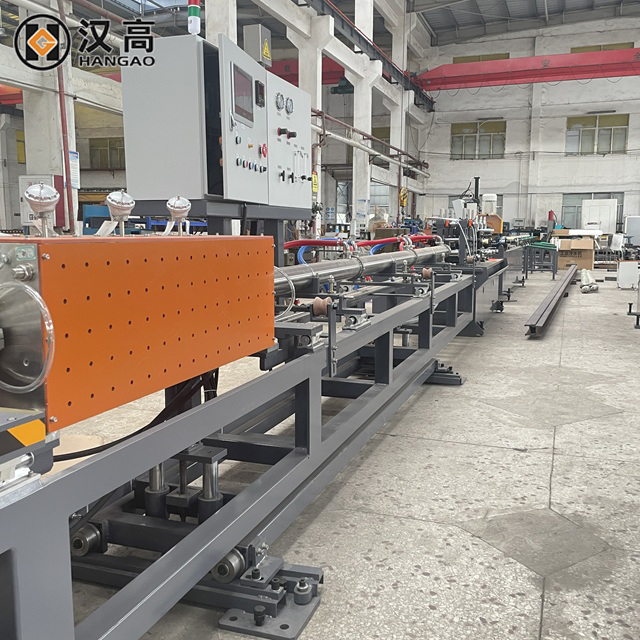

This configuration allows for welding speeds 2 to 3 times faster than single-cathode setups. When combined with an automatic three-cathode pipe mill with bright annealing, the entire process—from forming to heat treatment—happens in one seamless, high-speed flow.
Key Technical Parameters & Hangao Tech Advantages
Hangao tech’s equipment is engineered for the rigors of 24/7 industrial production. Below are the core specifications:
Linear Speed: Stable production at 1–15 m/min (for 0.4mm–10.0mm thickness).
Weld Appearance: Internal and external beads are flat and smooth, reaching sanitary-grade standards.
Energy Efficiency: Optimized inverter technology reduces power consumption by 15-20% compared to equivalent Plasma systems.
Control System: Precision PLC digital control allows for independent adjustment of each cathode’s current and gas flow.

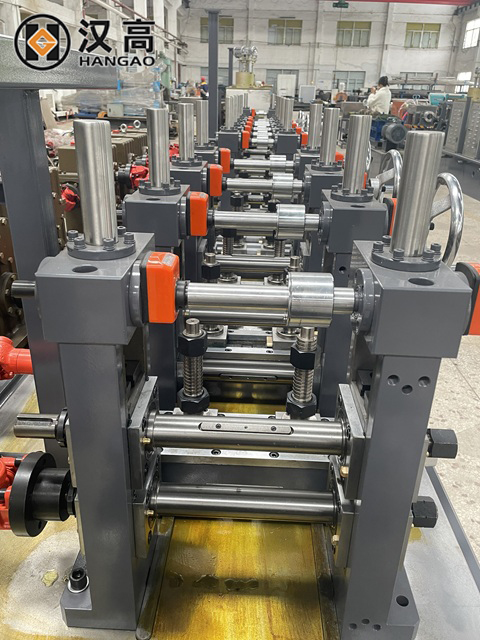

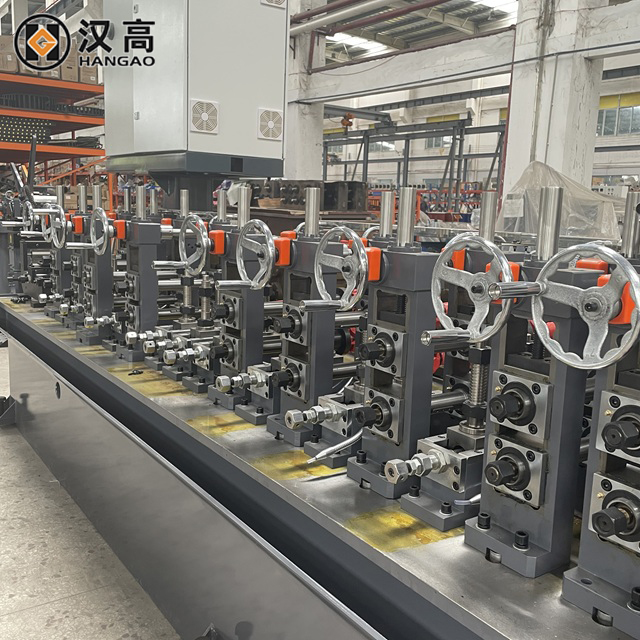

Durability: Heavy-duty forming stands designed for zero-vibration, essential for maintaining arc stability at high velocities.
Customer Success: 200% Increase in Throughput
A leading industrial tube manufacturer recently replaced their traditional tube mill line with a Hangao tech high-speed TIG welding tube mill. The results were immediate. By utilizing the triple-cathode system integrated with an online bright annealing furnace, they eliminated the need for secondary offline annealing and pickling.
The client reported that their "Grade A" output doubled within the first month. Because the Hangao tech system ensures a concentrated heat-affected zone, the pipes exhibited superior corrosion resistance and mechanical strength, allowing the client to command a premium price in the European market.
Frequently Asked Questions
Does the three-cathode system require three times the gas?
No. Hangao tech’s proprietary gas-shielding torch design optimizes argon flow, covering all three electrodes within a single protective atmosphere. This ensures minimal gas consumption while maintaining a mirror-finish weld.
Is the operation too complex for standard technicians?
While the technology is advanced, the interface is user-friendly. The automatic three-cathode pipe mill with bright annealing features "one-key" synchronization, where the current of all three cathodes adjusts automatically based on the line speed.
Can I retrofit my existing tube mill with a three-cathode welder?
It depends on the stability of your current forming base. A three-cathode welding pipe machine requires extremely high mechanical precision and vibration control to function at peak speeds. We usually recommend a full-line assessment to ensure your sizing and motor drive systems can handle the 3x increase in speed.
How does this impact the longevity of the bright annealing furnace?
Hangao tech’s bright annealing furnace is specifically matched to the high output of the three-cathode welder. We use high-density insulation and precision cooling to ensure that even at 10+ meters per minute, the pipe is fully stress-relieved and emerges without oxidation.
By choosing Hangao tech, you are investing in a stainless steel pipe production line that removes the limits of traditional TIG welding, delivering the perfect balance of speed, quality, and cost-efficiency.
