1.List of equipment: one feeding rack, one feeding rack, one main frame.

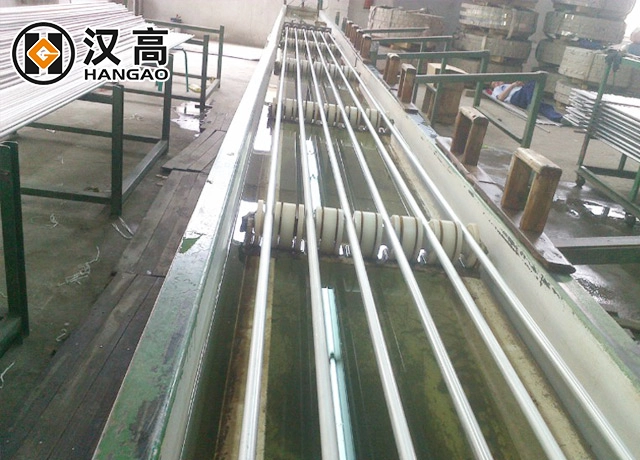

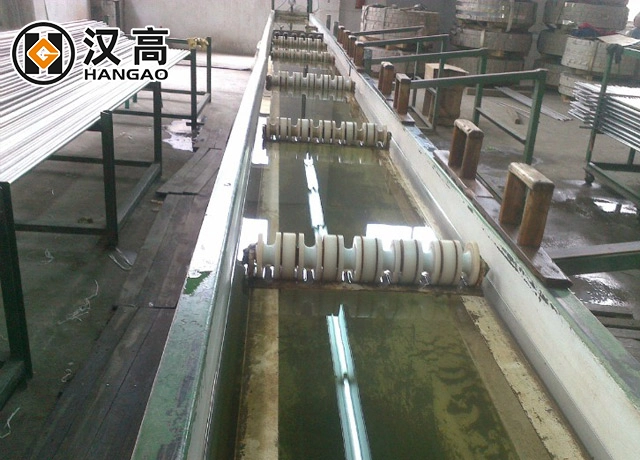

2.Automatic feeding: the pipe neatly placed on the material rack can automatically reach the pressure test working position.
3.Automatic unloading: The pipe finished in the test can be automatically unloaded to the finished shelf.
4.Automatic clamping: the pipe at the working position can be automatically clamped under the action of the cylinder.
5.Manual function: adjust the height, position, and distance of each part in advance, and make a test run for the automatic test.
6.Automatic function: press the automatic key, the equipment can automatically feed, automatically clip pipe, both ends of the cylinder can automatically advance and retreat, and automatically feed, etc. (that is, automatically complete a pressure test cycle process).
7, the system should use centralized control, the operator can perform simple and convenient operations, the leakage alarm device (sound, light) should have a manual one-button emergency machine start and stop function.
●The pressure testing machine's frame consists of two load-bearing beams. The frame is quite simple, and the equipment is very stable during loading.

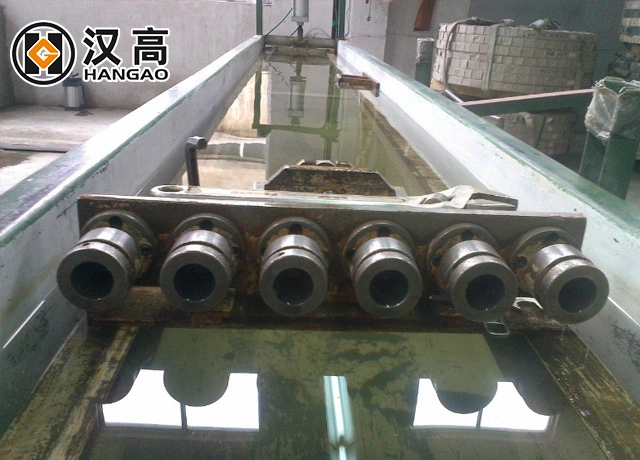

●Use a large gap sealing ring to achieve a radial seal for the steel pipe surface.
●It is equipped with two working modes: voltage stabilization and voltage maintenance.

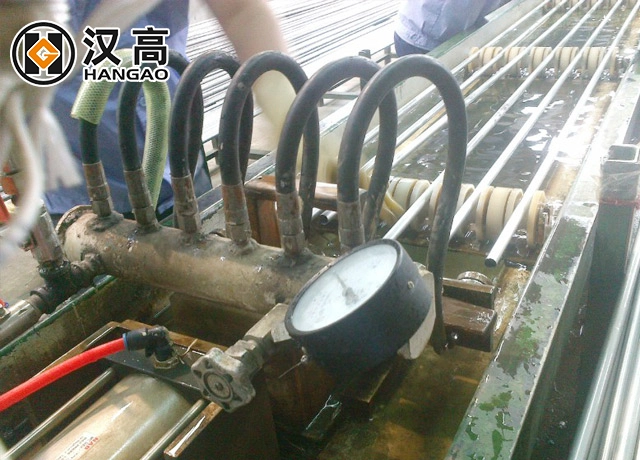

●The exhaust valve and water injection valve internally balance the forces on the connecting bolts by greatly reducing the load of the bolts. The valve is compact and extremely safe. The valve core incorporates a soft seal. Protection is secure and consistent, it has a long life, and replacement is easy.
●Multi-stage load shedding: It is separated into the main body load shedding and the sealing ring load shedding. Utilizing a two-stage load shedding can, first of all, effectively reduce the shock and test pressure vibration at the load shedding moment, and secondly, it prolongs the life of the load shedding valve and sealing ring.
Key Features and Advantages of Air Tightness Testers:
1. High Accuracy and Repeatability: The use of high-resolution sensors combined with advanced algorithms enables the achievement of stable and reliable test results.
2. Non-destructive: The majority of the tests are non-destructive, thus the usage of qualified products after testing remains unaffected.
3. High Work Efficiency and Automation Capability: It is possible to seamlessly integrate with automated production lines, thus fully automating loading, unloading, testing, and sorting, upgrading production efficiency substantially.
4. Digitization and Traceability: Test data (pressure curves, leakage rates, results) are automatically stored and recorded, and reports are generated on the basis of the traceability requirements of the quality management system (e.g., IATF 16949, ISO 13485).
5. Versatility: Changing fixtures and modifying test programs make it possible to rapidly switch between products of various shapes, sizes, and testing standards.
6. Environmentally Friendly and Safe: It mainly relies on compressed air, thus resulting in no pollution, and the environment would be drier, cleaner, and friendlier as compared to the traditional water testing methods, hence no need for subsequent drying.
Air tightness testers are crucial "quality gatekeepers" of the current high-tech manufacturing industry.
Their becoming was simply a two-step pressurizing assessment at the beginning, and now fully-fledged automation systems testing multiple sensing technologies, adaptive algorithms, together with integration into the Industrial Internet of Things.
The higher the precision, reliability, and durability of the product are, the more accurate and important airtightness testing becomes; thus, it will definitely be a major tool in guaranteeing the product's core performance and brand reputation.
Our Advantages
Established:2020
Core Expertise: We have accumulated over 20 years of knowledge and experience in the field of welded pipe equipment.

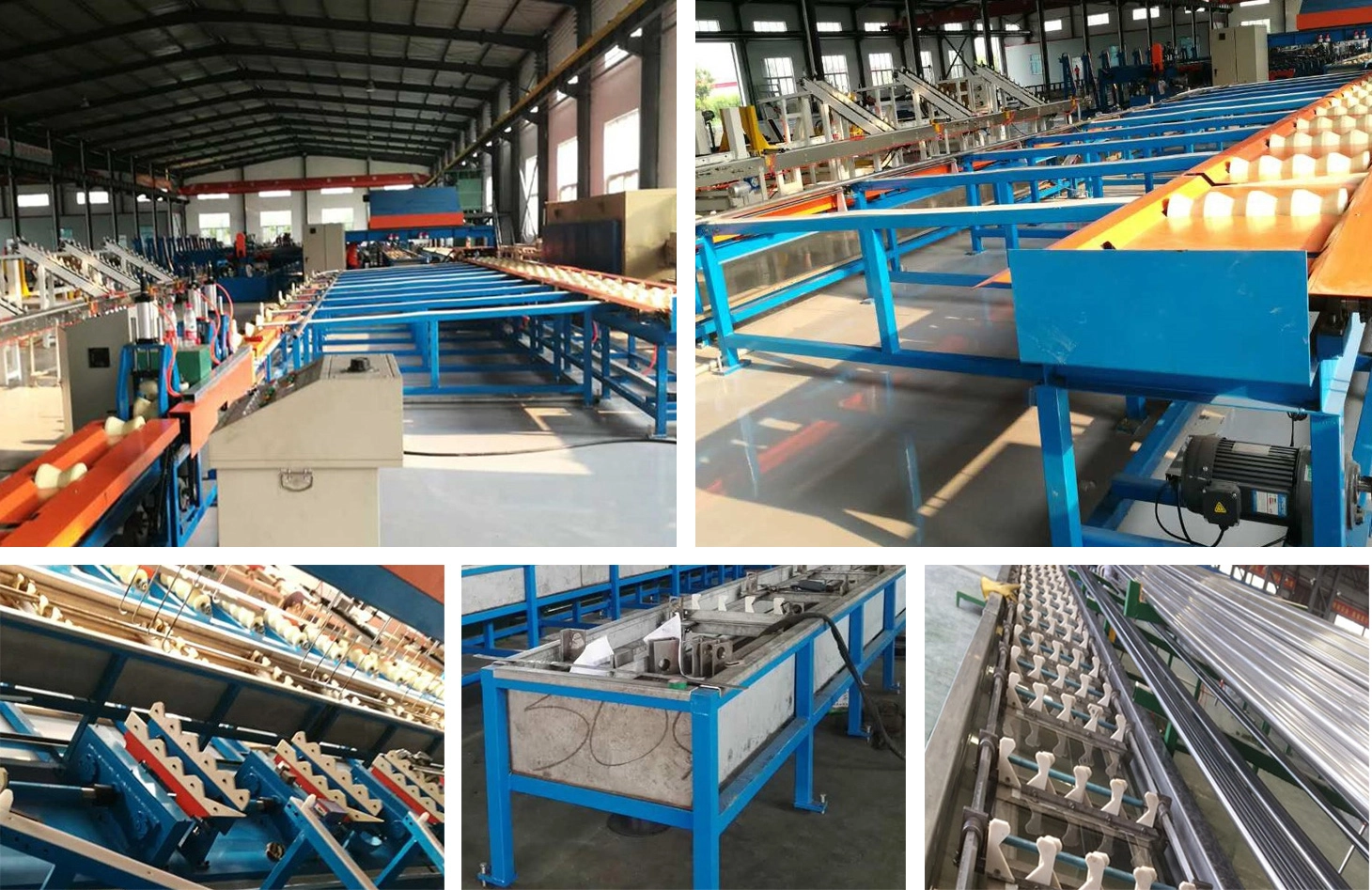

Factory Size: We have production and warehousing facilities that cover a total area of more than 20,000 square meters.
Technical Team: We have more than 30 professional technicians working in research & development and innovation.
Core Products: Precision-welded pipe production lines, weld leveling machines, bright solution annealing equipment, weld tracking systems, intelligent control systems, bright solution annealing equipment for precision rolled pipes, rotary annealing machines, etc.
R&D Strength: We have more than 30 national patents and continue to obtain new ones.
Certifications: We are a National High-Tech Enterprise, and our quality management system is ISO9001 certified, which guarantees high-quality standards at every stage from design to service.
Partners: Our unyielding commitment to excellence has led us to gain the trust of industry-leading companies such as Juli, Wujin, Sanhua, Plymouth (USA), and Binner (India).
Market Coverage: Our products are sold all over the world and have been exported to numerous countries and regions, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam, besides China.
