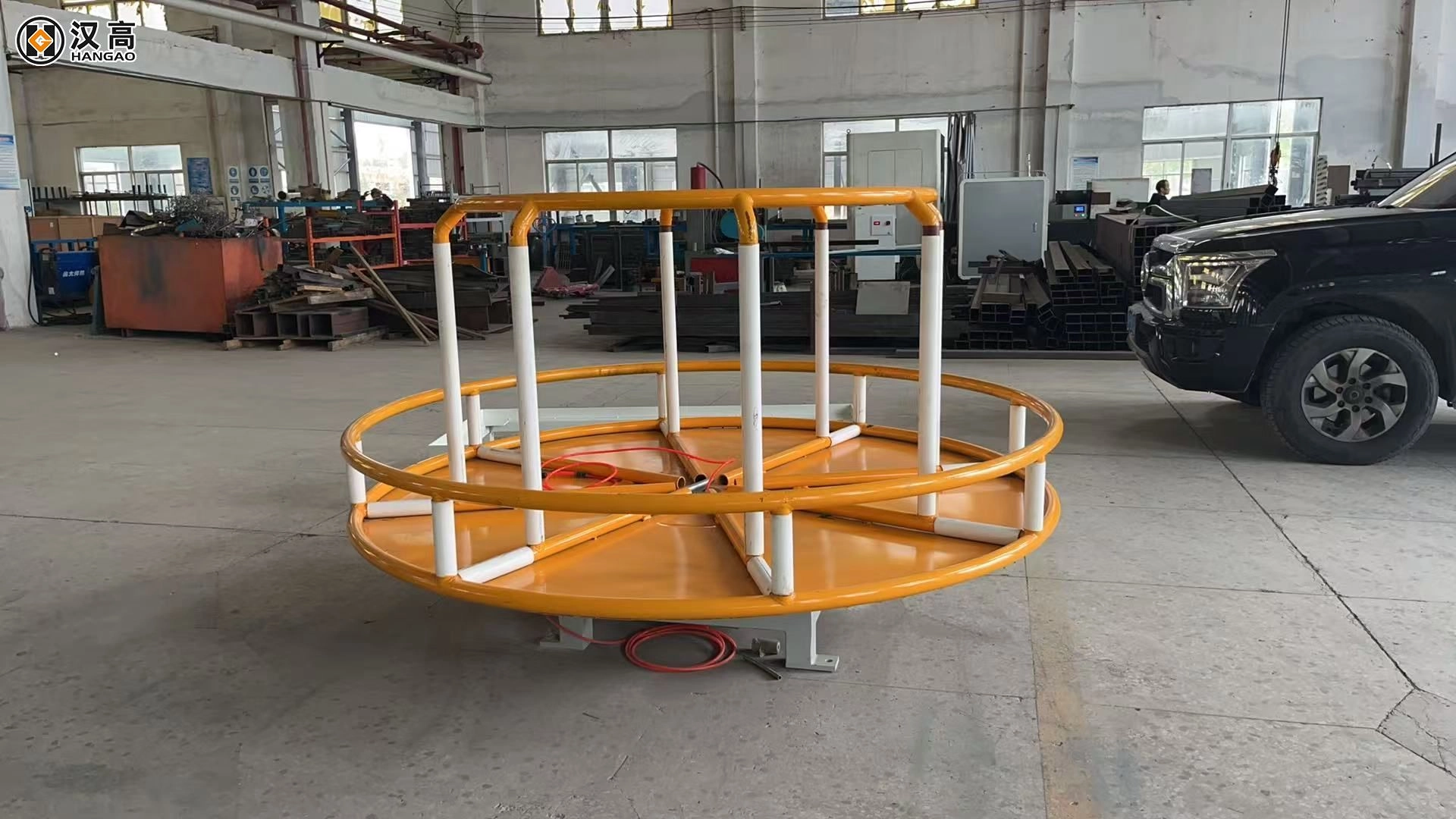

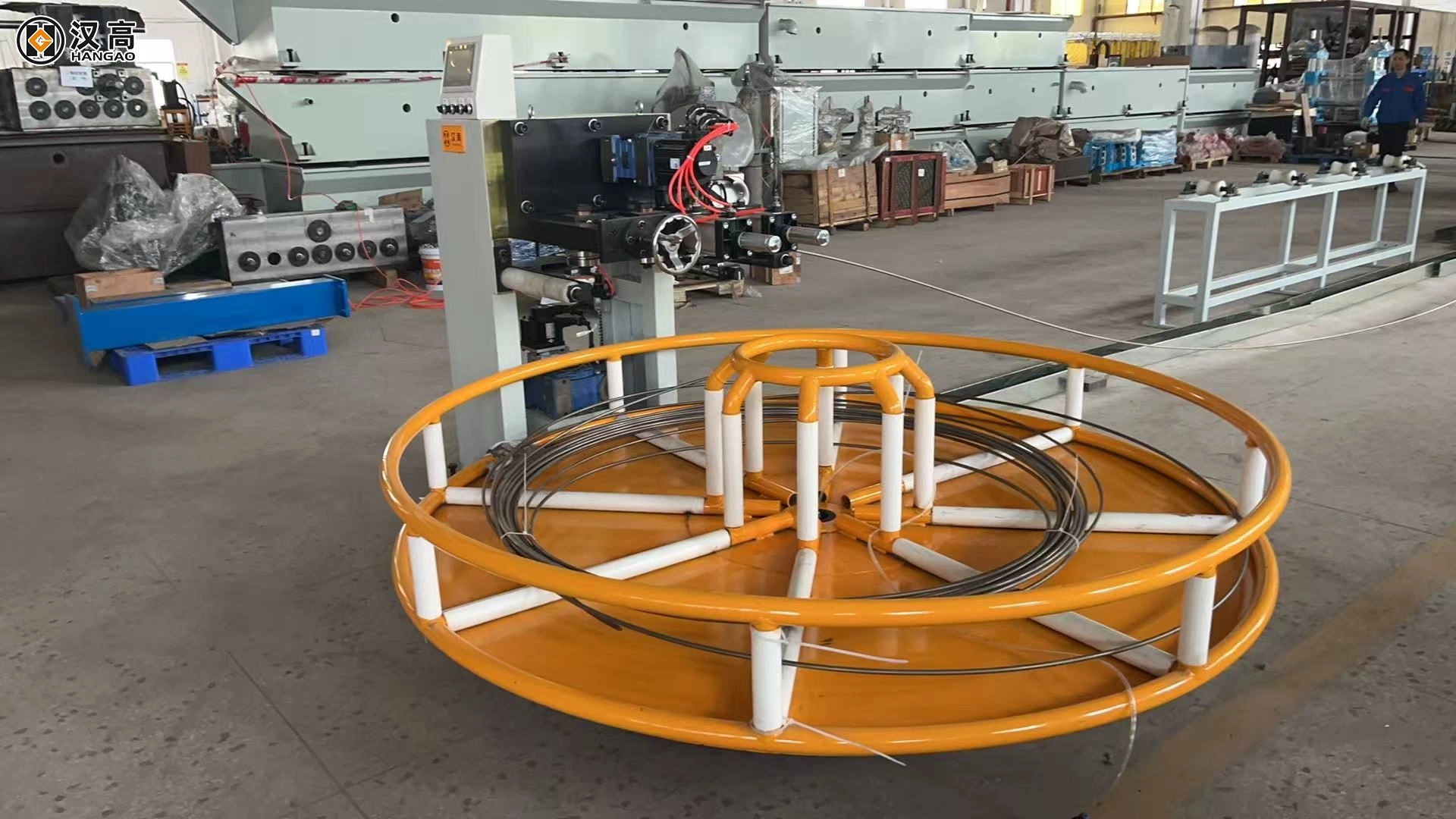

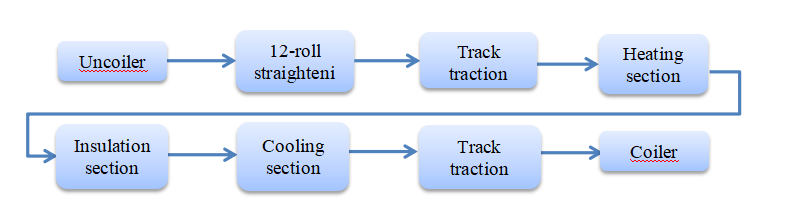

Uncoiler
The coil is placed on a turntable, and the turntable is moved by traction power.

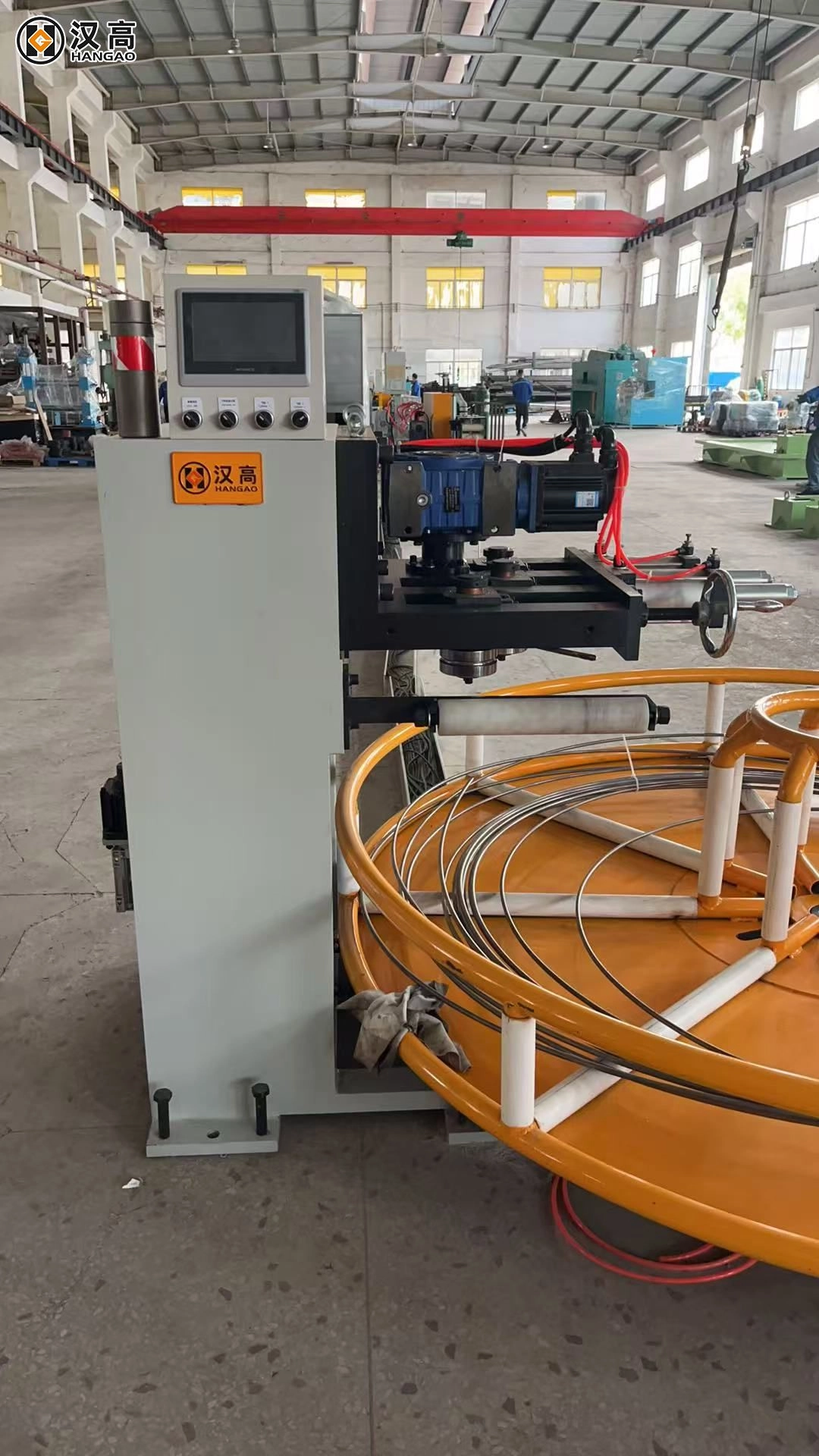

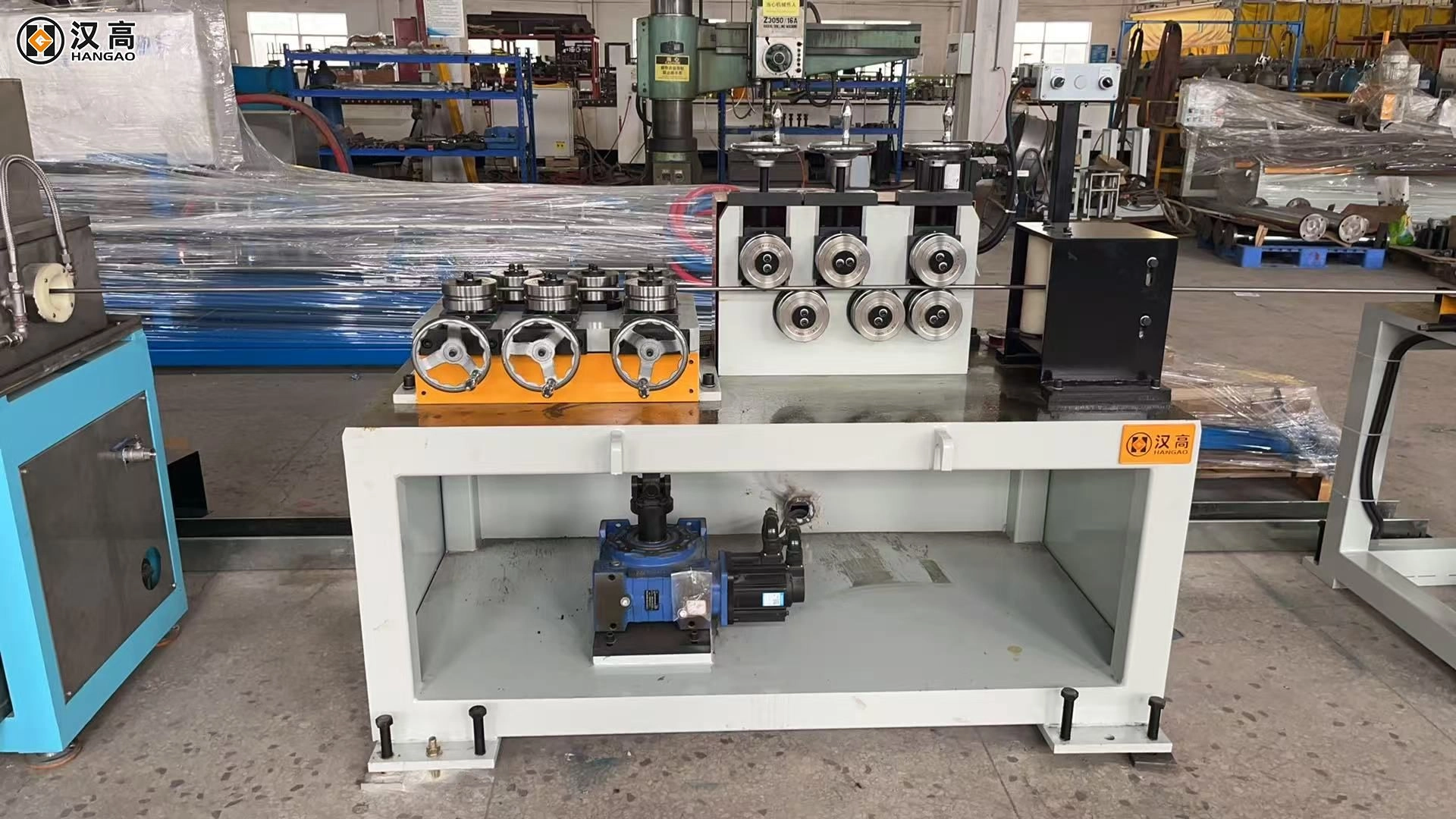

10 Roll Straightening
Straightening is performed using five rollers each in the horizontal and vertical directions to facilitate smooth entry into the annealing furnace.

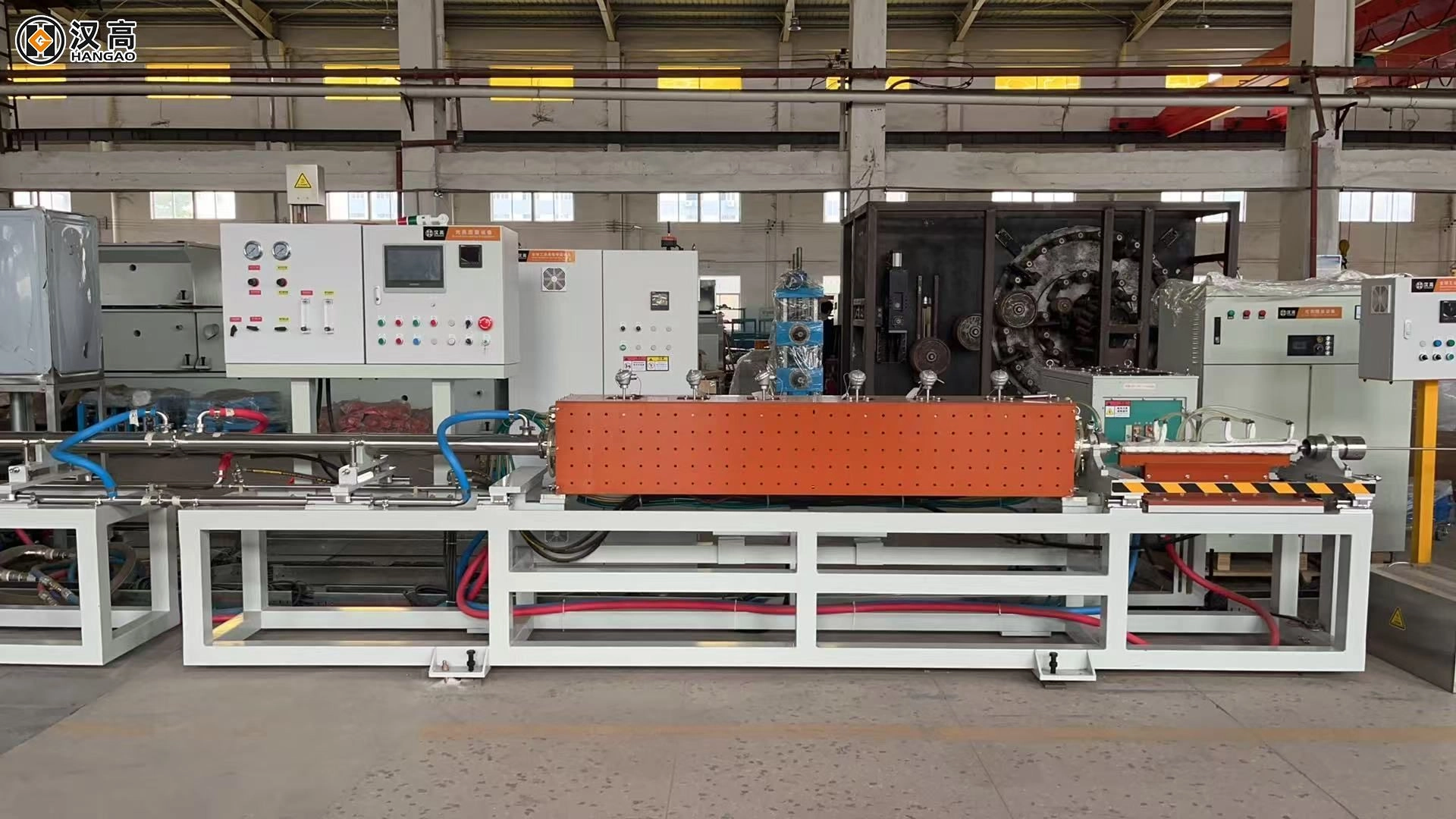

Heat preservation bright annealing machine
The induction heating power supply heats the pipe to 1050~1150℃ or higher (maximum 1150℃) for bright stress relief or solution treatment, followed by rapid cooling to 100℃ under hydrogen protection.

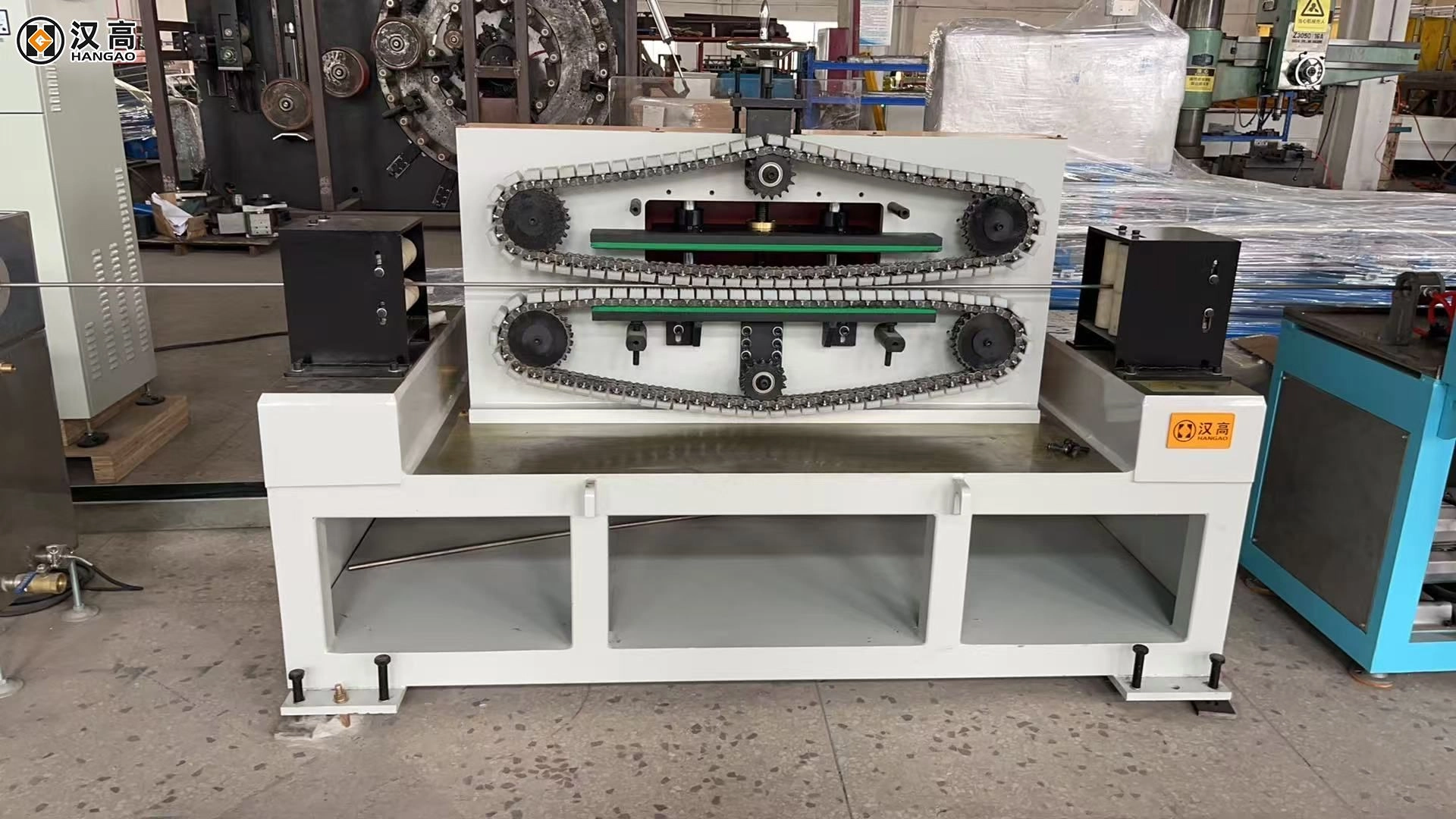

Caterpillar-tractor
The solution-treated pipe is simultaneously pulled out, with an optimal traction speed of 1-8 m/min.

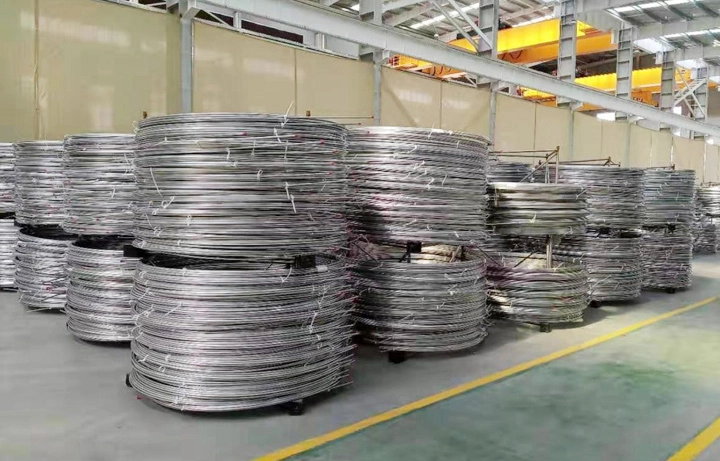

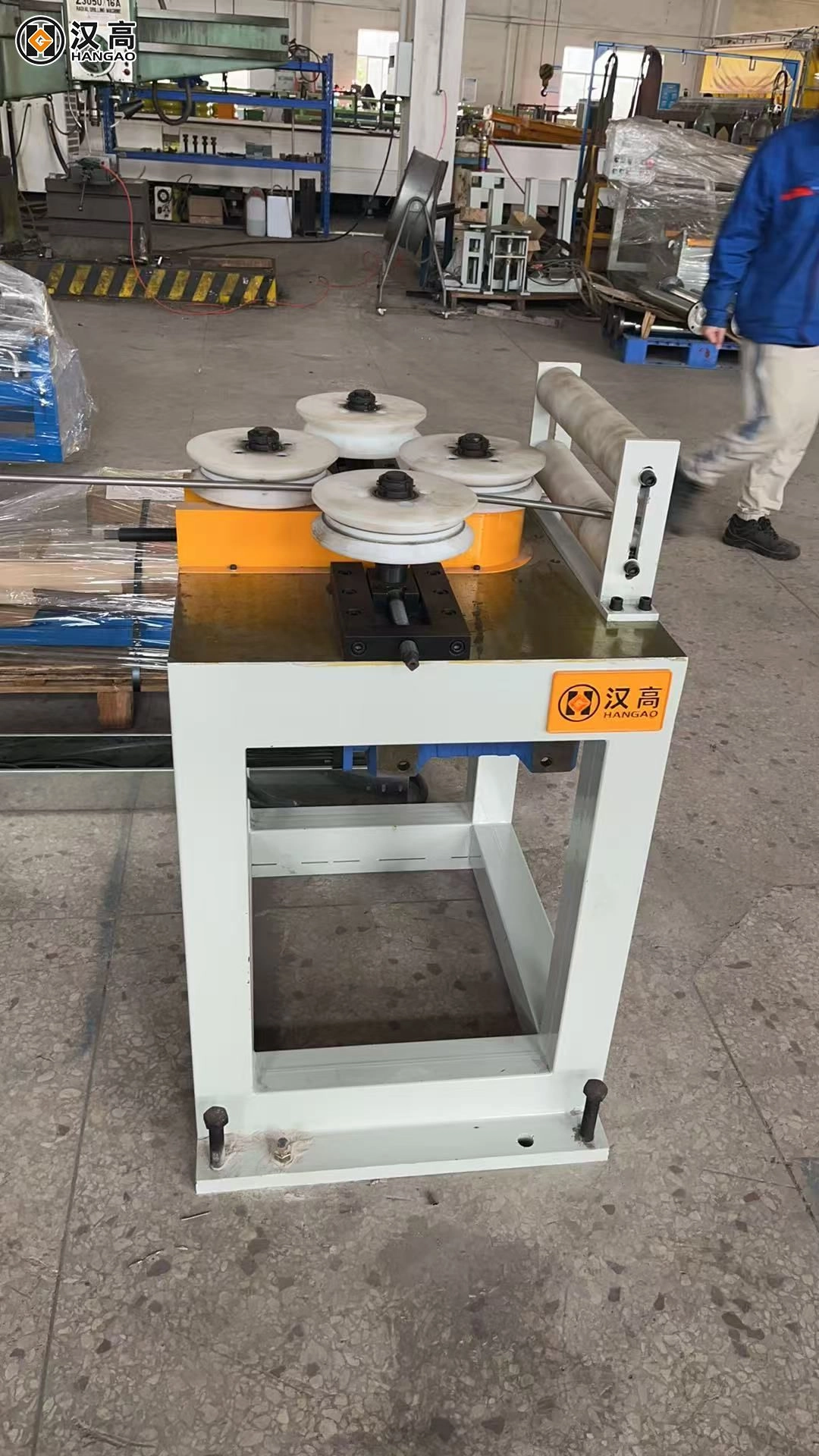

Pre-bending machine and Dynamic Re-coiler
The bright heat-treated steel pipe is coiled into a coil.
Bent Coiled Tubing Process Description:
The off-line bright solution annealing production line functions by feeding straight tubes through a
loading roller conveyor and an internal powered roller conveyor within the solution annealing furnace.
The tubes pass through the furnace at a constant speed, and an induction heating power supply
heats the tubes to 1050~1150℃ or a higher set temperature (maximum 1150℃) for bright stress relief or
solution annealing treatment. Subsequently, the tubes are rapidly cooled to 100℃ under a
hydrogen atmosphere. Simultaneously, the exhaust gas is combusted to prevent hydrogen diffusion into
the surrounding air, thus avoiding the accumulation of hydrogen to dangerous concentrations in
the surrounding space.

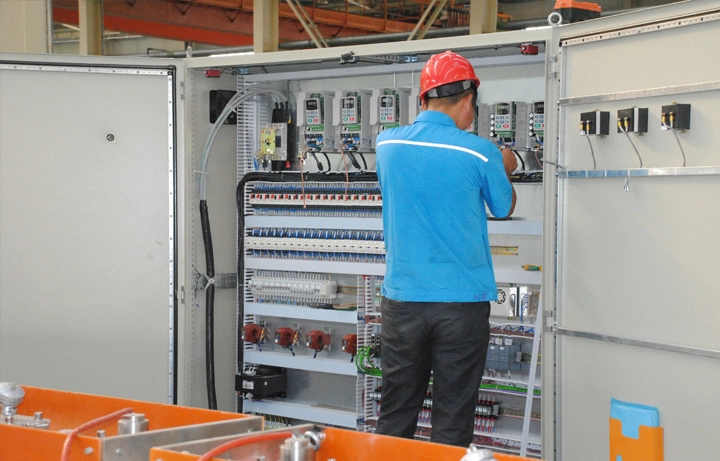

The gas control system and equipment protection are automatically controlled by a PLC, ensuring
high reliability and safety of the equipment. To meet the requirements of higher-demand tube
solution annealing processes, a digital air-cooled power supply is used, which has the significant
advantages of high efficiency and low energy consumption.
High Cleanliness
With bright annealing, pipe cleaning, and pipe polishing.
Real Time Recording
Traceable temperature, solution power, and current frequency of each steel pipe.
High Speed
Ensure that the quality of the welded pipe meets ASME standards, with a speed of up to 1~8m/min
High Yield
The yield can reach over 98%.
Upper Computer Communication
Connecting the upstream rolling mill to achieve ultra long pipes.
One Click Start Stop
With one click start stop function.
| Type | Material | Welding type | O.D.(mm) | Thickness(mm) | Capacity(m/min) | Motor Power(KW) | Size(L*W*H)(m) |
| HZG-40x | SST | TIG | 6-16 | 0.4-1.5 | 1.5-7 | 5.5 | |
| HZG-40 | SST | TIG | 16-50.8 | 0.5-2.5 | 4.5- | 7.5 | |
| HZG-50 | SST | TIG | 25.4-76 | 0.5-3.0 | 11 | ||
| HZG-60 | SST | TIG | 50.8-114 | 1.0-4.0 | 15 | ||
| HZG-80 | SST | TIG | 89-168 | 1.0-5.0 | 18.5 | ||
| HZG-100 | SST | TIG | 114-219 | 2.0-8.0 | 30 | ||
| SZG-120 | SST | TIG | 168-325 | 3.0-10.0 | 37 |
| Model NO. | HZG-40x/40/50/60/80/100/120 |
| Theory | Inverter |
| Application | Industry |
| Type | Pipe Production Line |
| Scope of Application | Sanitary Tube/ Water Pipes |
| O.D. Range | 6-325 mm |
| Thickness | 0.38-10.0 |
| Control Type | PLC |
| Production Speed | 1-7 M/Min |
| Certification | ISO9001 |
| Power(W) | 0 |
| Voltage | 380V 50Hz |
| Power Supply | 415V/3pH |
| Dimension(L*W*H) | 20.0m |
| Lead Time | 30-60 Days |
| Transport Package | Waterproof Film and Pallets |
| Production Capacity | 20 Sets Per Year |
| Package Size | 32.00cm * 1.50cm * 1.80cm |
| Package Gross Weight | 25000.000kg |
The Hangao coil offline bright annealing production line, through its unique furnace structure and atmosphere circulation design, overcomes the technical barrier of achieving uniform heat treatment of the inner and outer layers of coiled products. It can produce large quantities of coiled products with bright surfaces, excellent performance, and no oxide scale in a single process. This makes it a key piece of equipment for the stainless steel coil and welded pipe industry to enhance product added value and core competitiveness.
