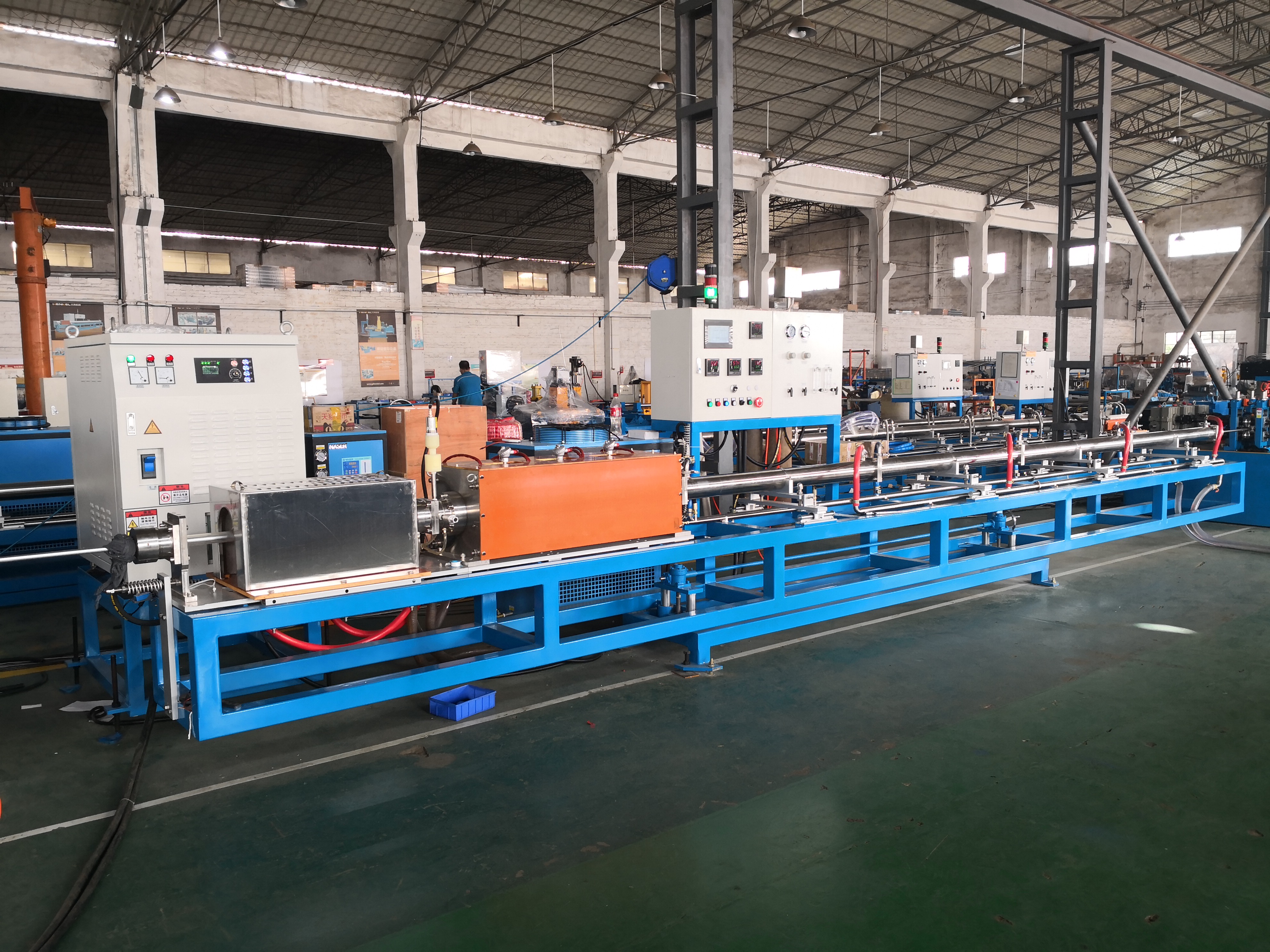

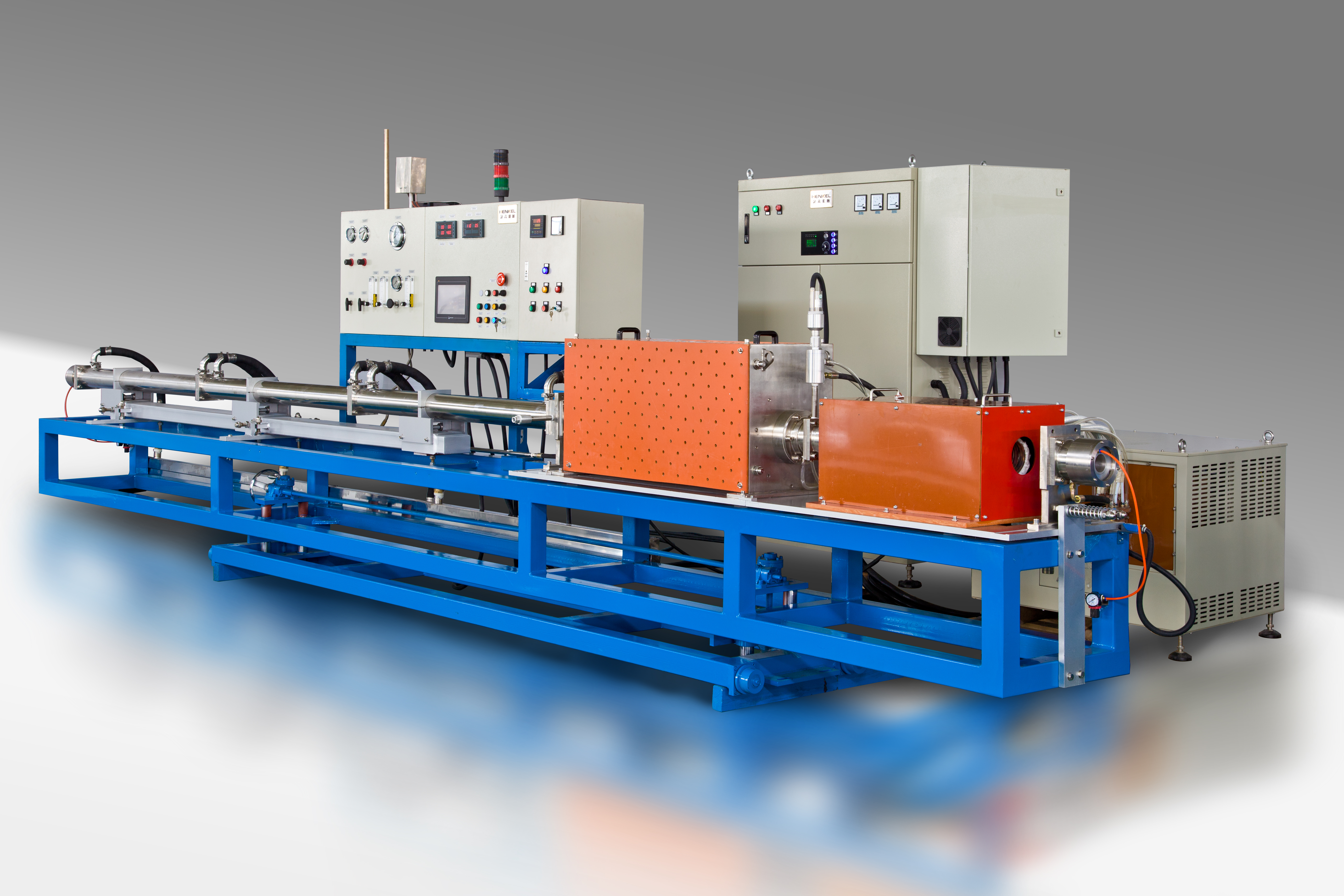

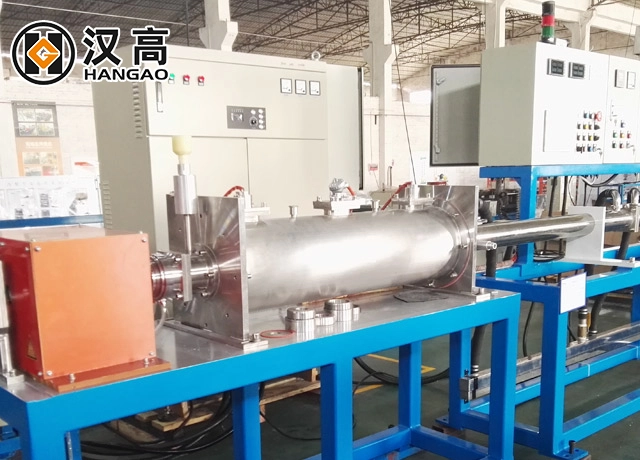

Hangao corrugated pipe annealing production line is an automated equipment specifically designed for heat treatment of metal corrugated pipes (a type of stretchable, flexible, thin-walled tubular component with wavy undulations). Its main purpose is to eliminate the internal stress generated during the forming process of the corrugated pipe through precisely controlled heating and cooling processes, thereby improving its mechanical properties and laying the foundation for subsequent processes (such as stabilization treatment, welding, electroplating, etc.) or final performance.
High Cleanliness
With bright annealing, pipe cleaning, and pipe polishing.

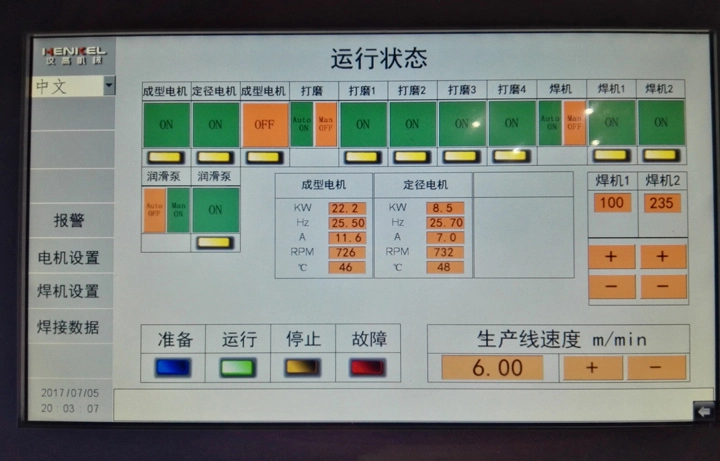

Real-time data recording
The temperature, solution power, and current
frequency of each steel pipe can be tracked on the page.
High Speed
Welding speeds can reach 1-8 meters per minute, ensuring that the quality of welded pipes meets ASME standards.
High Yield
The yield can reach over 98%.
Upper Computer Communication
Connecting the upstream rolling mill to achieve ultra long pipes.

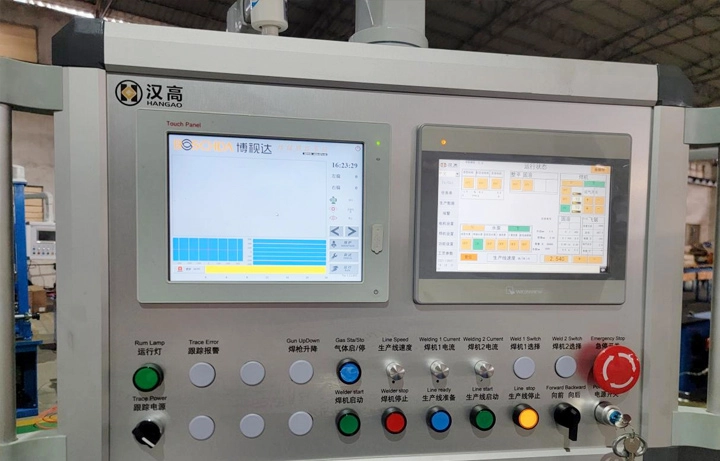

One Click Start Stop
The system features one-button start/stop functionality, data collection and uploading capabilities, and the ability to store and select process parameters.
| Type | Material | Welding type | O.D. (mm) | Thickness (mm) | Size(L*W*H) (m) |
| HZG-40x | SST | TIG | 6-16 | 0.4-1.5 | 5.5 |
| HZG-40 | SST | TIG | 16-50.8 | 0.5-2.5 | 7.5 |
| HZG-50 | SST | TIG | 25.4-76 | 0.5-3.0 | 11 |
| HZG-60 | SST | TIG | 50.8-114 | 1.0-4.0 | 15 |
| HZG-80 | SST | TIG | 89-168 | 1.0-5.0 | 18.5 |
| HZG-100 | SST | TIG | 114-219 | 2.0-8.0 | 30 |
| HZG-120 | SST | TIG | 168-325 | 3.0-10.0 | 37 |
| Model NO. | HZG-40x/40/50/60/80/100/120 |
| Theory | Inverter |
| Application | Industry |
| Type | Pipe Production Line |
| Scope of Application | Sanitary Tube/ Water Pipes |
| O.D. Range | 6-325 mm |
| Thickness | 0.38-10.0 |
| Control Type | PLC |
| Production Speed | 1-7 M/Min |
| Certification | ISO9001 |
| Power(W) | 0 |
| Voltage | 380V 50Hz |
| Power Supply | 415V/3pH |
| Dimension(L*W*H) | 20.0m |
| Lead Time | 30-60 Days |
| Transport Package | Waterproof Film and Pallets |
| Production Capacity | 20 Sets Per Year |
| Package Size | 32.00cm * 1.50cm * 1.80cm |
| Package Gross Weight | 25000.000kg |
The bellows annealing production line is more than just "heating and cooling";
its process objectives are very clear:
● Stress Relief: Thoroughly remove residual stress after hydroforming or welding to
prevent stress corrosion cracking or deformation during future use.
● Microstructure Optimization: Allow work-hardened grains to recrystallize,
obtaining uniform and fine equiaxed grains, thereby significantly improving the material's
plasticity and toughness.
● Performance Stabilization: Ensure the bellows' elastic properties (stiffness, displacement) are
stable and consistent, which is crucial for bellows as a measuring element.
● Enhanced Durability: By improving the microstructure, significantly increase the bellows' fatigue life
and creep resistance.
