Creative technology of horizontal push, more stable operation, milder reversing.

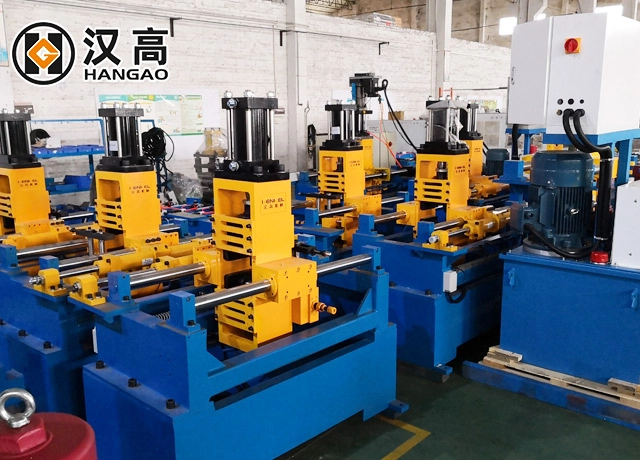

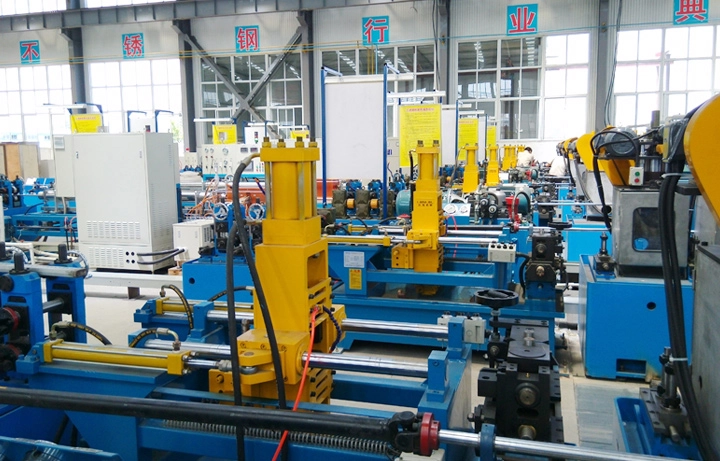

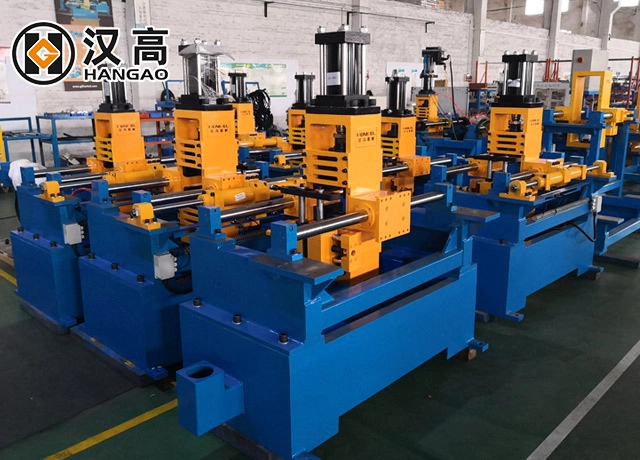

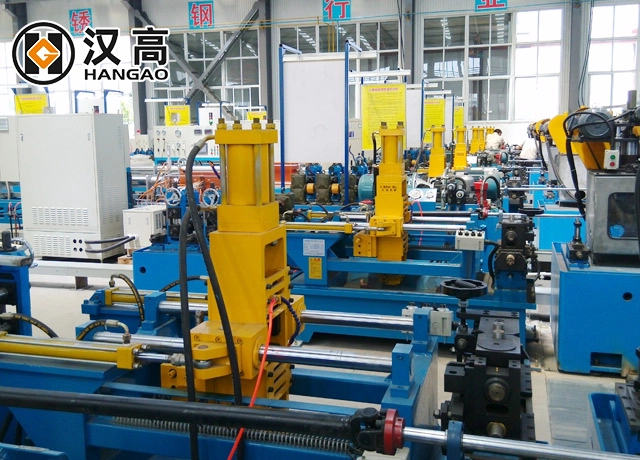

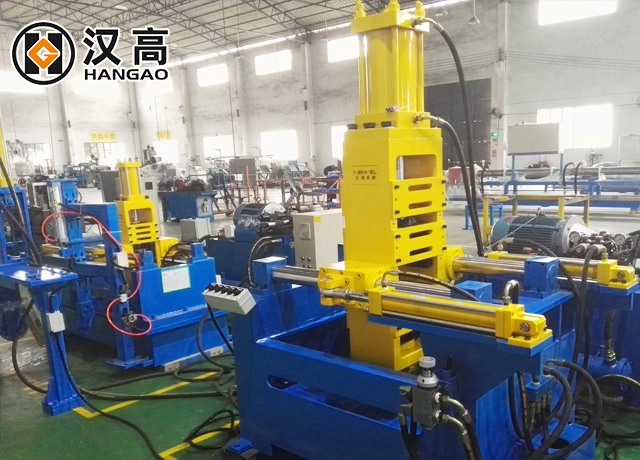

The Hangao Welded Joint Rolling Equipment is used for on-line treatment of welded joints of stainless steel pipe, rolling on the inner and outer welding joints repeatly to keep the joints smooth and make the welded pipe seamless. With PLC and auto control of ratio of hydraulic pressure, the performance is stable and the rate of production is high and it is easy to use. With error output setting , start input and coupling of pipe production line, it is indispensable for production of senior industrial welded pipes.
Matching : will be matched with industrial pipe making machine.

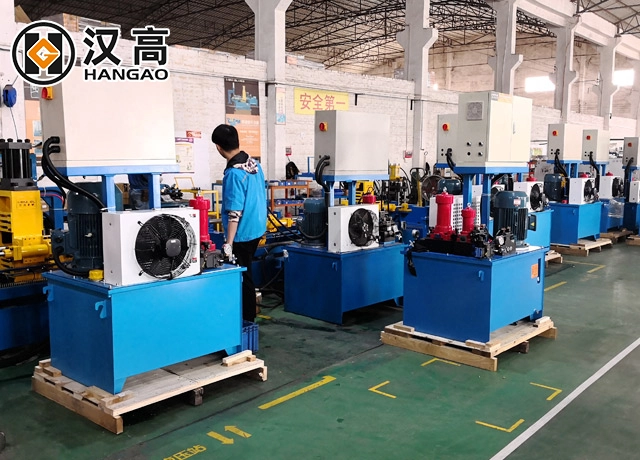

• Component : inside and outside weld seam leveling equipment, hydraulic air control system, automatic electric hydraulic air control system with PLC, hydraulic cycling equipment for mold and roll.

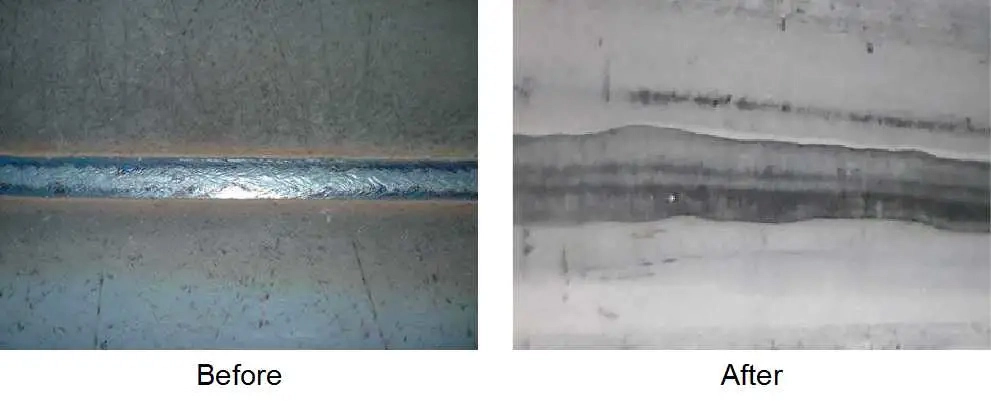

• Feature : The main characteristic of this system is through a pair of roll repeated breaking of convex weld up to 30 times per minute, to ensure weld and parent metal smooth transition.The use of advanced hydraulic control ratio curve, makes the equipment run smoothly and minimize the impact of the welded pipe production line pipe, to achieve the best effect.

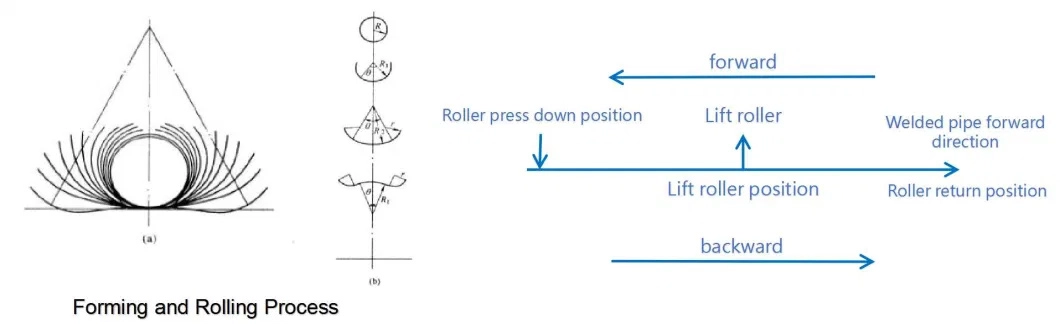

• Working procedure : with more than the high and weld stainless welded pipe after level after rolling roll over, high removed, welded pipe section into a level in welding rods, elliptical stuck pipe welded pipe, followed by vertical roll rolling, welded pipe section into a mandrel, with full welded pipe separation in the frame of the cylinder back to when proper place, then the second rolling cycle.
| Type | Welding type | O.D. (mm) | Thickness (mm) | Speed (m/min) | Motor Power (KW) | Capacity of Oil Cylinder | Size(L*W*H)(m) |
| HZP-J-40 | TIG | 12-38 | 0.4-2.0 | 1-5 | 7.5 | 200L | Customized |
| HZP-J-50 | TIG | 25-76 | 0.5-2.5 | 1-5 | 7.5 | 300L | Customized |
| HZP-J-60 | TIG | 50.8-114 | 0.5-3.0 | 0.5-4 | 11 | 300L | Customized |
| HZP-J-70 | TIG | 89-168 | 1.0-4.0 | 0.5-3.5 | 18.5 | 300L | Customized |
| HZP-J-90 | TIG | 89-219 | 1.0-5.0 | 0.5-3.5 | 18.5 | 300L | Customized |
| Model NO. | HZP-J-40/50/60/70/90 |
| Type | on-Line |
| O.D. Range | 12-219 mm |
| Thickness | 0.4-3.0 mm |
| Control System | PLC |
| Cooling Type | Air Cooling |
| Power | 7.5/11 Kw |
| Speed | 0.5-5 M/Min |
| Material Applied | 300 Series,400 Series, Duplex Stainless Steel |
| Scope of Application | Industrial Tube/ Decoration Tube/ TIG Welding Tube |
| Mandrel Material | SKD11 |
| Roller Material | Cr12MOV |
| Effect | Removing Weld Bead, Make Internal Tube Wall Smooth |
| Principle | Hydraulic |
| Transport Package | Water Proof Film and Pallets |
| Specification | Customized |
| Production Capacity | 500 Sets Per Year |
| Package Size | 120.00cm * 100.00cm * 150.00cm |
| Package Gross Weight | 3000.000kg |
Company Advantages
Established: 2020
Core Expertise: Over 20 years of experience in welded pipe equipment.
Factory Size: Over 20,000 square meters of modern production base and warehouse.
Technical Team: Equipped with over 20 professional technicians dedicated to R&D and innovation.
Core Products: Precision welded pipe production lines, welding seam machine, bright solution equipment, weld seam tracking systems, intelligent control systems, finishing rolling pipe bright solution equipment, rotary annealing equipment, etc.
R&D Strength: Holds over 30 national patents and continuously obtains new patent authorizations.
Certifications: National high-tech enterprise, certified with ISO9001 quality management system, ensuring quality throughout the entire process from design to service.
Partners: Our relentless pursuit of excellence has earned the trust of numerous industry-leading companies, including Juli, Wujin, Sanhua, Plymouth (USA), and Binner (India).
Market Coverage: Our products are sold globally, exported to numerous countries and regions besides China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.
Why Choose Us?
1/ Professional service team providing local installation and maintenance services
2/ 100% quality guarantee, free parts replacement
3/ One-stop solution service supporting industrial supply chain machinery
4/ Serving over 11 countries and regions
5/ Online pipeline operational testing before shipment
6/ A 20-year R&D team dedicated to advanced design. We have obtained more than 30 patents for tube mills,
offering fully automated, high-speed, and lower-cost technology.
7/ Local machine inspection services provided, having participated in over 100 sample projects (Dubai, India,
Vietnam, Pakistan, Russia, Malaysia, Serbia, Costa Rica, South Korea, USA, Australia, etc.).
