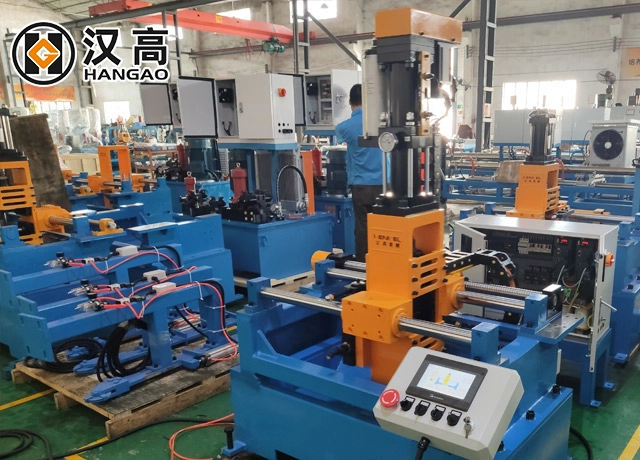

Matching : will be matched with industrial pipe making machine.
• Component : inner weld bead leveling machine, hydraulic air control system, automatic electric hydraulic air control system with PLC, hydraulic cycling equipment for mold and roll.
• Feature : stainless steel welded pipe welding leveling device and a built-in SKD11 mandrel and utilization of stainless steel welded pipe rolling device automatic reciprocating roller, through the control to achieve the strength and make stainless welded pipe and weld leveling, completely remove the internal and external welding and with more respect to seamless requirement.
• Working procedure : with more than the high and weld stainless welded pipe after level after rolling roll over, high removed, welded pipe section into a level in welding rods, elliptical stuck pipe welded pipe, followed by vertical roll rolling, welded pipe section into a mandrel, with full welded pipe separation in the frame of the cylinder back to when proper place, then the second rolling cycle.
01. High speed, up to 7m/min;
02. Reduce the floor area by 50%;
03. Save 80% of electricity consumption;
04. Reduce maintenance costs by 80%;
05. Environmental protection: clean site, compact air-cooled small hydraulic station;
06. High precision: servo motor drive, proportional valve adjustment, digital control;
07. Pressure stability: use hydraulic output to stabilize the pressure; Avoid pressure fluctuations caused by unstable air pressure;
08. Convenient installation, the equipment can be fixed and used after adjusting the center level and height in place; Convenient replacement of mold specifications;
09. Energy saving, low consumption, motor power of 6.5KW, reducing long-term usage costs for customers;
10. Digitization: Built in Ethernet interface for remote viewing and maintenance; Can provide the data interface required for the smart factory upper computer system (MES).
| Specifications and Models | Tubulation Scope | Thickness Scope | ||
| Min. | Max. | Min. | Max. | |
| HZP-GZ-40 | 12 | 38 | 0.5 | 2.5 |
| HZP-GZ-50 | 25.4 | 50.8 | 0.5 | 3 |
| HZP-GZ-60 | 38 | 89 | 1 | 3.5 |
| HZP-GZ-80 | 89 | 168 | 1.5 | 5 |
| HZP-GZ-100 | 114 | 219 | 2 | 8 |
| HZP-GZ-120 | 168 | 325 | 3 | 10 |
| Model NO. | HZP-GZ-40/50/60/80/100/120 |
| Type | on-Line |
| O.D. Range | 12-325 mm |
| Thickness | 0.4-3.0 mm |
| Control System | PLC |
| Cooling Type | Air Cooling |
| Power | 7.5/11 Kw |
| Speed | 1-7 M/Min |
| Material Applied | 300 Series,400 Series, Duplex Stainless Steel |
| Scope of Application | Industrial Tube/ Decoration Tube/ TIG Welding Tube |
| Mandrel Material | SKD11 |
| Roller Material | Cr12MOV |

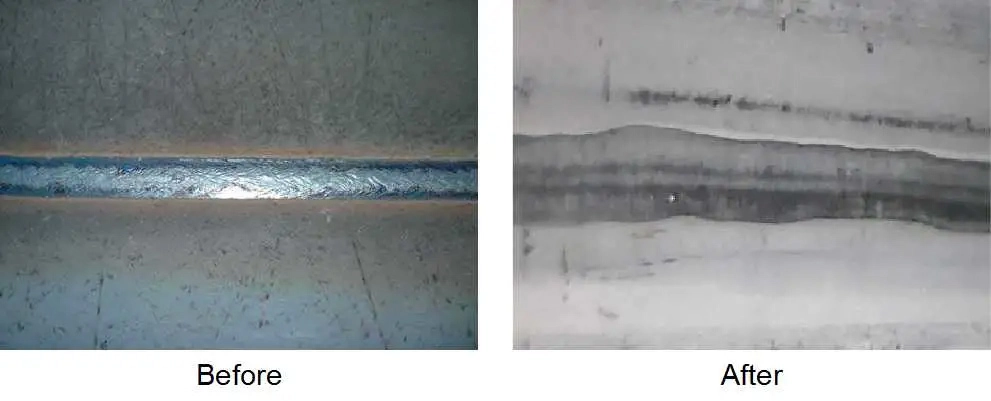

| Effect | Removing Weld Bead, Make Internal Tube Wall Smooth |
| After-Sale Service | Engineers Available to Service Machinery Overseas |
| Transport Package | Water Proof Film and Pallets |
| Specification | Customized |
| Production Capacity | 500 Sets Per Year |
| Package Size | 250.00cm * 130.00cm * 180.00cm |
| Package Gross Weight | 1.000kg |
Company Advantages
Established: 2020
Core Expertise: Over 20 years of experience in welded pipe equipment.
Factory Size: Over 20,000 square meters of modern production base and warehouse.
Technical Team: Equipped with over 20 professional technicians dedicated to R&D and innovation.
Core Products: Precision welded pipe production lines, weld bead removal equipment, bright solution equipment, weld seam tracking systems, intelligent control systems, finishing rolling pipe bright solution equipment, rotary annealing equipment, etc.
Partners: Our relentless pursuit of excellence has earned the trust of numerous industry-leading companies, including Juli, Wujin, Sanhua, Plymouth (USA), and Binner (India).
Market Coverage: Our products are sold globally, exported to numerous countries and regions besides China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.
FAQ
Q1: What is your nature of your company:dealer or factory ?
A1: We are manufacturer with a big factory ,warmly welcome to visit our factory and contact us.
Q2: How about the warranty?
A2: All our products have one year quality warranty, during the warranty time, the spare parts
replacement is free. And we provide life long time technical support and other assistance.
Q3：How about the payment terms and delivery time ?
A3：· Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
· The big machines and big amount: 40% deposit, 60% before shipment · ·
(we will shoot total delivering process for customer's confirmation) and the related papers.
You can pay by T/T,L/C, Western Union or other ways.
·The machine delivery time is within 45-90 work days.
Q4: Which countries your products are exported to?
A4: Our products are sold all over the world and with related certifications.
Q5: Do you accept custom sizes?
A5: Yes.We accept customized orders and will meet clients' requirements
