Work Production Line
Work Production Line
Work Production Line

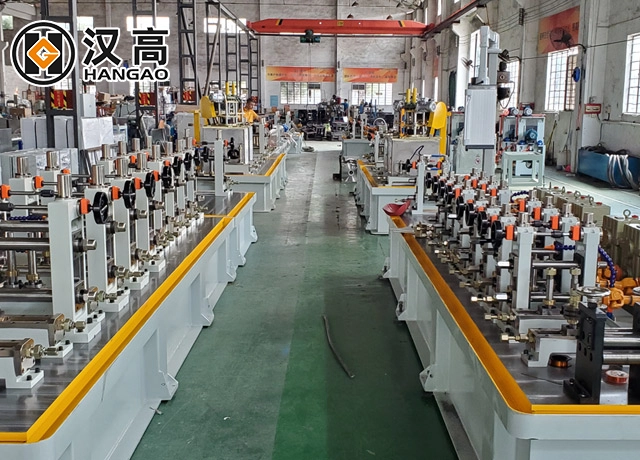

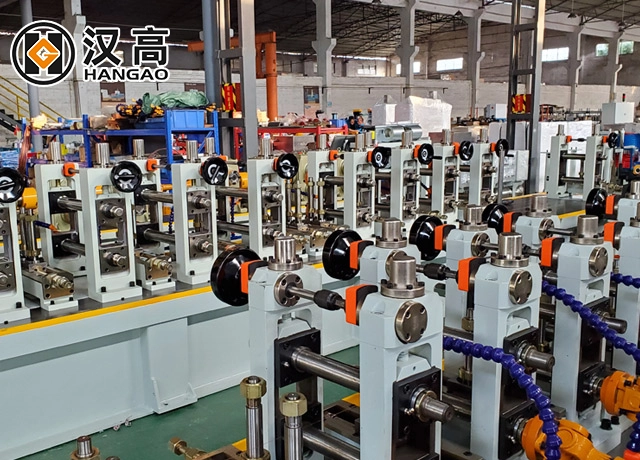

The main components of the Hangao Petrochemical production line are as follows: uncoiler, forming and welding section, weld straightening, weld grinding section, initial sizing section, bright solution treatment, sizing and straightening section, pipe cutter, and output feeding platform. The production line control system is equipped with intelligent & high precision PLC control and human-machine display, which are characterized by simplicity in operation, ease of use, safety, and reliability. We offer comprehensive pipe production line solutions and product solutions to our customers for manufacturing high-standard welded pipe products conforming to American standards such as ASTM A249, A269, A270, A312, and also national standards such as GB151, GB12771, HG-20537.1-4, DIN standards, and ISO standards. Besides, we share production processes with customers and offer comprehensive services, including factory planning solutions.
The stainless steel tube control pipe machine for petrochemical applications has a number of distinctive features, which include:
Corrosion-Resistant Alloy Material:
This petrochemica pipe production line utilizes highly corrosion-resistant alloy stainless steel, ensuring superior performance even in the harsh chemical environments of the oil and gas industry.
Stability Under Extreme Conditions:
The petrochemica pipe welding machine produces pipes with extremely strong resistance to high temperatures and pressures, maintaining excellent welding stability and safety even under such severe conditions.
Advanced Forming Technology:
Adopting advanced W-forming technology, the pipe dimensions and shapes fully comply with the precision and quality standards of the petrochemical industry.
Capability for Multi-Layered Wall Tube Production:
This petrochemical pipe welding production line is specifically designed for multi-wall stainless steel pipes that meet special process requirements such as sealing and internal pipe hygiene.
Intelligent Production Control:
Employing an intelligent automated control system, the production process can be monitored and controlled in real time, tracing parameters such as welding current, power, and frequency for each steel pipe, thereby improving overall production efficiency.
Flexible Application of Multiple Processes:
Depending on product characteristics and performance requirements, argon arc welding/laser welding/plasma welding processes can be used to meet the needs of 40x-120mm specifications.
Compliance with Industry Standards:
We ensure that the stainless steel pipes we produce meet the necessary industry standards and ISO quality standard certifications, thereby guaranteeing the reliability and safety of our products.
| Type | Material | Welding type | O.D. (mm) | Thickness (mm) | Capacity (m/min) | Motor Power (KW) |
| HZG-GS-30 | SST | TIG | 6-16 | 0.4-1.5 | 1.5-7 | 5.5 |
| HZG-GS-40 | SST | TIG | 16-50.8 | 0.5-2.5 | 3-6 | 7.5 |
| HZG-GS-50 | SST | TIG | 25.4-76 | 0.5-3.0 | 2-5 | 11 |
| HZG-GS-60 | SST | TIG | 50.8-114 | 1.0-4.0 | 0.5-3 | 15 |
| HZG-GS-80 | SST | TIG | 89-168 | 1.0-5.0 | 0.5-2 | 18.5 |
| HZG-GS-100 | SST | TIG | 114-219 | 2.0-8.0 | 0.5-1.5 | 30 |
| HZG-GS-120 | SST | TIG | 168-325 | 3.0-10.0 | 0.5-1.0 | 37 |
| Condition | New |
| Theory | Inverter |
| Application | Industry |
| Type | Petrochemical industry pipe production line |
| Scope of Application | Petrochemical industry pipe |
| O.D. Range | 6-325 mm |
| Thickness | 0.38-10.0 |
| Control Type | PLC |
| Certification | ISO9001 |
| Power(W) | 0 |
| Voltage | 380V 50Hz |
| Power Supply | 415V/3pH |
| Dimension(L*W*H) | 20.0m |
| Weight | 5-15t |
| Lead Time | 30-60 Days |
| Transport Package | Waterproof Film and Pallets |
| Production Capacity | 20 Sets Per Year, 1-7 M/Min |
| Package Size | 32.00cm * 1.50cm * 2.00cm |
| Package Gross Weight | 25000.000kg |
About us
Established:2020
Core Expertise:More than 20 years of experience in welded pipe equipment.
Factory Size:A modern production base and warehouse of more than 20,000 square meters.
Technical Team:There are over 30 professional technicians mainly engaged in R&D and innovation
Core Products:From the production of precision welded pipe lines to the manufacture of welding leveling equipment,
bright solution equipment, welding seam tracking system, intelligent control system,
finishing rolling pipe bright solution equipment, rotary annealing equipment, and so on.
R&D Strength:More than 30 national patents are held and new patent authorizations are regularly obtained.
Certifications:A national high-tech enterprise, certified with ISO9001 quality management system,
which guarantees the management of quality throughout the whole process from design to service.
Partners: Our unwavering pursuit of excellence has earned the trust of numerous industry leaders, including Juli, Wujin, Sanhua, Plymouth (USA), and Penna (India).
Market Coverage: Our products are sold globally, exported to numerous countries and regions besides China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.
FAQ
Q1: Do you have your own factory?
A1: Certainly, we are a manufacturer from China, and our factory is located in Yunfu, Guangdong, China.
You are welcome to visit our factory.
Q2: How about the warranty?
A2: We give a 1-year quality warranty for all the products sold. Within the warranty period, the spare parts
replacement will be free of charge. Besides that, we provide lifetime technical support and any other help.
Q3：How about the payment terms and delivery time ?
A3：· Payment terms for small machines: 100% payment by T/T/ Western Union/ Cash in advance.
· For big machines and big amounts: 40% deposit, 60% payment before shipment
(We will record the entire delivery process for the customer's confirmation.) and the delivery documents.
You can make a payment by T/T, L/C, Western Union, or other methods.
· The delivery time for the machine is within 45-90 working days.
Q4: Which countries your products are exported to?
A4: We sell our products all over the world and also obtain related certifications.
Q5: Do you accept custom sizes?
A5: That is right. We accept customized orders and are always willing to meet the clients' requirements.
