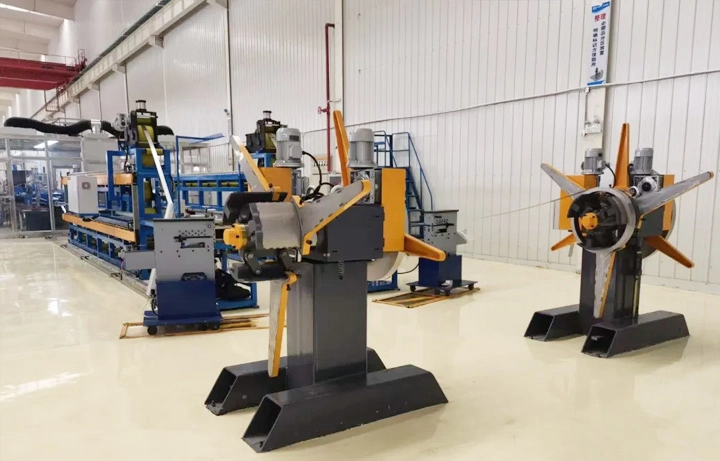

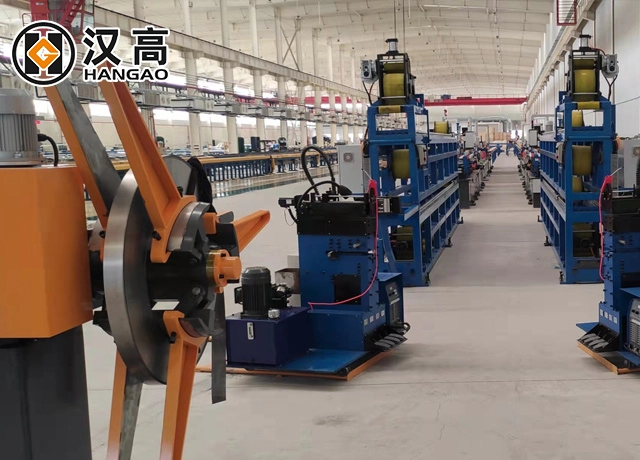

Double Head Electric Strip Uncoiler
Structural form: Double-shaft expansion and contraction uncoiler. The mandrel consists of four wedge-shaped blocks.
The screw expansion and contraction mandrel tightens the coil's inner diameter. The unwinding speed is regulated with a manual brake.
One roll is made online, and another roll is ready to allow continuous production.
√ Greater loading capacity
√ Stainless steel edging to prevent iron ions from steel strip contamination
√ Cleaner workshop environment

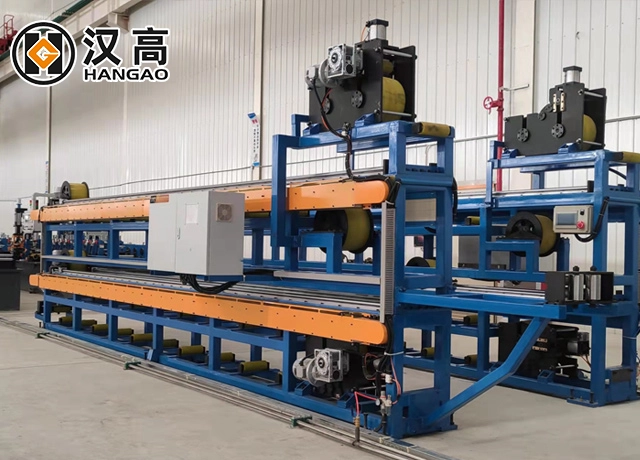

Self-designed horizontal strip accumulator
√ The longest stocking length can reach 200-300M

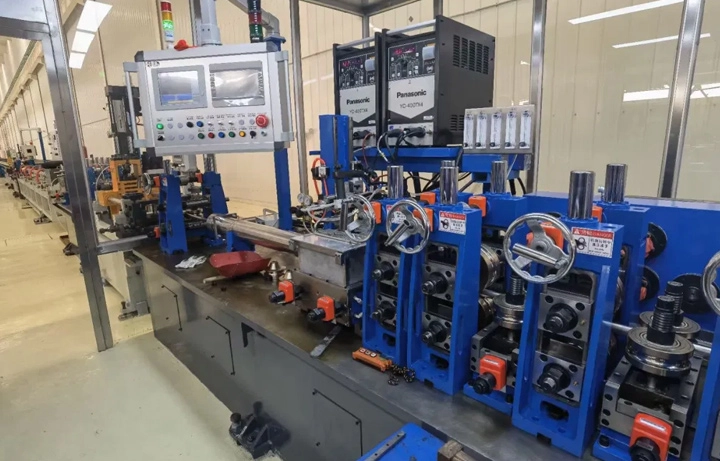

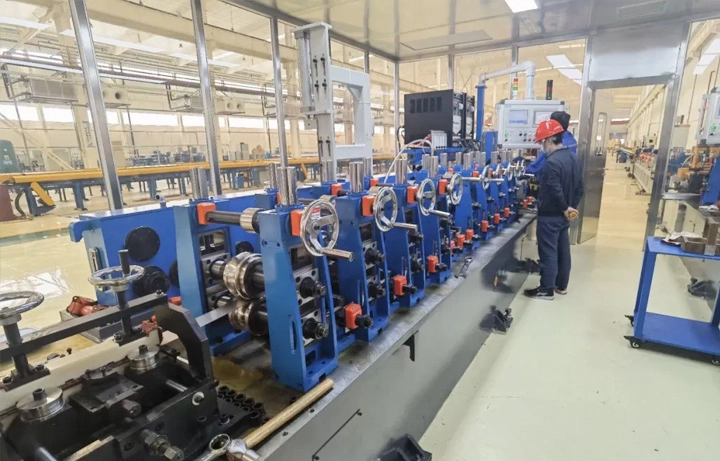

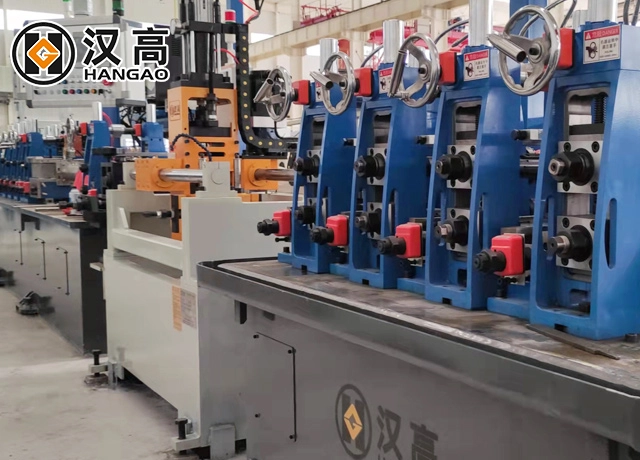

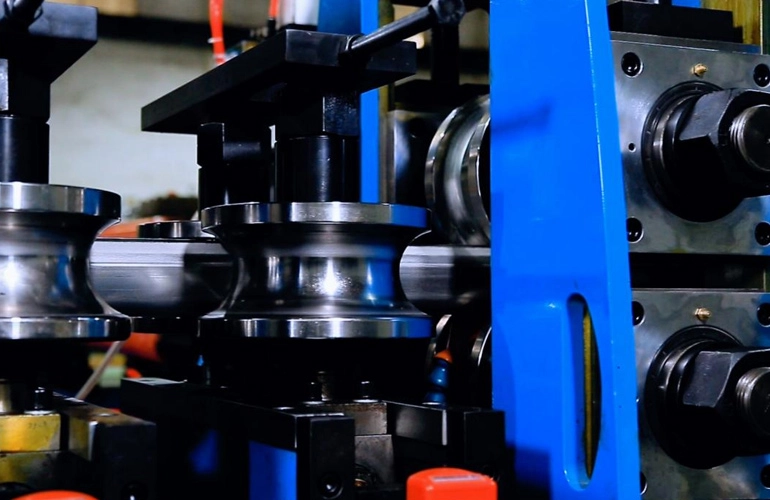

Forming & welding section
Function: In order to obtain stainless steel pipe products of different specifications, the metal strip is progressively deformed by alternately arranged horizontal roller stands and rollers in the vertical roll stand.
√ The frame utilizes the integral type to achieve a higher rigidity and less accumulated error.
√ The roller material is allowed to be customized.

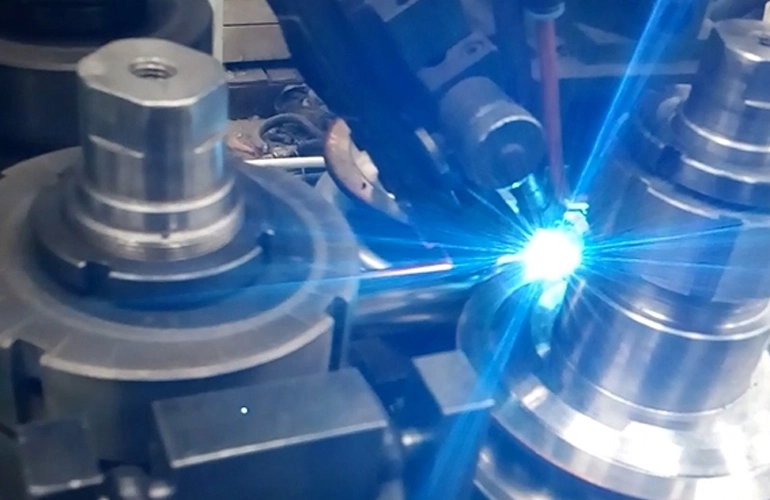

Protective atmosphere welding box
Function: Spot welding or seam welding the formed strip in a closed protective box.
Structure: horizontal roller device, extrusion device, welding system.
√ Different types of welding can be customized.
Online bright annealing heat treatment
After the stainless steel tube is first sized, it enters the online bright solid solution system, and the stainless steel tube in induction heating furnace is subjected to a certain tension (about 1%) through the speed control system. The heat treatment system is synchronized with the line speed, and the yield is high. The equipment is user-friendly, simple, has a high level of automation, and the heating power supply is very efficient. The power supply will not be damaged if the production line stops working.
The sealing system of the cooling channel is safe, stable, and reliable. The annealing outlet temperature is below 100 °C. The system is equipped with a closed-loop softened water cooling system.
Higher precision: shaft runout ≤0.01mm to ensure stable operation of the equipment.

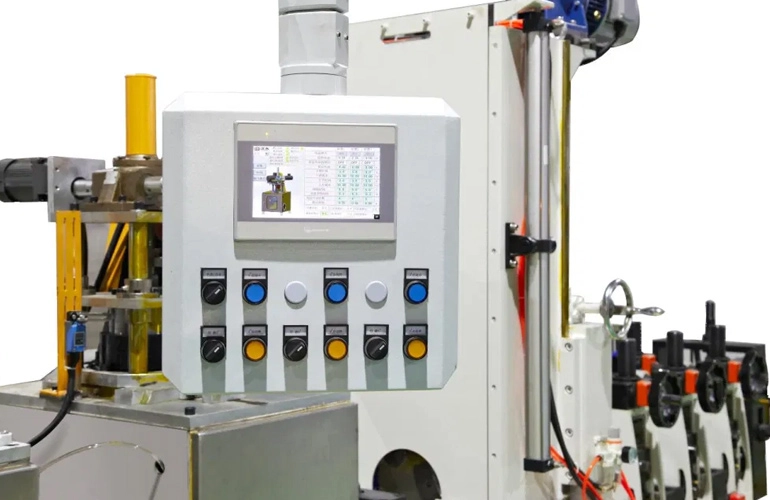

Easily Operated HMI Interface with IOT System
Faster TIG welding speed
Above 98% high yield rate
| Type | Material | Welding type | O.D. (mm) | Thickness (mm) | Capacity (m/min) | Motor Power (KW) |
| HZG-TG-30 | SST | TIG | 6-16 | 0.4-1.5 | 1.5-7 | 5.5 |
| HZG-TG-40 | SST | TIG | 16-50.8 | 0.5-2.5 | 3-6 | 7.5 |
| HZG-TG-50 | SST | TIG | 25.4-76 | 0.5-3.0 | 2-5 | 11 |
| HZG-TG-60 | SST | TIG | 50.8-114 | 1.0-4.0 | 0.5-3 | 15 |
| HZG-TG-80 | SST | TIG | 89-168 | 1.0-5.0 | 0.5-2 | 18.5 |
| HZG-TG-100 | SST | TIG | 114-219 | 2.0-8.0 | 0.5-1.5 | 30 |
| HZG-TG-120 | SST | TIG | 168-325 | 3.0-10.0 | 0.5-1.0 | 37 |
| Condition | New |
| Theory | Inverter |
| Application | Industry |
| Type | Titanium Tube Production Line |
| Main Voltage | 220/380/415/420/440V |
| Pipe Diameter | 6-325mm |
| Thickness | 0.4mm-3.0mm |
| Capacity | 3-15m/Min |
| Horizontal Roller | 50mm |
| Vertical Roller | 40mm |
| Voltage | 380V 50Hz |
| Roller Material | 42CrMo/ SKD11 |
| Certification | ISO9001 |
| Use Life | 20 Years |
| Lead Time | 120 Days |
| Principle | Inverter |
| Welding | TIG / Plasma Welding |
| Transport Package | Waterproof Film and Pallets |
| Specification | Customized |
| Production Capacity | 20 Sets Per Year |
| Package Size | 32.00cm * 1.50cm * 1.80cm |
| Package Gross Weight | 25000.000kg |
Some of the unique features of the stainless steel tube control pipe machine for petrochemical applications are:
Corrosion-Resistant Alloy Material:
This titanium pipe production line utilizes highly corrosion-resistant alloy stainless steel, ensuring superior performance even in the harsh chemical environments of the oil and gas industry.
Stability Under Extreme Conditions:
The titanium pipe welding machine produces pipes with extremely strong resistance to high temperatures and pressures, maintaining excellent welding stability and safety even under such severe conditions.
Advanced Forming Technology:
Adopting advanced W-forming technology, the pipe dimensions and shapes fully comply with the precision and quality standards of the petrochemical industry.
Capability for Multi-Layered Wall Tube Production:
This titanium pipe welding production line is specifically designed for multi-wall stainless steel pipes that meet special process requirements such as sealing and internal pipe hygiene.
Intelligent Production Control:
Employing an intelligent automated control system, the production process can be monitored and controlled in real time, tracing parameters such as welding current, power, and frequency for each steel pipe, thereby improving overall production efficiency.
Flexible Application of Multiple Processes:
Depending on product characteristics and performance requirements, argon arc welding/laser welding/plasma welding processes can be used to meet the needs of 40x-120mm specifications.
Compliance with Industry Standards:
We ensure that the stainless steel pipes we produce meet the necessary industry standards and ISO quality standard certifications, thereby guaranteeing the reliability and safety of our products.
Our Advantages
Established: 2020
Core Expertise: More than 20 years of welded pipe equipment experience.
Factory Size: More than 20,000 square meters of a modern production base and warehouse.
Technical Team: More than 30 professional technicians are devoted to R&D and innovation, and the team is well-equipped to take on challenges.
Core Products: Precision-welded pipe production lines, welding leveling equipment, bright solution equipment,
weld seam tracking systems, intelligent control systems, finishing rolling pipe bright solution equipment,
rotary annealing equipment, etc.
R&D Strength: Possesses more than 30 national patents and is constantly obtaining new patents
authorizations.
Certifications: National high-tech enterprise, certified with ISO9001 quality management system,
guarantee of quality from design to service.
Partners: Our unwavering pursuit of excellence has earned the trust of numerous industry leaders, including Juli, Wujin, Sanhua, Plymouth (USA), and Penna (India).
Market Coverage: Our products are sold globally, exported to numerous countries and regions besides China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.
FAQ
Q1: Do you have your own factory?
A1: Yes, we are a Chinese manufacturer and our factory is located in Yunfu, Guangdong, China.
Welcome to our factory!
Q2: How about the warranty?
A2: We offer a one-year quality warranty on all our products. During the warranty period, spare parts replacement is free. Besides, we provide lifelong technical support and other assistance.
Q3：How about the payment terms and delivery time ?
A3：- Payment terms of small machines: 100% T/T/ Western Union/Cash in advance.
- The big machines and big amount: 40% deposit, 60% before shipment · ·
We will record the entire process of delivery for the customer's confirmation and the related papers.
You can make payment by T/T, L/C, Western Union, or other means.
- The machine delivery time is within 45-90 work days.
Q4: Which countries your products are exported to?
A4: We have our products all over the world, along with relevant certifications.
Q5: Do you accept custom sizes?
A5: Yes. We accept customized orders and will meet clients' requirements.
