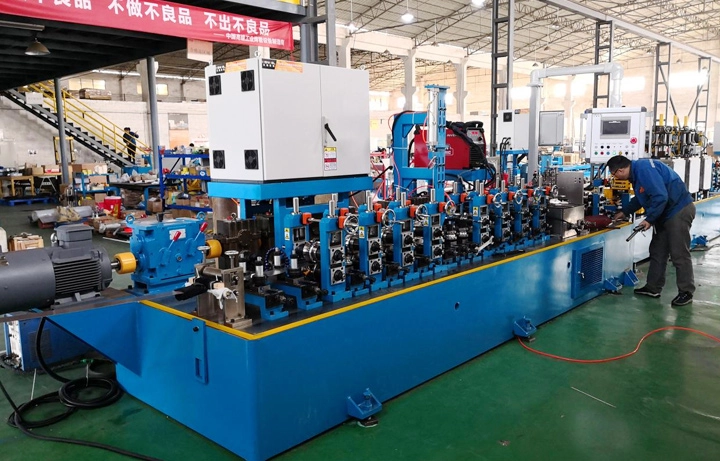

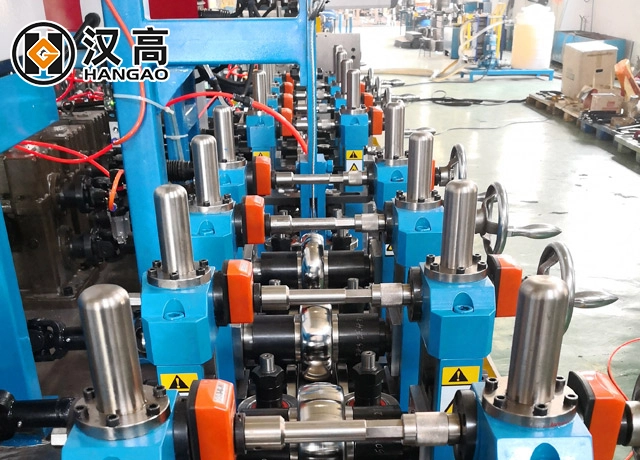

Forming Section

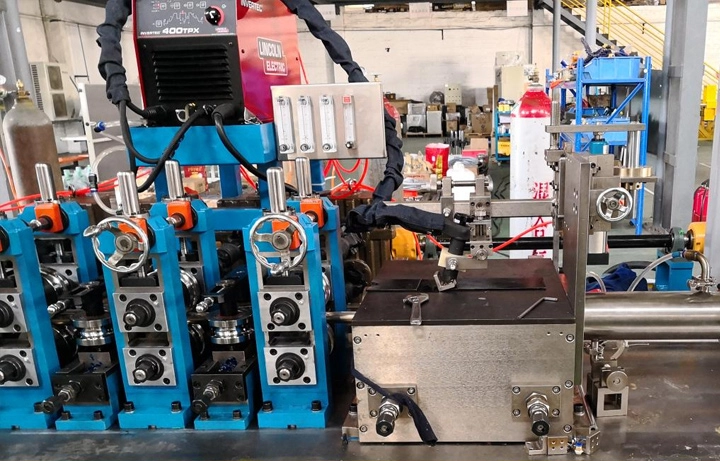

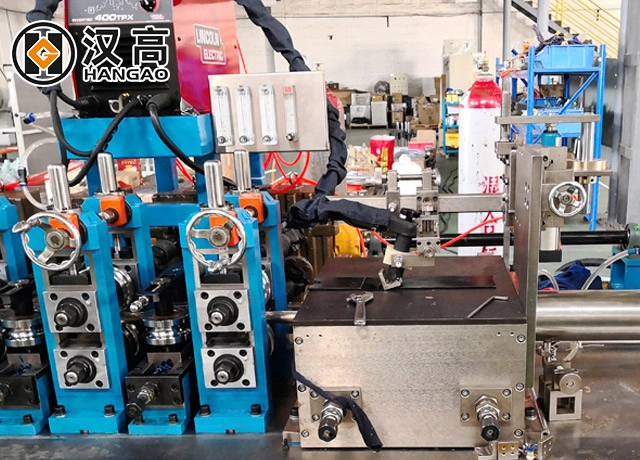

Welding Section
Welding Protective Box

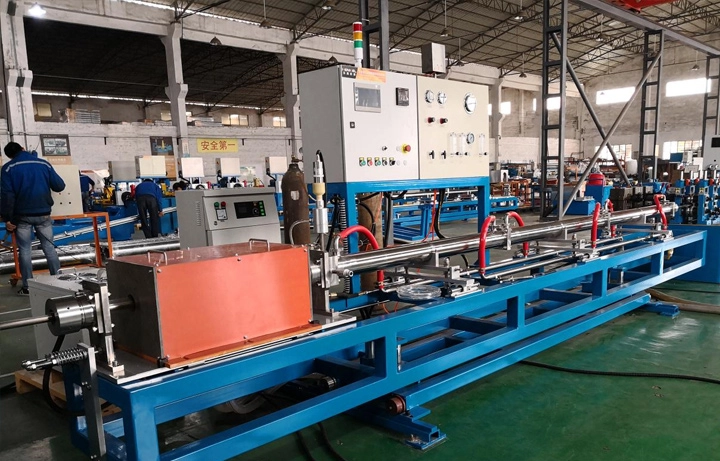

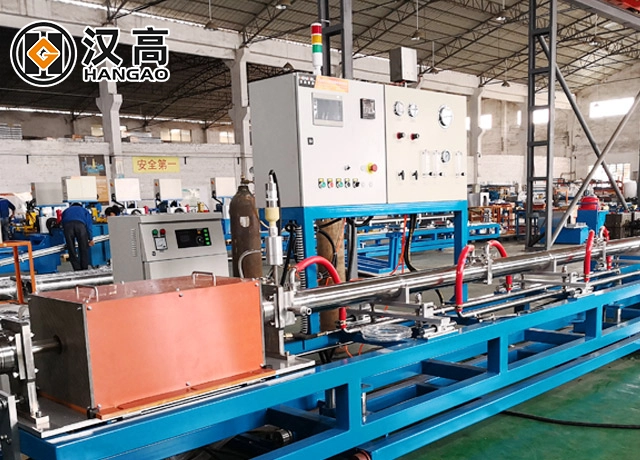

Bright Annealing Section

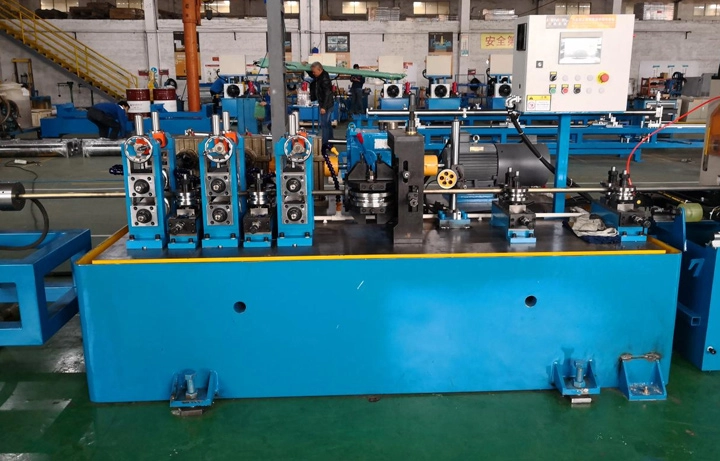

Sizing Section

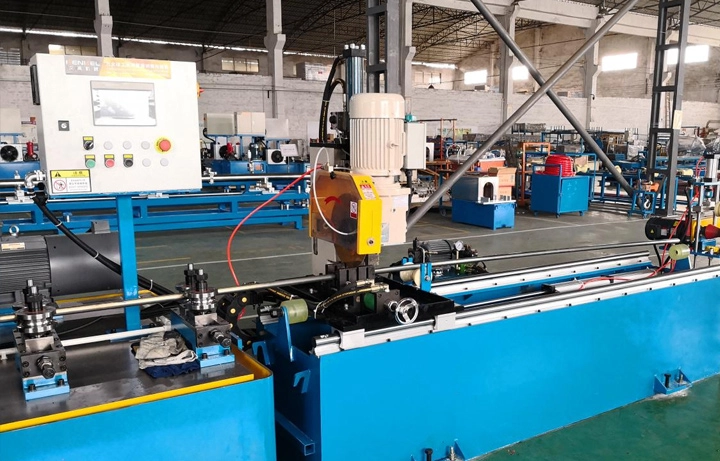

Cutting Section
Hygienic Material Standards, Corrosion and High Temperature Resistance:
Hangao's sanitary fluid tubing production line uses high-quality materials that meet sanitary standards, ensuring that the produced stainless steel round tubing meets the material, surface finish, and sealing requirements for sanitary fluid transport.
Intelligent Control System, Digital Production:
This sanitary tubing welding machine is equipped with an advanced control system that precisely controls the pipe's dimensions, wall thickness, and other processing parameters, ensuring the final product meets sanitary standards.
High-Efficiency Production, Up to 15m/min:
This product utilizes a high-efficiency W-forming production design, increasing pipe manufacturing speed by 25% and shortening the production cycle by 15-20%, meeting the precision and quality requirements of sanitary fluid tubing.
Easy to Clean and Maintain, Saving Maintenance Costs:
The structure of this roll forming pipe mill makes it easy to clean, preventing cross-contamination and facilitating maintenance. This ensures the production of high-quality stainless steel sanitary tubing while also saving on machine maintenance costs.
Industry Certification Compliance, Stable Product Quality:
When designing and manufacturing the sanitary fluid tubing control machine, the Hangao team ensures it complies with relevant sanitary and quality ISO certification standards, enhancing the product's reputation.
Wide range of applications:
The production process of this roll forming machine is suitable for various sanitary fluid pipes such as 316L, duplex steel, and nickel-based alloys, thereby meeting the corrosion resistance, seamlessness, and flexibility requirements of different customers and improving the versatility of sanitary fluid pipe production lines.
| Type | Material | Welding type | O.D. (mm) | Thickness (mm) | Capacity (m/min) | Motor Power (KW) |
| HZG-WS-30 | SST | TIG | 6-16 | 0.4-1.5 | 1.5-7 | 5.5 |
| HZG-WS-40 | SST | TIG | 16-50.8 | 0.5-2.5 | 3-6 | 7.5 |
| HZG-WS-50 | SST | TIG | 25.4-76 | 0.5-3.0 | 2-5 | 11 |
| HZG-WS-60 | SST | TIG | 50.8-114 | 1.0-4.0 | 0.5-3 | 15 |
| HZG-WS-80 | SST | TIG | 89-168 | 1.0-5.0 | 0.5-2 | 18.5 |
| HZG-WS-100 | SST | TIG | 114-219 | 2.0-8.0 | 0.5-1.5 | 30 |
| HZG-WS-120 | SST | TIG | 168-325 | 3.0-10.0 | 0.5-1.0 | 37 |
| Condition | New |
| Theory | Inverter |
| Application | Industry |
| Type | Sanitary Pipe Production Line |
| Scope of Application | Sanitary Tube/ Water Pipes |
| O.D. Range | 6-325 mm |
| Thickness | 0.38-10.0 |
| Control Type | PLC |
| Certification | ISO9001 |
| Power(W) | 0 |
| Voltage | 380V 50Hz |
| Power Supply | 415V/3pH |
| Dimension(L*W*H) | 20.0m |
| Weight | 5-15t |
| Lead Time | 30-60 Days |
| Transport Package | Waterproof Film and Pallets |
| Production Capacity | 20 Sets Per Year, 1-7 M/Min |
| Package Size | 32.00cm * 1.50cm * 2.00cm |
| Package Gross Weight | 25000.000kg |
About Us
Established: 2020
Core Expertise: We have accumulated more than 20 years of knowledge and expertise in welded pipe equipment.
Factory Size: Our production and warehouse facilities occupy a combined area of over 20,000 square meters.
Technical Team: We have a group of more than 20 professional technicians who are dedicated to R&D and innovation.
Core Products: Production lines for precision-welded pipes, welding leveling machines, bright solution equipment, weld seam tracker systems, intelligent control systems, finishing rolling pipe bright solution equipment, rotary annealing equipment, etc.
R&D Strength: We have more than 30 national patents and continue to acquire new patents regularly.
Certifications: We are a national high-tech enterprise, ISO9001 certified for our quality management system, and we ensure quality in every stage from design to service.
Partners: Our unwavering pursuit of excellence has earned the trust of numerous industry leaders, including Juli, Wujin, Sanhua, Plymouth (USA), and Penna (India).
Market Coverage: Our products are sold globally, exported to numerous countries and regions besides China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.
FAQ
Q1: Do you have your own factory?
A1: Indeed, we are a factory located in China. Our factory is situated in Yunfu, Guangdong, China.
You are warmly welcome to visit us.
Q2: How about the warranty?
A2: We supply all of our products with a one-year quality warranty. During the warranty period, spare parts
replacement is free of charge. Besides, we offer our clients technical support and various kinds of help for a
lifetime.
Q3：How about the payment terms and delivery time ?
A3：· Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
· For the big machines and big amount: 40% deposit, 60% before shipment
Your wallet doesn't have to get too empty because you can opt for T/T, L/C, Western Union, or even other payment methods.
·The machine delivery time is within 45-90 work days.
Q4: Which countries your products are exported to?
A4: Our products are sold worldwide and come with different certifications.
Q5: Do you accept custom sizes?
A5: Yes. We accept customized orders and are willing to work with clients to meet their requirements.
