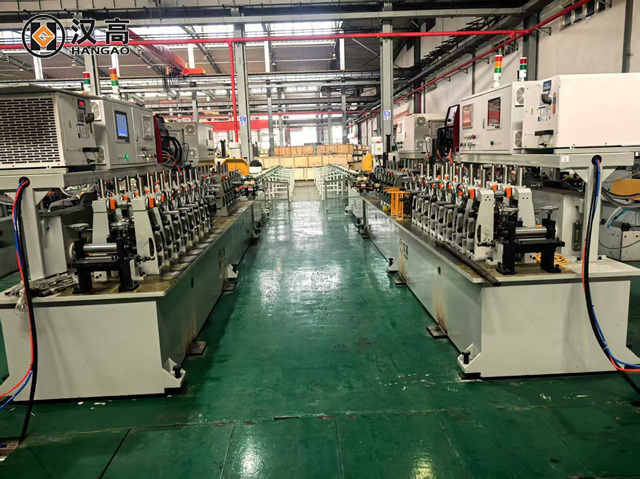

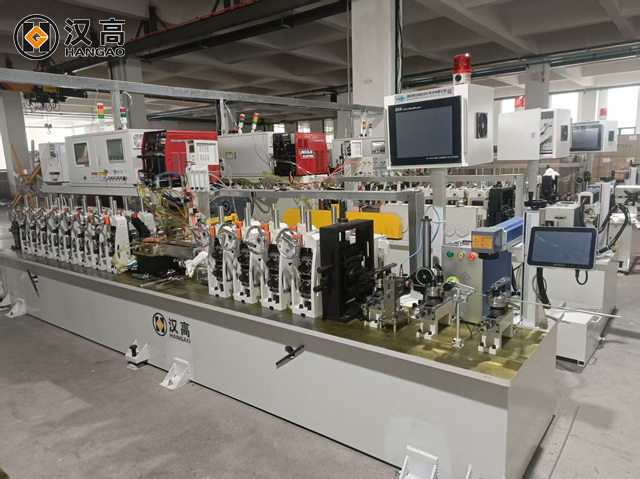

The stainless steel refrigerant pipe production line is a high-performance pipe-making equipment specifically designed for the refrigeration industry chain, dedicated to achieving continuous and large-scale manufacturing of high-quality stainless steel refrigerant pipes.

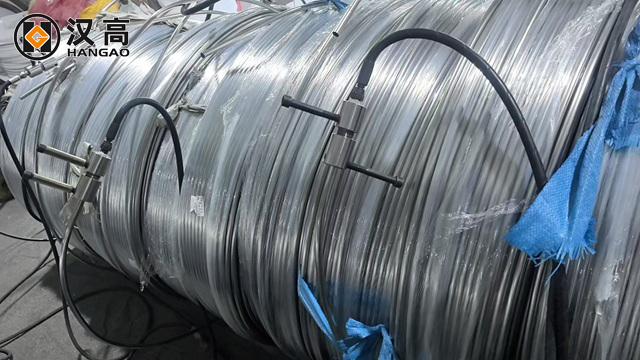

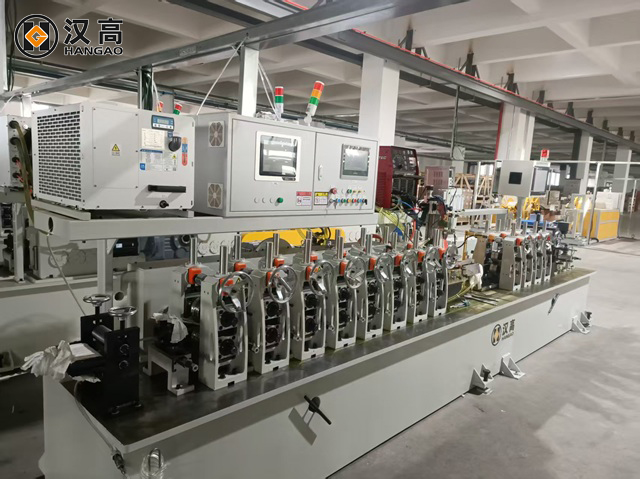

Stainless steel refrigerant pipes are widely used in the refrigerant circulation piping of central air conditioning, multi-split systems, and split-type air conditioning systems. After being formed using automated coiling technology, the pipes can be precisely coiled, facilitating concealed installation and optimized space layout in high-rise buildings, commercial complexes, and residential projects.
As the core channel carrying the refrigerant circulation, stainless steel refrigerant pipes must possess excellent sealing performance and pressure resistance. The production line adopts advanced single-cathode welding technology to ensure dense welds and smooth inner walls, maintaining efficient and stable refrigerant flow in the pipeline.
The pipes produced by this stainless steel refrigerant pipe production line are suitable for compressor connecting pipes, heat exchanger piping, and automotive air conditioning system piping. The tubing possesses excellent vibration resistance and fatigue resistance, meeting the stringent assembly requirements of various precision refrigeration equipment and vehicle air conditioning systems.
From household refrigerators and freezers to commercial refrigerated display cases, ice makers, and cold storage systems, stainless steel refrigerant tubing is the preferred material for evaporator and condenser inlet and outlet piping. Through flexible process adjustments, the production line can simultaneously produce straight tubing, coiled tubing, and threaded tubing, comprehensively covering the diverse needs of the home appliance and cold chain industries.

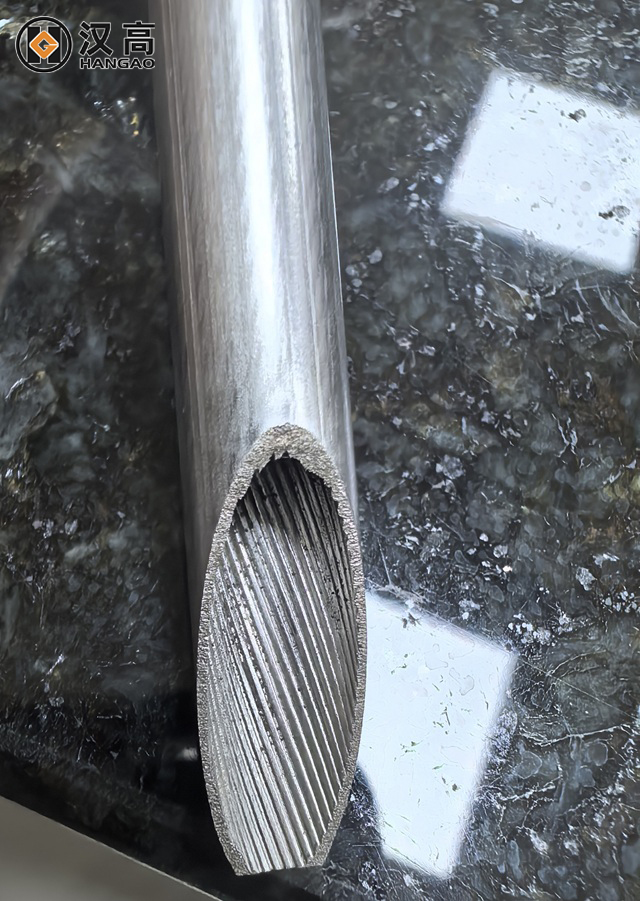

Utilizing a quick-change mold system, the stainless steel refrigerant tubing production line can manufacture threaded tubing, irregularly shaped cross-section tubing, and high-precision coiled tubing assemblies. These special tubing materials can meet the turning, connection, and reinforcement requirements in complex refrigeration circuits, significantly improving the ease of system installation and overall sealing reliability.
| Type | Material | Welding type | O.D. (mm) | Thickness (mm) | Motor Power (KW) | Size(L*W*H)(m) |
| HZG-GS-40x | SST | TIG | 6-28 | 0.4-1.5 | 5.5 | Customized |
| HZG-GS-40 | SST | TIG | 15-50.8 | 0.5-2.5 | 7.5 | Customized |
| HZG-GS-50 | SST | TIG | 25.4-76.2 | 0.5-3.0 | 11 | Customized |
| HZG-GS-60 | SST | TIG | 60.3-114 | 1.0-4.0 | 15 | Customized |
| HZG-GS-80 | SST | TIG | 89-168 | 1.0-5.0 | 18.5 | Customized |
| HZG-GS-100 | SST | TIG | 114-219 | 2.0-8.0 | 30 | Customized |
| HZG-GS-120 | SST | TIG | 168-325 | 3.0-10.0 | 37 | Customized |
The unique features of the stainless steel refrigerant pipe production line include:
High-Speed Continuous Production, Superior Efficiency:
The stainless steel refrigerant pipe production line boasts a continuous operation capacity of up to 15m/min, enabling high-volume, high-efficiency manufacturing. This effectively shortens the delivery cycle of stainless steel refrigerant pipes, fully meeting the concentrated supply demands of the refrigeration industry during peak seasons.
Clean Manufacturing Environment, Safe and Compliant:
The production line adopts an energy-saving and environmentally friendly production mode, maintaining a clean workshop environment throughout the process. It has passed safety production standardization certification, ensuring that each stainless steel refrigerant pipe undergoes precision forming and welding under dust-free and pollution-free conditions.

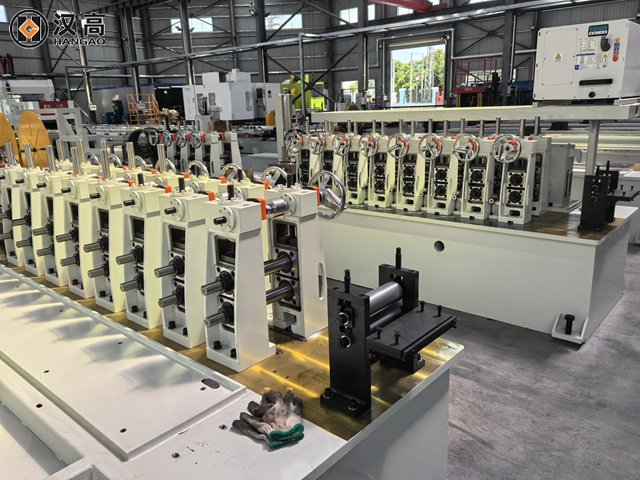

Precision Roll Forming, Stable Dimensions:
Utilizing segmented deformation forming technology and a high-rigidity roll assembly design, cumulative errors are effectively suppressed, ensuring the consistency of the outer diameter accuracy and roundness of the stainless steel refrigerant pipes. It can stably produce high-quality pipes in various commonly used specifications such as 40/50/60/80/100/120mm.
Advanced tubing manufacturing technology, yield exceeding 97%:
Utilizing a unique W-forming tubing manufacturing technology, the line guarantees high precision and superior quality of stainless steel coil products.
Flexible structure and gas/oil volume adjustment, real-time production status monitoring:
The flexible structural design allows for rapid adjustment to accommodate the production of coils ranging from 40-120mm and various coil types, including round, square, and U-shaped coils, thus adapting to market changes in round, square, and U-shaped coils.
Intelligent production line control system for digital production:

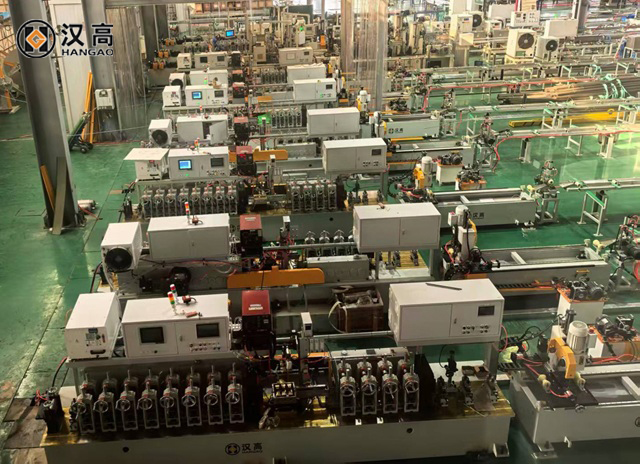

The factory's production lines are equipped with intelligent automated control systems that enable highly automated monitoring and adjustment of the production process, tracing parameters such as welding current, power, and frequency for each steel pipe.
Precise and reliable quality, conforming to ISO quality standards:
The coils produced by Hangao's coil production lines meet extremely stringent ASTM and ISO quality standards, ensuring product reliability and stable performance.
| Condition | New |
| Theory | Inverter |
| Application | Industry |
| Type | Stainless steel refrigerant pipe production line |
| Scope of Application | Refrigeration/Air Conditioning |
| O.D. Range | 6-325 mm |
| Thickness | 0.38-10.0 |
| Control Type | PLC |
| Certification | ISO9001 |
| Power(W) | Customized |
| Voltage | 380V 50Hz |
| Power Supply | 415V/3pH |
| Dimension(L*W*H) | Customized |
| Weight | 5-15t |
| Lead Time | 60-90 Work Days |
| Transport Package | Waterproof Film and Pallets |
| Production Capacity | 20 Sets Per Year, 1-15 M/Min |
| Package Size | Customized |
| Package Gross Weight | 25000.000kg |
The Hangao stainless steel refrigerant pipe production line is a cost-effective entry-level option. It not only produces standard stainless steel refrigerant pipes but can also be configured to achieve automated coiling, internal threaded pipe, and other special processes. Combined with precision welding techniques such as single-cathode welding, the finished products exhibit reliable performance in terms of strength, sealing, and appearance quality. Whether manufacturing refrigeration components, building decorations, or fluid transport pipelines, this production line provides a stable and efficient manufacturing foundation.
Company Advantages
Established: 2020
Core Expertise: More than 20 years of experience in the welded pipe equipment industry.
Factory Size: Over 20,000 square meters of modern production base and warehouse.
Technical Team: More than 20 professional technicians are focusing on R&D and innovation.
Core Products: Precision-welded pipe manufacturing lines, welding leveling machines, bright solution equipment, weld seam tracking systems, intelligent control systems, finishing rolling pipe bright solution equipment, rotary annealing equipment, etc.
R&D Strength: Has more than 30 national patents and is constantly receiving new patent authorizations.
Certifications:
National high-tech enterprise has been certified with the ISO9001 quality management system, which guarantees the quality of the whole process from design to service.
Partners: Our unwavering pursuit of excellence has earned the trust of numerous industry leaders, including Juli, Wujin, Sanhua, Plymouth (USA), and Penna (India).
Market Coverage: Our products are sold globally, exported to numerous countries and regions besides China, including Dubai, Russia, India, South Korea, Thailand, Pakistan, and Vietnam.
FAQ
Q1: Do you have your own factory?
A1: We are a manufacturer in China, and our factory is located in Yunfu, Guangdong, China. Welcome to visit us.
Q2: What about your warranty service?
A2：We offer a one-year quality warranty on all our products. During the warranty period, you can replace spare
parts for free. To make sure that your machine lasts a long time, you could just follow our advice on it.
Moreover, we provide professional lifelong technical support and other assistance.
Q3：How to install your machine?
A3：Firstly, don't worry，our machines are easy to install and operate.
Secondly, we will provide you with a detailed paper, Installation Manual, and videos that you can learn from until you get the command of it.
Thirdly, our engineers will be sent to your factory to assist you in installing and adjusting the machines .
Q4：Which export port you use?
A4：Any port in China. Usually, we will use the Shenzhen port. However, it can be appointed as you prefer.
Q5: Do you accept custom sizes?
A5: Yes, we carry the custom-sized orders and will meet clients' requirements
