I. Industry Background: Transition from Traditional Welding to Precision Laser Welding
As manufacturing evolves toward intelligence and high-end applications, welding technology has become a crucial part of modern metal forming. In industries such as stainless steel tubing, refrigeration, heat exchangers, and air conditioning, laser welding has increasingly replaced traditional TIG and MAG methods due to its concentrated energy, minimal heat-affected zone, smooth seams, and extremely low deformation.
Laser welding enhances not only production speed and weld strength but also introduces breakthroughs in visual monitoring, automated control, and real-time correction, ushering in an era of controllable, visible, and traceable welding quality.
II. Metallographic Comparison: Details Reveal the Difference

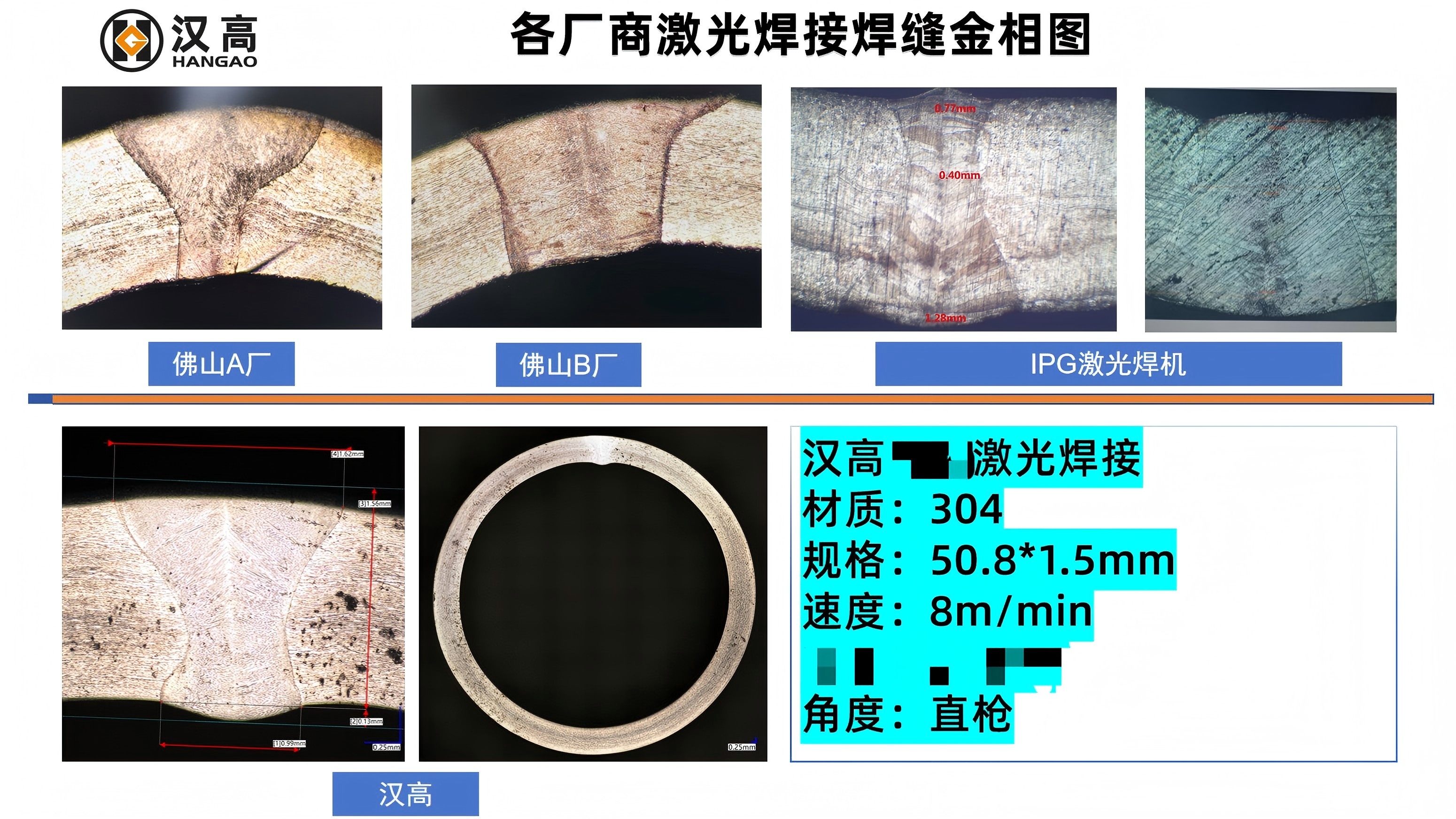

The metallographic images clearly illustrate the performance gap among different manufacturers:
Factory A (Foshan): Wide weld bead with excessive heat input; uneven structure in the center and noticeable grain coarsening in the heat-affected zone.
Factory B (Foshan): Shallow weld depth and insufficient fusion, leading to potential porosity and incomplete penetration.
IPG Laser Sample: Generally stable weld, but slight uneven energy distribution and rough grain texture.
HANGAO Laser Welding: Shows a symmetric “fish-scale” structure with fine grains, consistent penetration, no cracks or pores. The weld microstructure is uniform, and the transition
weld and base metal is smooth, reflecting superior metallurgical bonding quality.
Parameters:
Material: 304 stainless steel
Size: Φ50.8 × 1.5 mm
Welding Speed: 8 m/min
Angle: Straight welding
Microscopic analysis shows complete fusion and uniform grain structure in HANGAO’s welds, proving precise control of power modulation, focus stability, and strip feeding — hallmarks of advanced laser welding technology.
The self-developed dual electromagnetic control system and power feedback algorithm dynamically adjust laser energy in real time, ensuring consistent weld formation.
2. Intelligent Visual Monitoring
Equipped with high-definition cameras and AI-based algorithms, the system continuously monitors the molten pool and detects anomalies automatically, achieving zero-defect production.
3. Multi-Cathode Welding System
In high-reflective materials such as stainless steel and titanium alloys, HANGAO’s three-cathode design increases penetration depth and reduces reflection losses.
4. Stable Strip Feeding and Forming
The synchronized forming mechanism keeps the weld seam centered and aligned, preventing overlap or offset issues.

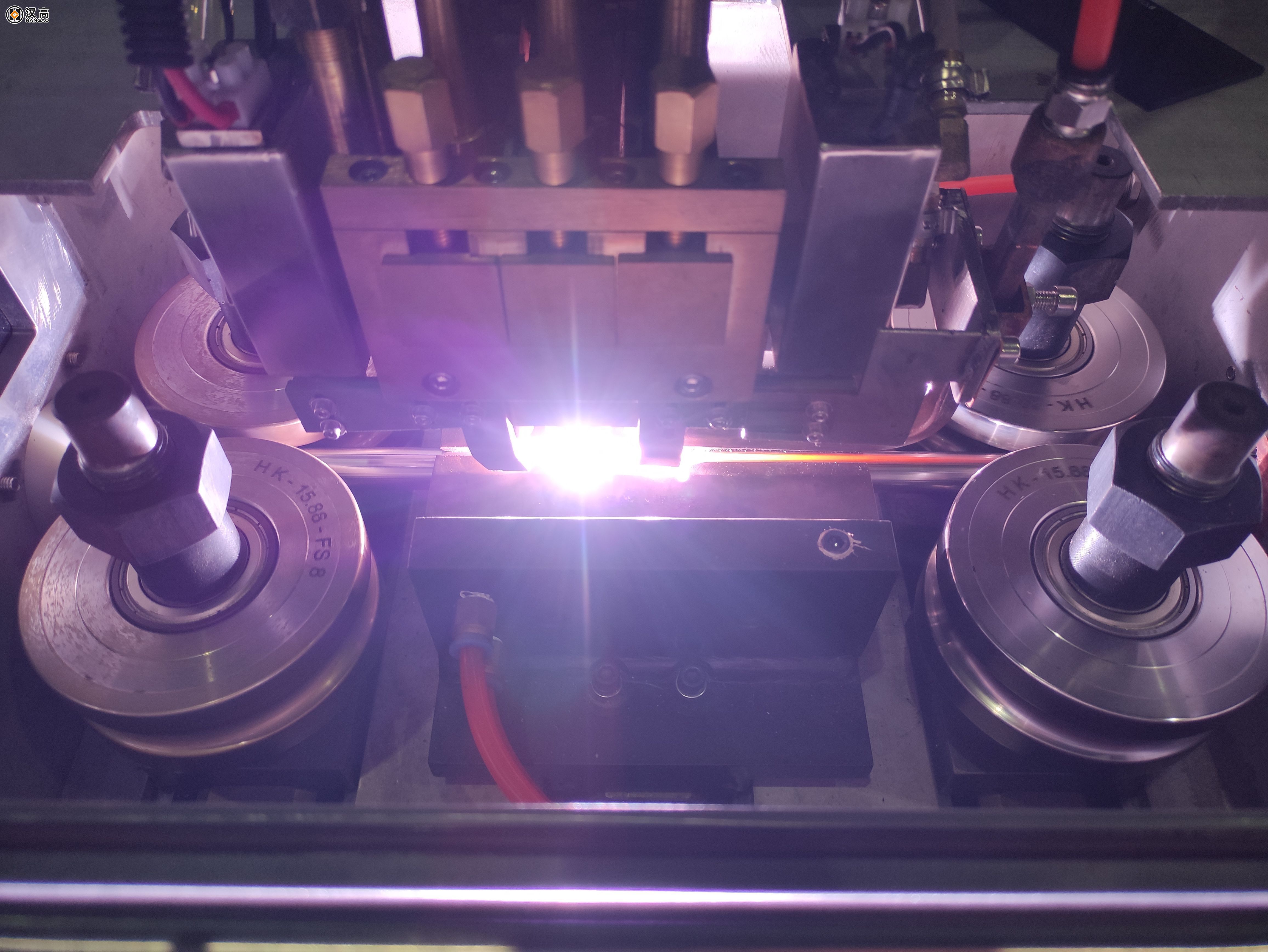

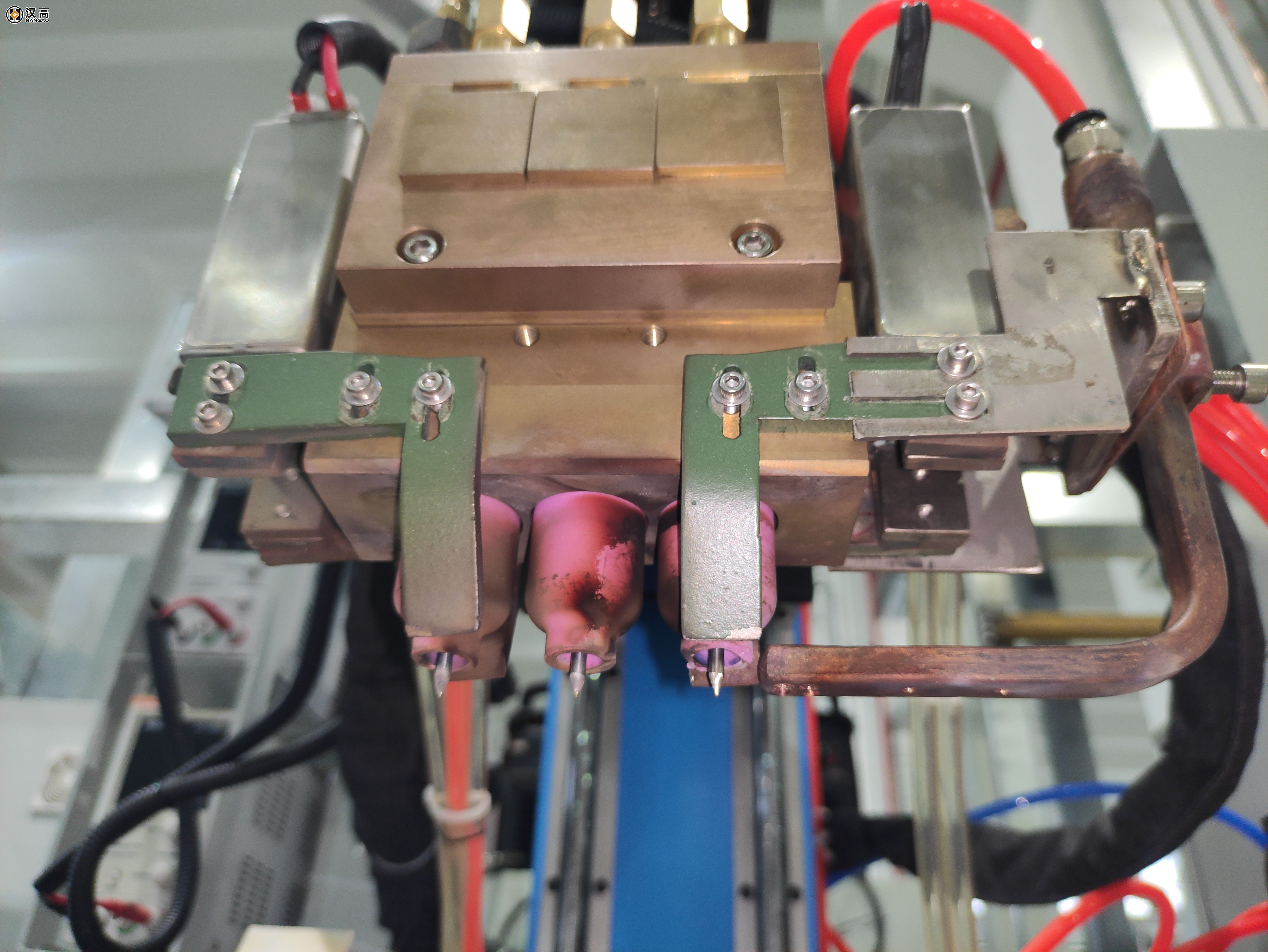

3-Tig Torch & Welding Section
IV. Application Fields and Economic Benefits
HANGAO’s laser welding systems are widely used in:
Stainless Steel Decorative Tubes — smooth and seamless welds with perfect polishability.
HVAC and Refrigeration Tubes — improved pressure resistance and gas tightness.
Heat Exchanger Tubes — dense microstructure and high corrosion resistance.
Food & Medical Industries — hygienic welding without impurities or contamination.
Compared with conventional welding, HANGAO laser welding increases production efficiency by 30–50%, reduces energy consumption by over 20%, and greatly enhances product yield and reliability.
V. Correlation Between Weld Microstructure and Product Performance
The weld microstructure is not only a reflection of welding quality but also a key determinant of product reliability and safety. A high-quality weld should exhibit:
Complete Metallurgical Fusion – Smooth transition between the weld and base metal, without voids or inclusions.
Fine and Uniform Grains – Equiaxed grains distributed evenly to enhance fatigue strength and corrosion resistance.
Defect-Free Structure – Absence of cracks, pores, or shrinkage defects ensures long-term sealing and pressure stability.
HANGAO’s laser welding system controls the molten pool temperature gradient and cooling rate precisely through multi-cathode energy distribution and real-time feedback, achieving refined grain structures and consistent mechanical properties. This superiority is not limited to laboratory inspection—it has been verified through long-term operation of HVAC and industrial tube systems under high pressure, temperature, and refrigerant cycles, proving HANGAO’s outstanding reliability.
Comparison of the tig and laser
VII. Industry Significance and Future Outlook
The evolution of laser welding is driving the stainless steel tube industry from “experience-based welding” to “data-driven welding.” With intelligent visual monitoring, power feedback control, and traceable data systems, weld quality becomes measurable, predictable, and fully controllable.
Looking ahead, HANGAO continues to innovate in:
Adaptive Laser Power Systems – Automatically matching laser parameters with material reflectivity and thickness.
Full-Process Intelligent Inspection – Real-time detection and classification of weld defects.
Green Manufacturing – Reducing energy consumption and emissions, supporting global sustainability goals.
HANGAO laser welding is not only about better welds—it represents a technological leap for the intelligent and digital transformation of the entire tube manufacturing industry.

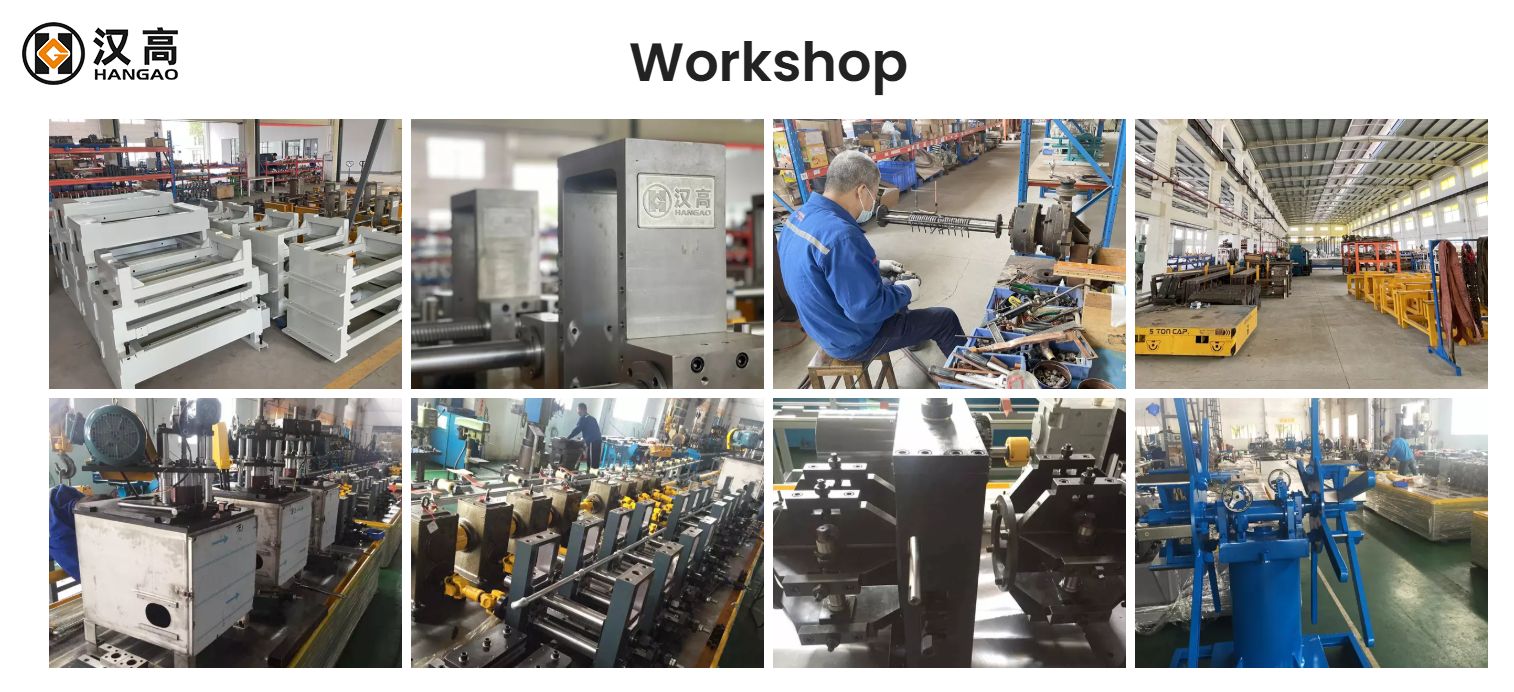

In Hangao Workshop
Conclusion
A weld is not merely a joint — it is the foundation of quality and trust. Through continuous innovation, Guangdong HANGAO Technology Co., Ltd. has established a strong technological advantage in the field of laser welding. With stable seam formation, intelligent process control, and consistent quality, HANGAO provides global customers with efficient, reliable, and sustainable welding solutions.
