Tube mills are essential equipment in manufacturing industries, used for producing a variety of tubular products. The performance of these tube mills is significantly influenced by the welding techniques employed, particularly TIG (Tungsten Inert Gas) and plasma welding. This article explores the impact of these welding methods on the performance of tube mills, highlighting their advantages, limitations, and the factors that affect their efficiency.
1. Overview of Tube Mill Operations

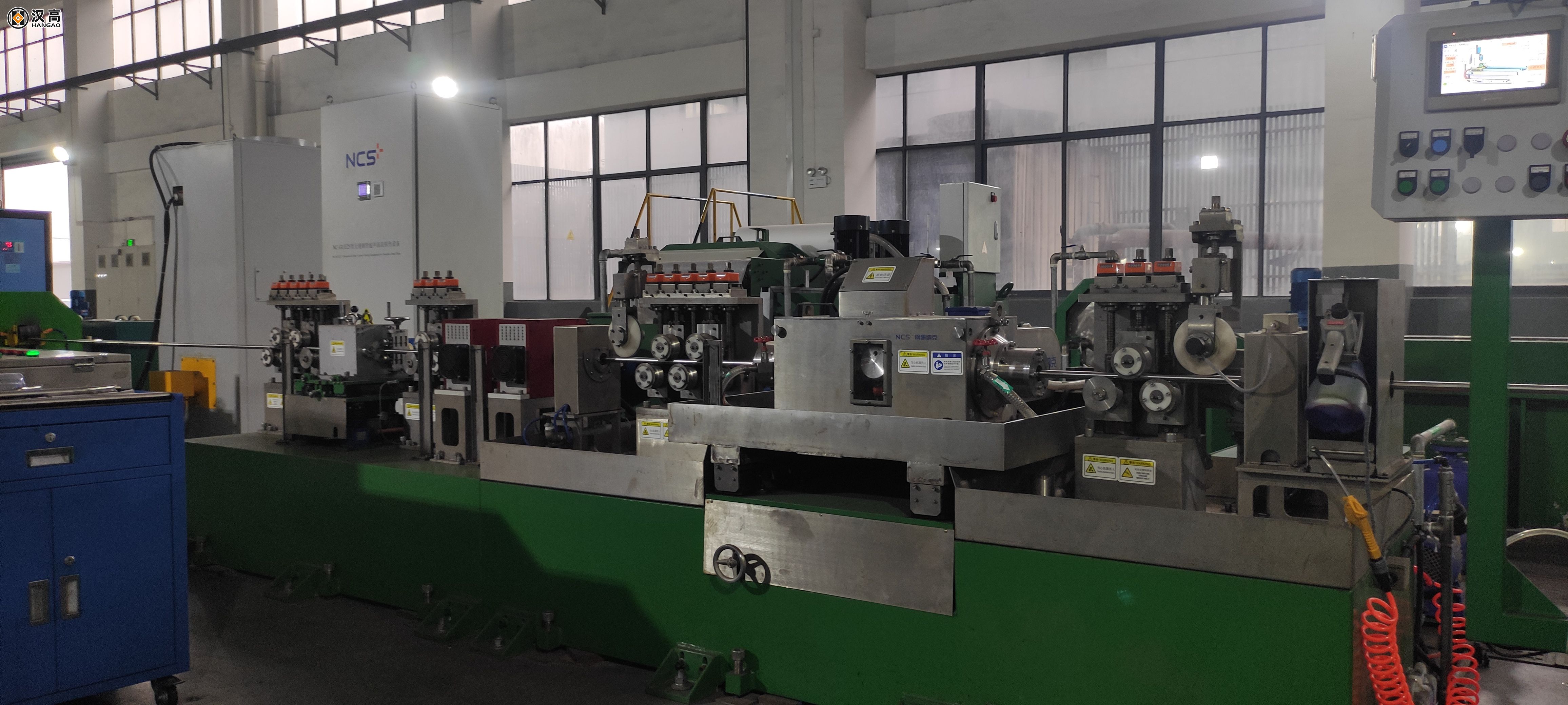

Tube mills are designed to manufacture round, square, or rectangular tubes and pipes from coiled steel strips. The operation involves uncoiling the steel strip, forming it into a tube shape, welding the edges, and then sizing and cutting the tube to the desired length. The efficiency and quality of the final product depend on various factors, including the design of the tube mill, the material properties of the steel strips, and the welding techniques used.
Key Components of Tube Mills
The main components of a tube mill include:
– Uncoiling Station: Uncoils the steel strip from a coil.
– Forming Section: Shapes the flat strip into a tube.
– Welding Section: Joins the edges of the tube using welding techniques.
– Sizing Section: Sizes the tube to the desired diameter.
– Cutting Section: Cuts the tube to the required length.
Importance of Welding in Tube Mill Operations
Welding is a critical operation in tube mills as it determines the integrity and strength of the final product. The quality of the weld joint affects the mechanical properties of the tube, including its tensile strength, ductility, and resistance to corrosion. Therefore, selecting the appropriate welding technique is crucial for producing high-quality tubes that meet industry standards.
Types of Tubes and Their Applications
Tube mills produce various types of tubes, including:
– Structural Tubes: Used in construction and infrastructure projects.
– Mechanical Tubes: Used in manufacturing machinery and equipment.
– Oil and Gas Tubes: Used in the oil and gas industry for transportation of fluids.
– HVAC Tubes: Used in heating, ventilation, and air conditioning systems.
Each type of tube has specific requirements in terms of material properties and welding quality, which influences the choice of welding technique in tube mill operations.
2. Welding Techniques in Tube Mills
Tube mills primarily use two welding techniques: TIG (Tungsten Inert Gas) welding and plasma welding. Both methods have their unique advantages and are chosen based on the specific requirements of the tube being produced.
TIG Welding: Advantages and Limitations
TIG welding, also known as gas tungsten arc welding (GTAW), uses a non-consumable tungsten electrode to produce the weld. The weld area is protected from contamination by an inert gas, typically argon or helium.
Advantages:
– High-quality welds: TIG welding produces clean, strong, and precise welds with minimal spatter.
– Versatility: It can be used on a wide range of materials, including stainless steel, aluminum, and copper alloys.
– Control: Provides excellent control over the heat input and weld pool.
Limitations:
– Speed: TIG welding is slower compared to other welding methods, which can affect the productivity of the tube mill.
– Skill: Requires a high level of skill and experience from the operator.
Plasma Welding: Advantages and Limitations
Plasma welding is a variation of TIG welding that uses a constricted arc to produce a high-temperature plasma. This method is particularly suitable for welding thin materials.
Advantages:
– High welding speed: Plasma welding is faster than TIG welding, which can increase the throughput of the tube mill.
– Deep penetration: It provides deep penetration, making it ideal for thick materials.
– Fine control: Offers fine control over the weld pool and heat input.
Limitations:
– Equipment cost: Plasma welding equipment is more expensive than TIG welding equipment.
– Complexity: The process is more complex and requires more sophisticated equipment.
Factors Influencing the Choice of Welding Technique
The choice between TIG and plasma welding depends on various factors, including:
– Material type and thickness: Thicker materials may require plasma welding for deeper penetration.
– Required weld quality: For high-quality, precise welds, TIG welding may be preferred.
– Production speed: If higher production speed is required, plasma welding may be the better option.
– Cost considerations: The cost of equipment and operational costs may influence the choice of welding technique.
3. Impact of TIG and Plasma Welding on Tube Mill Performance
The performance of tube mills is significantly impacted by the choice of welding technique. This section explores how TIG and plasma welding affect various aspects of tube mill operations.
Weld Quality and Its Importance
The quality of the weld joint is crucial for the structural integrity of the tube. High-quality welds are characterized by:
– Absence of defects: Defects such as porosity, cracks, and undercut can weaken the weld joint.
– Uniformity: Consistent weld bead shape and size ensure uniform mechanical properties.
– Minimal distortion: High-quality welds minimize distortion of the tube during the welding process.
Impact on Production Speed and Efficiency
The choice of welding technique can significantly impact the production speed and efficiency of the tube mill:
– TIG welding, while producing high-quality welds, is slower and may reduce the overall production speed.
– Plasma welding, on the other hand, offers higher welding speeds, increasing the throughput of the tube mill.
– Improved efficiency can lead to cost savings and higher profitability for tube manufacturers.
Energy Consumption and Cost Implications
Energy consumption is a critical factor in the operational cost of tube mills:
– TIG welding typically consumes more energy due to its slower welding speed and higher heat input.
– Plasma welding, despite its higher equipment cost, can be more energy-efficient due to its faster welding speed and lower heat input.
– Reducing energy consumption not only lowers operational costs but also minimizes the environmental impact of tube mill operations.
Effect on Mechanical Properties of Welded Tubes
The welding technique used in tube mills affects the mechanical properties of the welded tubes:
– TIG welding produces welds with fine microstructure and uniform mechanical properties, making it suitable for applications requiring high strength and ductility.
– Plasma welding provides deep penetration and can be used for welding thicker materials, but may result in coarser microstructure and varying mechanical properties.
– Understanding the impact of welding on mechanical properties is essential for ensuring that the welded tubes meet the required specifications and standards.
4. Conclusion
The choice of welding technique, whether TIG or plasma, has a significant impact on the performance of tube mills. While TIG welding offers high-quality welds and versatility, it may reduce production speed and increase energy consumption. Plasma welding, on the other hand, provides faster welding speeds and deep penetration but may result in varying mechanical properties. Manufacturers must carefully consider these factors when selecting a welding technique to optimize the performance of their tube mills and meet the demands of their specific applications.
